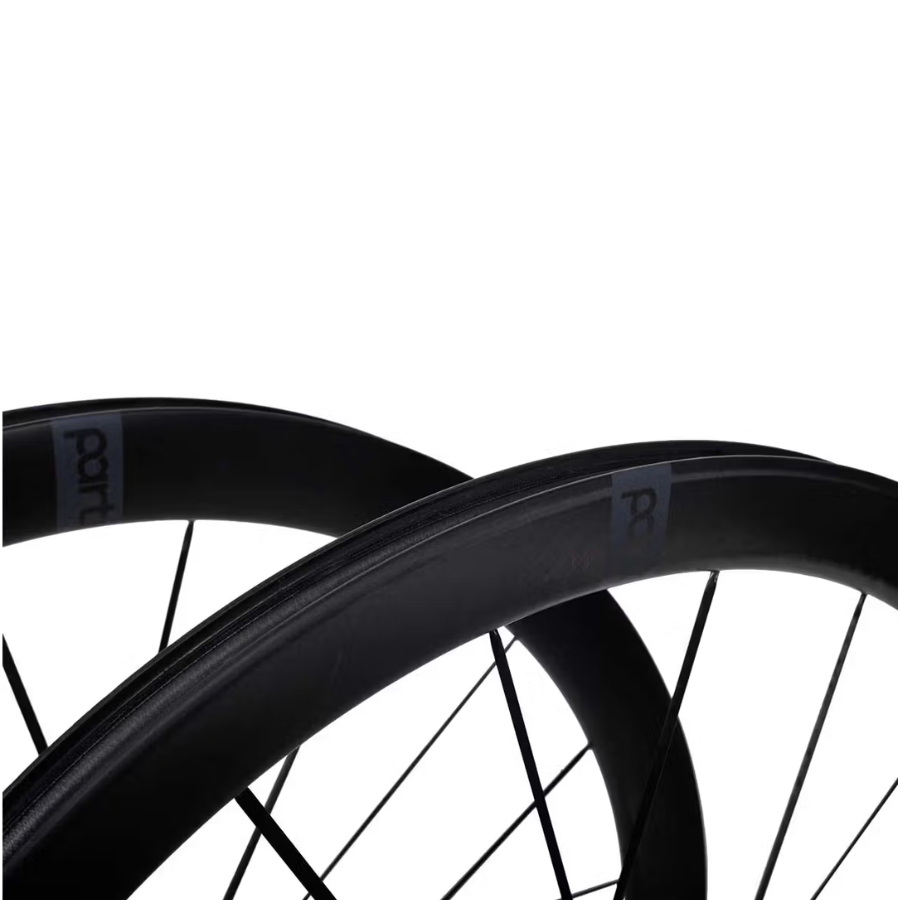

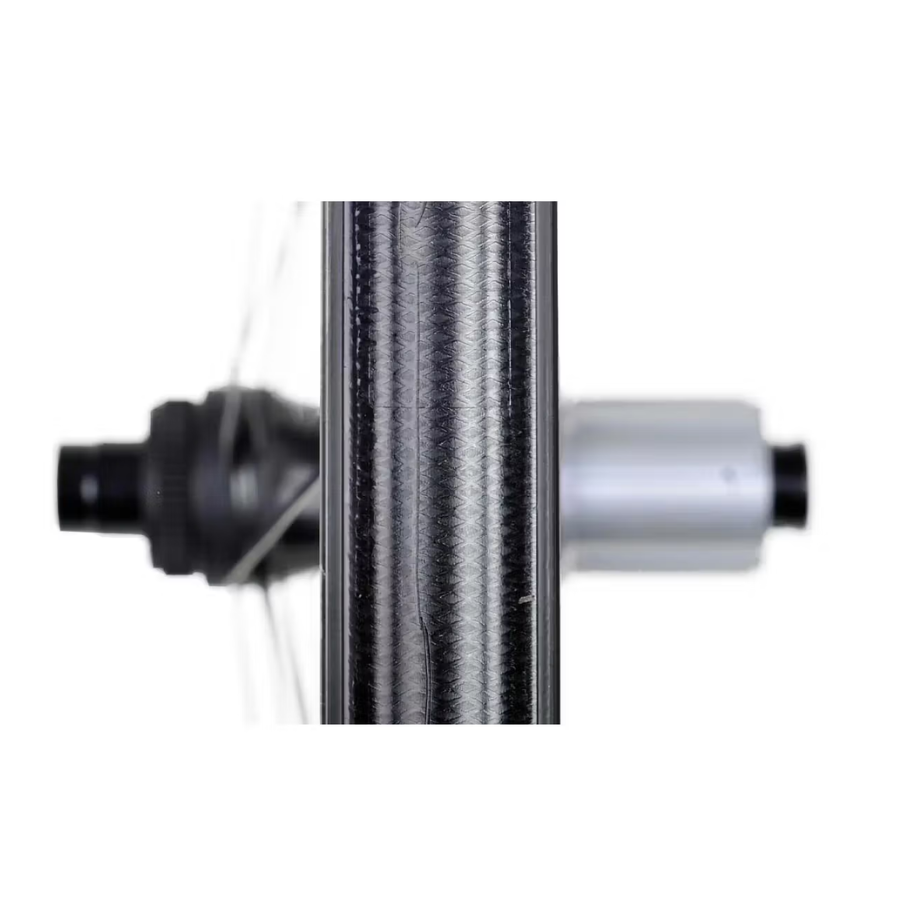

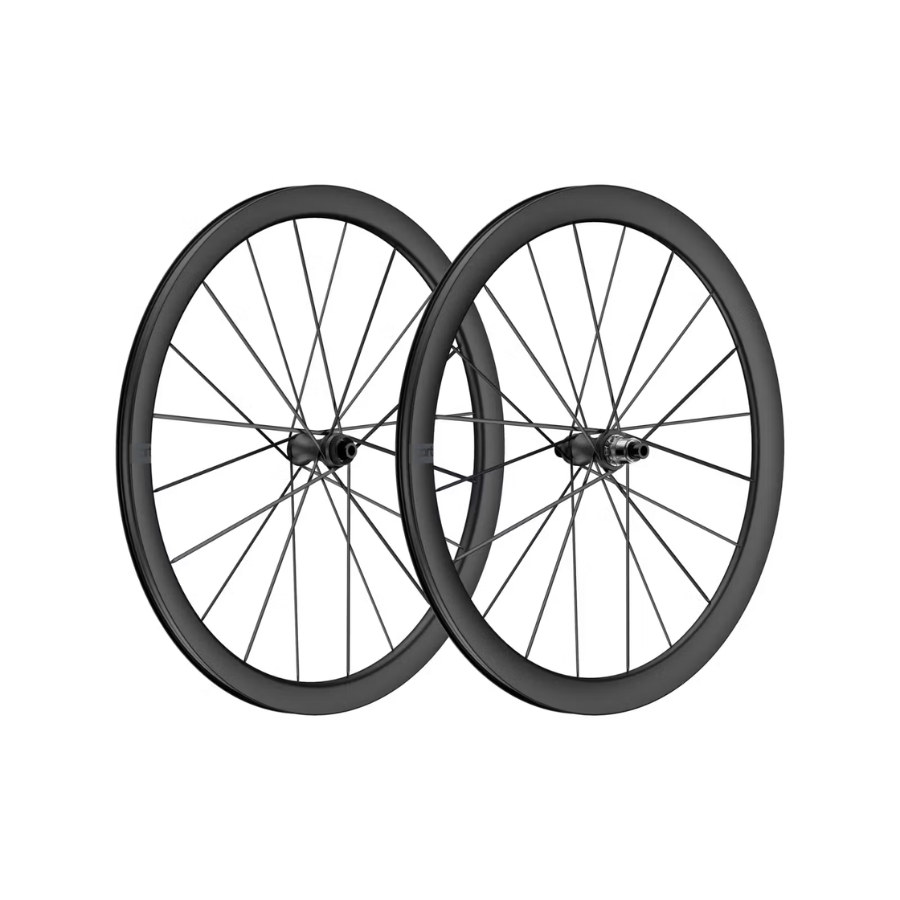

Partington R-SERIES Shimano Wheel Set

The MKII is the result of two years of focused and intense development, combining the latest in carbon materials design and manufacture to achieve a wheel that is the lightest in its class today.

The new MKII R-series is the ultimate performance road wheel for training and competition. With the highest lateral stiffness (~55/mm) in its class, the MKII delivers exceptional ride comfort and responsiveness for the discerning rider.

In-Tension Spoke Technology Partington spokes are produced using a highly guarded, proprietary manufacturing process. 108,000 continuous filaments carry the tension of the spoke as it exits the rim, wraps around the hub, and terminates back at the rim – maintaining load throughout, and minimising stresses at the spoke to hub junction.

Front 39

• Brakes Disc brake only integrated composite design

• Tyre Clincher or tubeless ready

• Ride High lateral stiffness (~55N/mm), exceptional ride comfort (radial compliance)

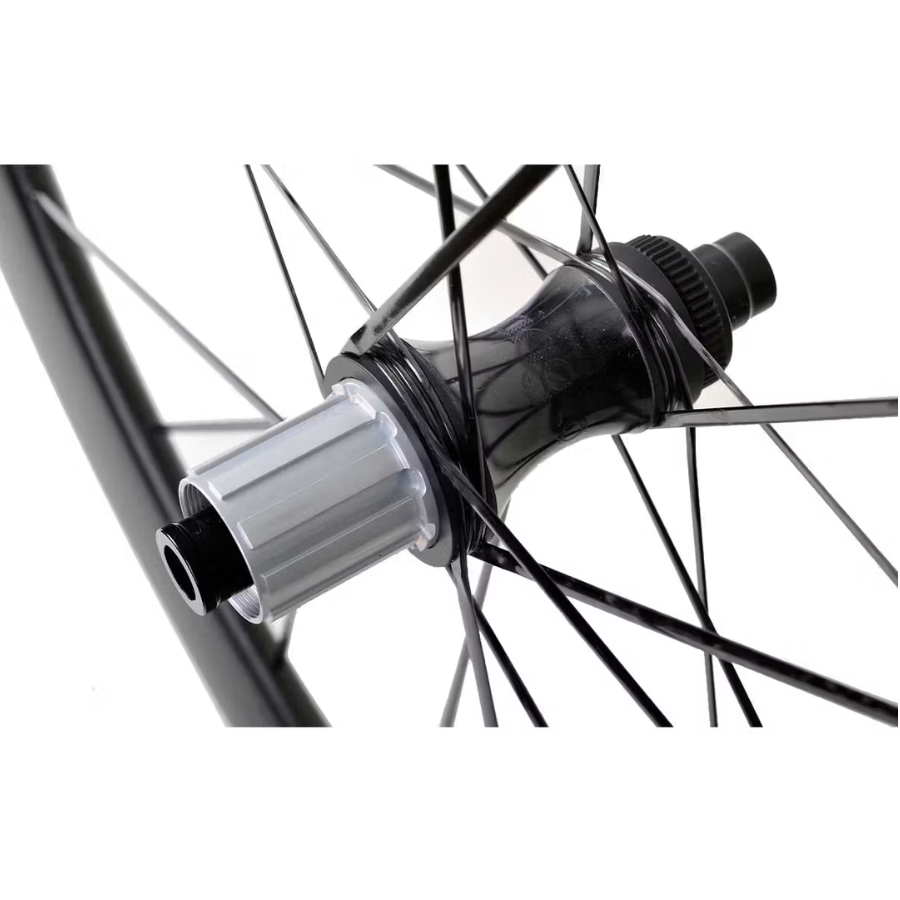

• Hub Hybrid composite hub shell, CeramicSpeed bearings

• Spokes Asymmetric bladed full carbon, rim-to-rim design – ‘20-hole rim’

• Axle 12mm through axle

• Depth 39mm

• External width 26.5mm

• Internal width 21mm

• Finish Matte-clear painted finish

• Weight 530g


Rear 44

• Brakes Disc brake only integrated composite design

• Tyre Clincher or tubeless ready

• Ride High lateral stiffness (~55N/mm), exceptional ride comfort (radial compliance)

• Hub Hybrid composite hub shell,CeramicSpeed bearings

• Spokes: asymmetric bladed full carbon, rim-to-rim design – ‘20-hole rim’

• Axle 12mm through axle

• Depth 44mm

• External width 26.5mm

• Internal width 21mm

• Finish Matte-clear painted finish

• Weight 630g

• Combined weight 1,160g
