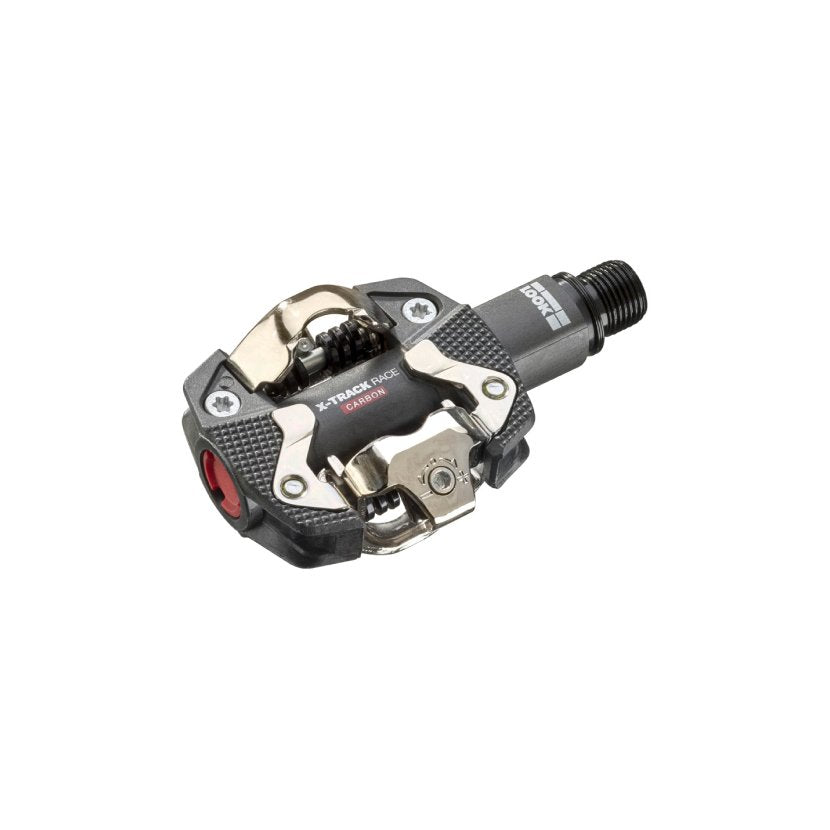

Look X-Track Race Pedals

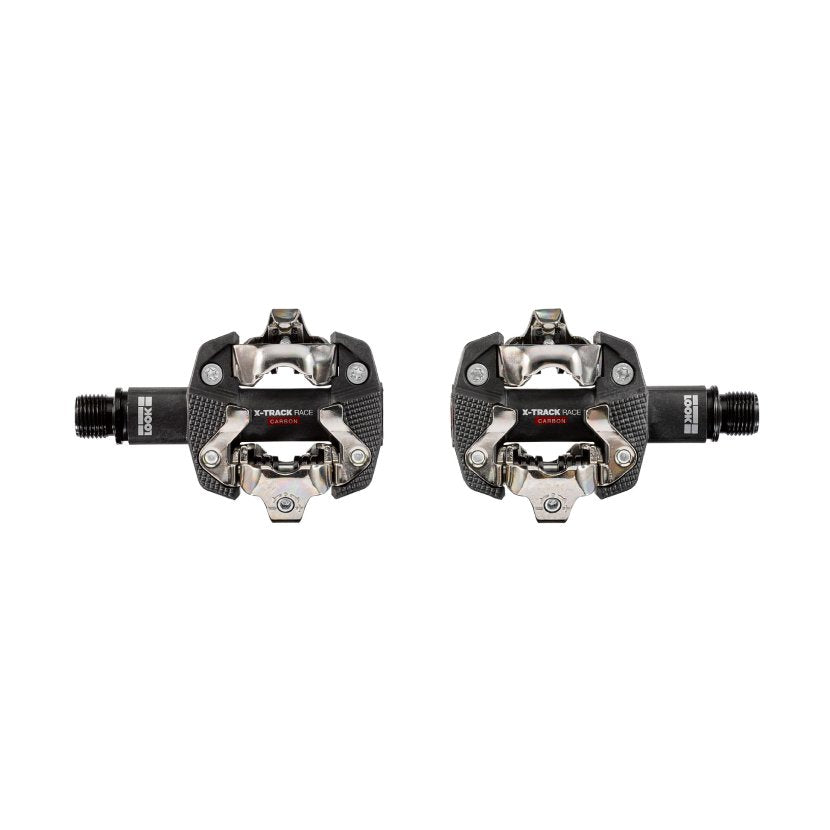

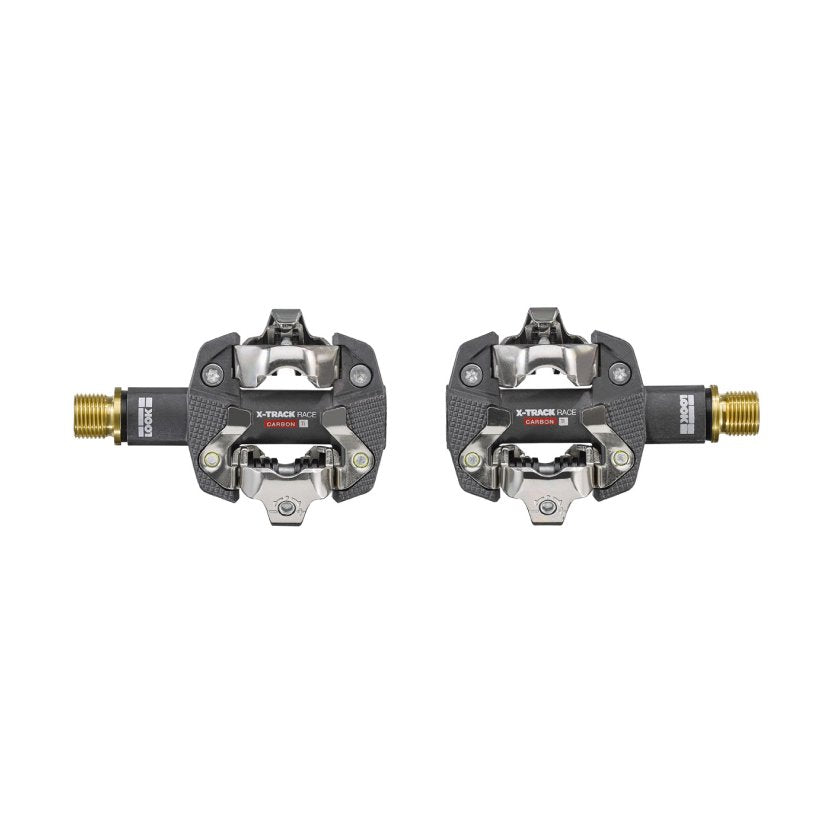

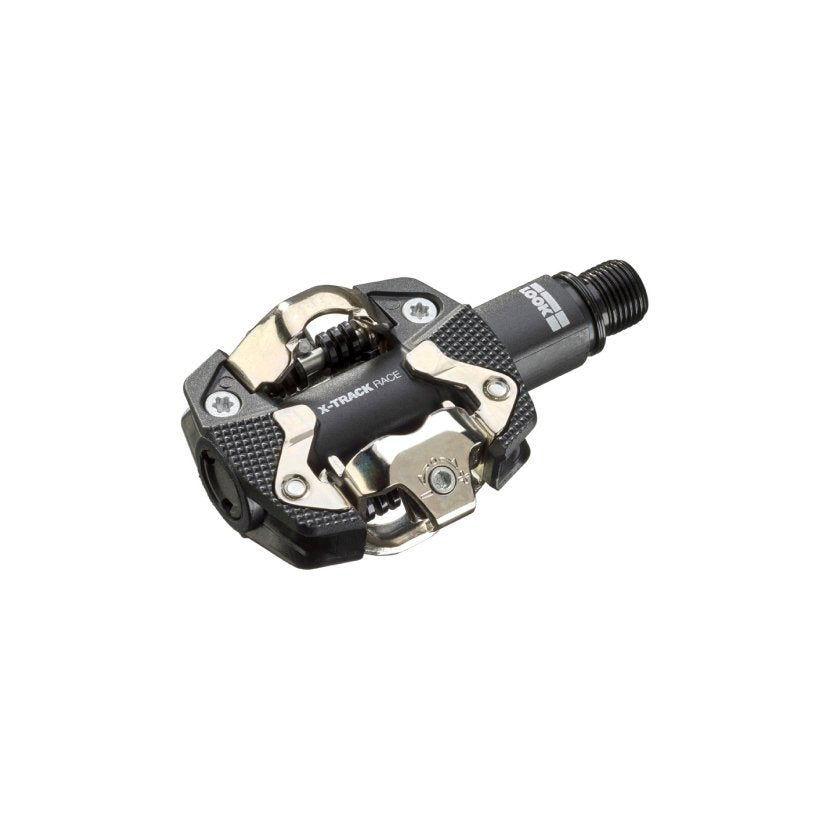

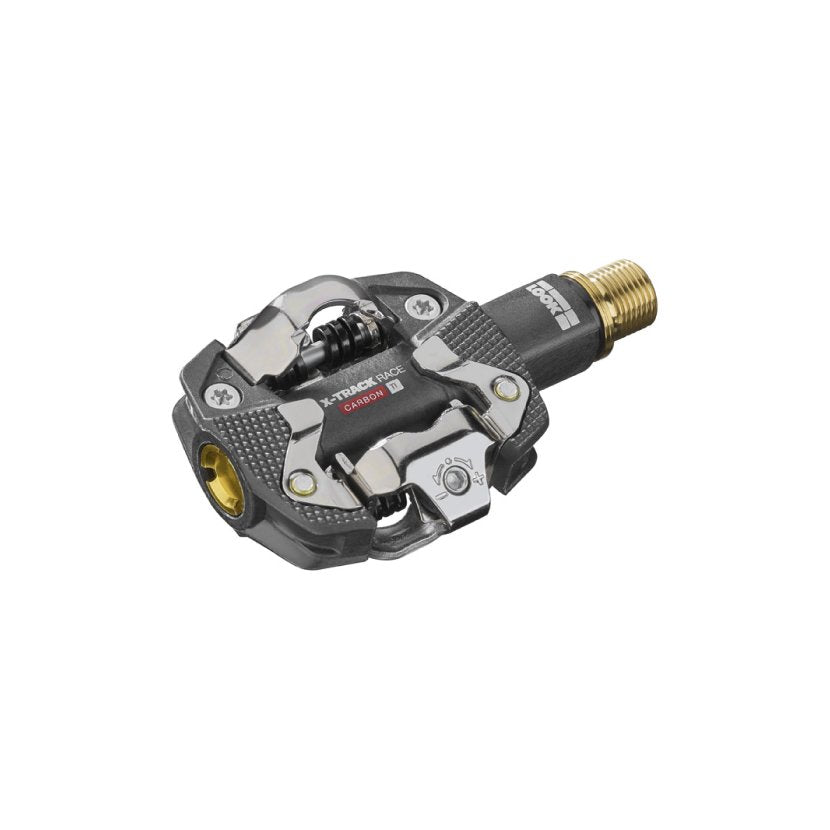

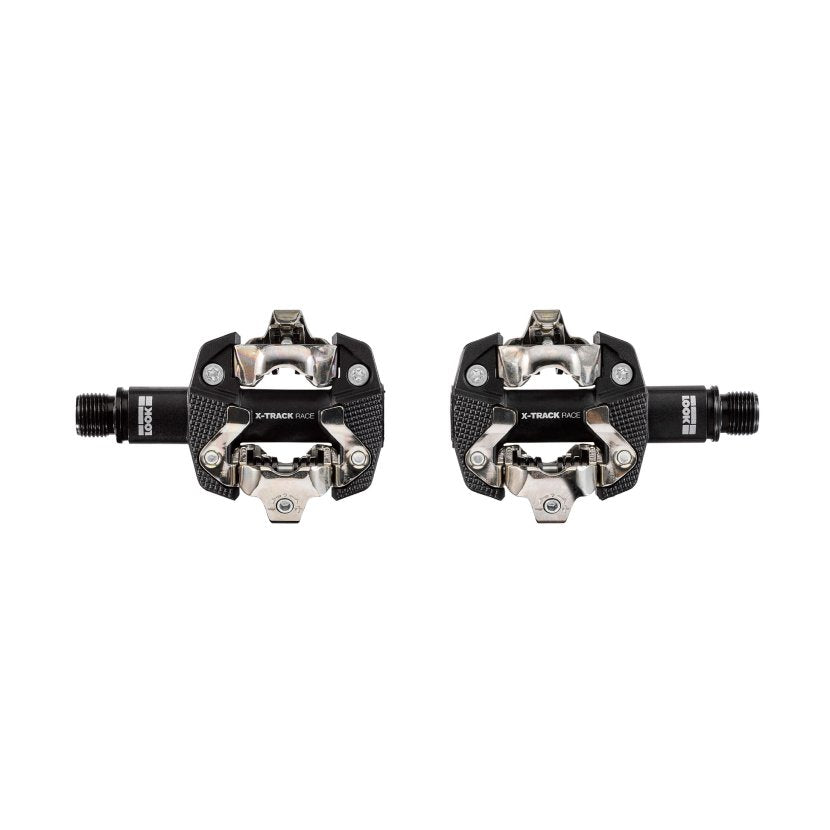

The LOOK X-Track series covers a full range of off-road SPD-compatible pedals, from the entry-level X-Track to the higher-performance X-Track Race Carbon and X-Track Race Carbon Titanium. The base X-Track features a robust aluminium body and a double-sealed Chromoly+ axle for smooth, reliable pedalling, while the Race Carbon and Race Carbon Titanium versions use a lightweight yet durable carbon pedal body paired with a larger 515mm² contact surface for improved power transfer between shoe and pedal. All three models offer adjustable clamping/release tension from 6–14Nm, letting riders fine-tune entry and exit feel to their preference. Every pedal in the range is compatible with Shimano's SPD cleat system and ships with the standard X-Track Cleat, with the X-Track Easy Cleat available separately for riders who want easier engagement and release.

• Technology: X-TRACK platform
• Adjustable triggering/release hardness: 6–14 Nm (both sides)
• Height (axle + pedal plates): 16.8mm (10.7mm + 6.1mm)
• Pedal thread size: 9/16"
• Pedal Version: Clipless
• Activity: Cycling / MTB
• Model Year: 2026, Full Year Collection
• Shimano SPD-compatible

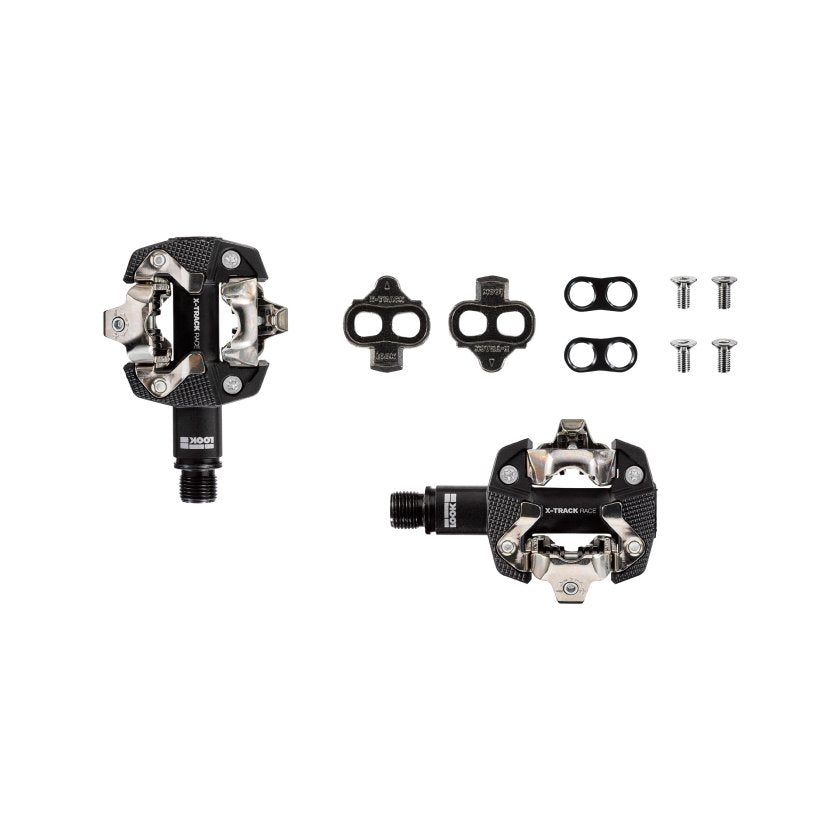

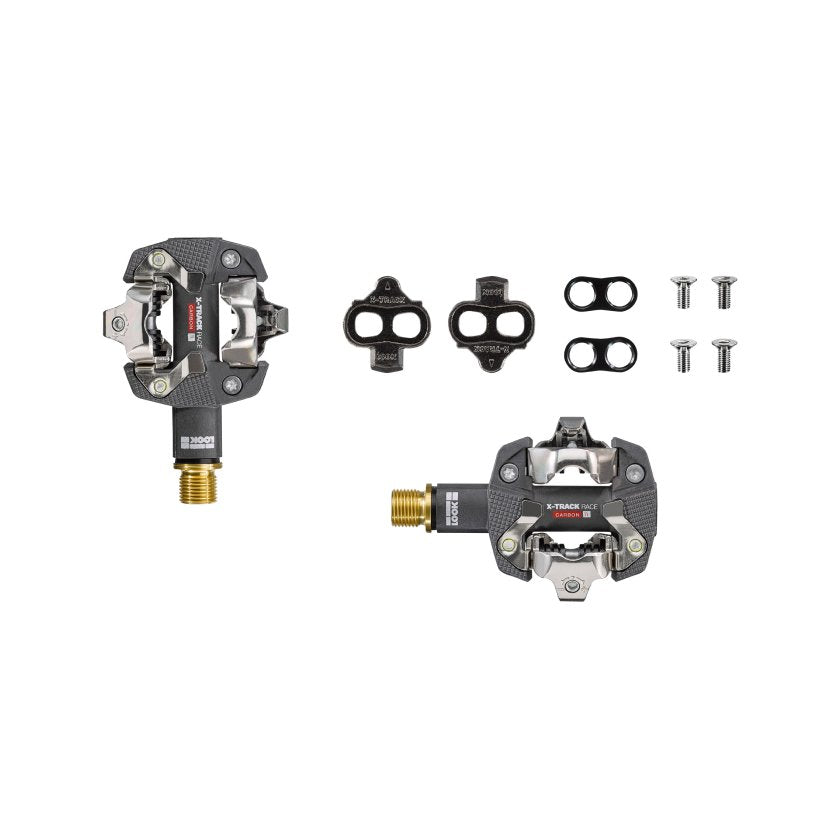

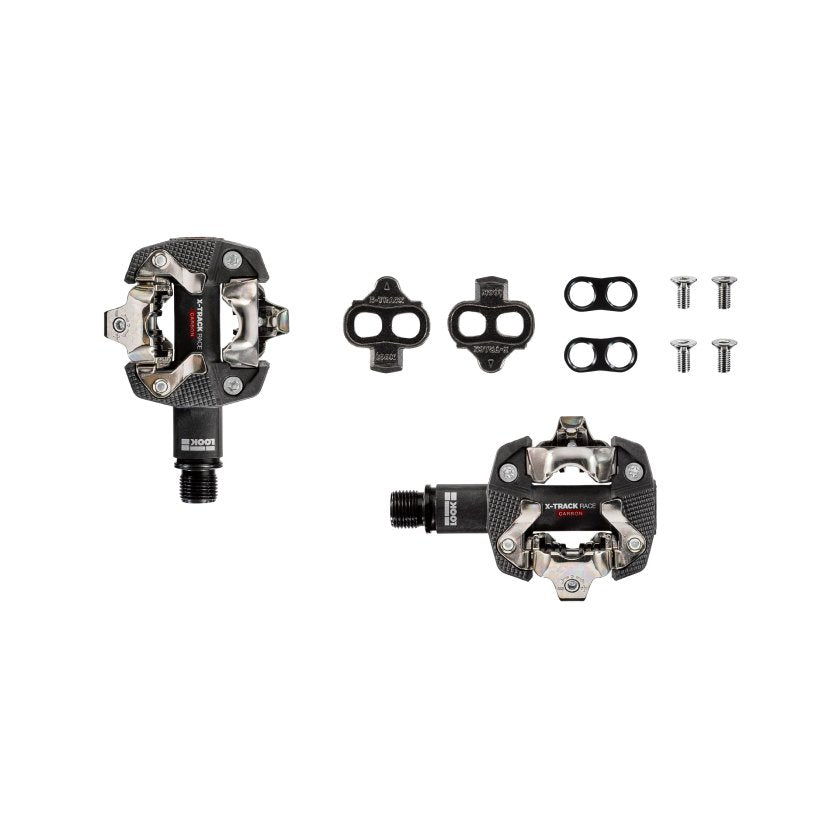

• X-Track Cleat included; X-Track Easy Cleat available separately for easier entry/exit

SPECIFICATIONS

• Color: Dark-Grey, Black, Black

• Pedal Body Material: Aluminium, Carbon Composite, Carbon (CFRP)

• Pedal Axle Material: Steel, Titanium

• Support/Layup Material: Chromoly

• Contact/Supporting Surface: 350mm², 515mm², 515mm²

• Contact/Support Width: 57mm, 60mm, 60mm

• Platform Size: 57 x 6.14mm, 60 x 8.58mm, 60 x 8.58mm

• Weight (per pedal): 200g, 175g, 145g
