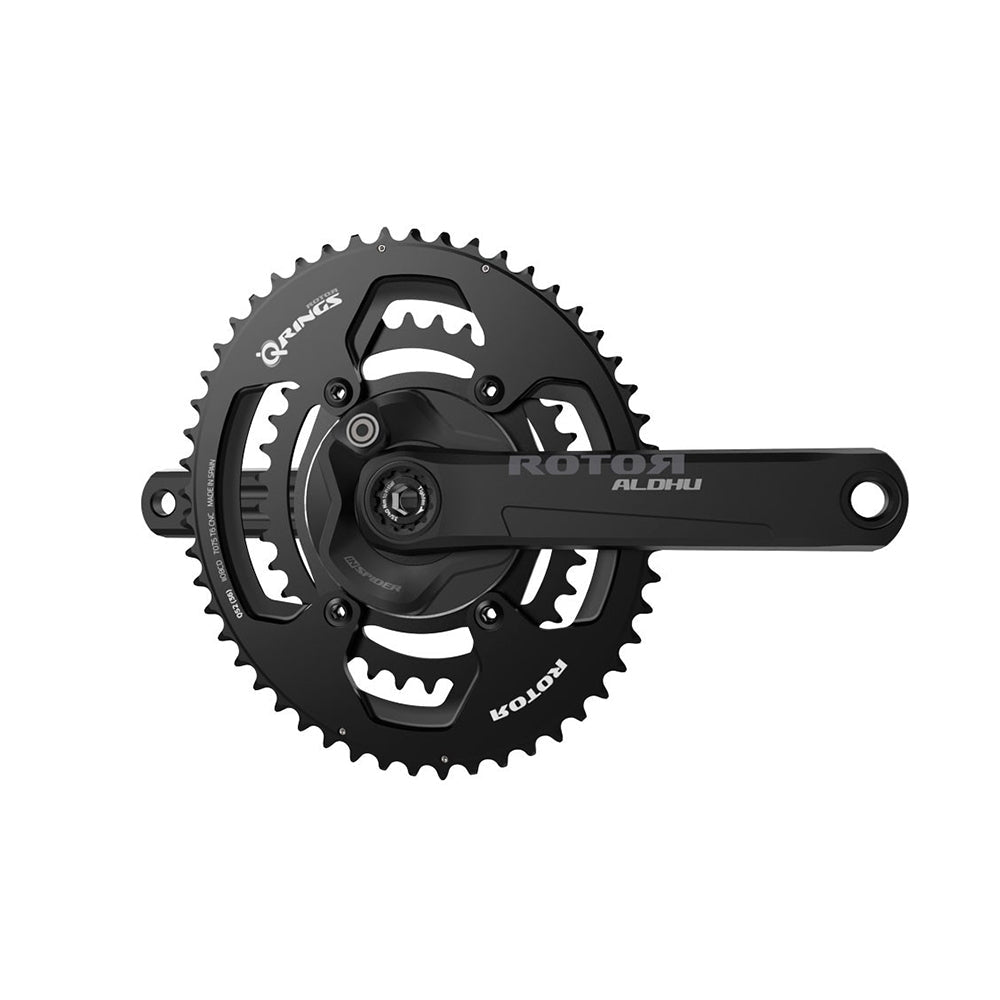

Rotor Inspider Aldhu 24 Carbon R52/36 SH12s 170

Price:
AED 5,199

Option 52/36-170mm


INSpider is a powermeter for all kind of bikes, for all kind of cyclists. INspider is a lightweight spider integrated powermeter that delivers a reliable, versatile and advanced watt measurement system. It is compatible with our Q RINGS® oval rings & all ROTOR modular cranks, both 1x and 2x, Road and MTB systems.

INspider has rechargeable battery with coated electronics and strong sealing for water resistance to measure power from inside the spider. It samples combined left-right data to precisely record power output, cadence, TORQUE 360, Optimum Chainring Angle (OCA) & a recommendation of Optimal Chainring Position (OCP).



  • Weight: 156g
  • Material: 100% CNC-machined, 7075 aluminum alloy
  • Battery Specifications: Rechargeable lithium-ion polymer + UBS cable
  • Estimated Battery Life: 200 hours riding time
  • Head Unit: ANT+™, Bluetooth® Smart; compatible ANT+™ head units: http://www.thisisant.com/directory
  • Wireless Technology: ANT+™ 2.4 Ghz/  Bluetooth® Smart
  • Data Transmitted: Power, cadence, balance via standard ANT+™ protocol and Bluetooth® Smart. Combined pedal analysis using Optimum Chainring Angle (OCA) and TORQUE 360 metrics in the User Software environment and the ROTOR Power app for smartphones
  • Strain Gauges: 4 pairs
  • Measurement Type: Both legs
  • Axle Width: 24mm, 30 mm
  • Water Resistance: IPX7
  • Software: ROTOR 2INpower app, ROTOR 2INpower User Software
  • Analysis Software: Trainingpeaks.com/ROTOR
  • Compatibility: RINGS: 110BCD x 4 arms rings. Q-RINGS® Oval rings & Round rings. CRANKS: ALDHU, VEGAST, ALDHU 24, RHAWK, RRAPTOR, KAPIC, KAPIC CARBON
  • Discipline: Cyclocross, MTB, Road, Triathlon
CHAINRINGS (52/36)

Round BCD110x4 chainrings compatible with all ROTOR cranks using BCD110x4 spider or INspider power meter. In addition, these chainrings are also compatible with Shimano® Dura-Ace® FC-9100 and Ultegra® FC-8000 cranks offering fast and precise shifting, while keeping weight very low.

ROTOR round chainrings come to complete the chainring range for those cyclists who have not yet decided to try Q RINGS oval chainrings.

When you are looking for speed, functionality and lightness, the components of your bike have to reflect these needs.

  • Sizes: 55/44  |  55/42  |  54/39  |  53/39  |  52/36  |  50/34  |  46/36
  • BCD: 110x4
  • Weight: 120.5 g (50/34T)  |  90 g (50T)  |  30.5 g (34T)
  • Chainline: 43.5 mm (using standard axle). 46 mm (using offset axle)
  • Material: 7075-T6 aluminum alloy 100% CNC-machined
  • Cranks compatible: All ROTOR cranks using spider BCD 110x4. All ROTOR cranks using INspider power meter. Shimano® Dura-Ace® FC-9100. Shimano® Ultegra® FC-8000
  • Groupsets compatible: Shimano® 11s & 10s. SRAM® 11s
  • Chains compatible: 11s chains
  • *Cranks arms, axle, chainring bolts, spider & power meter not included.



CARBON CRANKS (170mm)


Settings for everyone. Never has a crankset - like the ALDHU® Carbon crank- offered such wide configurations to meet the different preferences / needs of each individual cyclist.

Combine the cranks arms with different types of spiders, chainrings and axles. Looking for a power meter? Then choose the INspider, or you can also add it in the future; this is the main advantage of the the modularity of ROTOR cranksets.

In short, a solution that will adapt to your needs without having to replace the complete set.

  • Weight: 260 g (172.5 mm - only crank arms)
  • Sizes: 155 mm / 165 mm / 170 mm / 172.5 mm / 175 mm
  • Q-Factor: 147 mm (standard axle) |152 mm (offset axle)
  • Chainline (2X): 43.5 mm (standard axle) |46 mm (offset axle)
  • Chainline (1X): 44.5 mm (standard axle) |47 mm (offset axle)
  • Material: Carbon
  • Compatibility: BSA30, ITA30, BB30 bearing kit, PRESS FIT 4630, UBB4630, BB386, PRESS FIT 4130
  • *Chainrings, spider, power meter and axle are not include in the price.



AXLE 30mm Standard:


Our 30mm axle features a cleverly designed spline interface when mounted to the spider or Direct Mount chainrings delivers a robust yet smooth engagement allowing you to maximise the efficiency in transmission of power in your pedal rotation.

Combined with our new modular VEGAST® and ALDHU® cranks and Q RINGS oval chainrings or Round chainrings, the innovative axle includes refined OCP Mount technology so you can now adjust your optimal chainring position by precise one degree increments.

Engage your unique OCP to unleash a more efficient pedal stroke, reducing knee stress and possible injury.

OffSet and Standard versions available

  • Weight OffSet: 99 grms
  • Weight Standard: 96 grms
  • Q-Factor: 147mm (rim) / 152mm (disc)

INSpider is a powermeter for all kind of bikes, for all kind of cyclists. INspider is a lightweight spider integrated powermeter that delivers a reliable, versatile and advanced watt measurement system. It is compatible with our Q RINGS® oval rings & all ROTOR modular cranks, both 1x and 2x, Road and MTB systems.

INspider has rechargeable battery with coated electronics and strong sealing for water resistance to measure power from inside the spider. It samples combined left-right data to precisely record power output, cadence, TORQUE 360, Optimum Chainring Angle (OCA) & a recommendation of Optimal Chainring Position (OCP).



  • Weight: 156g
  • Material: 100% CNC-machined, 7075 aluminum alloy
  • Battery Specifications: Rechargeable lithium-ion polymer + UBS cable
  • Estimated Battery Life: 200 hours riding time
  • Head Unit: ANT+™, Bluetooth® Smart; compatible ANT+™ head units: http://www.thisisant.com/directory
  • Wireless Technology: ANT+™ 2.4 Ghz/  Bluetooth® Smart
  • Data Transmitted: Power, cadence, balance via standard ANT+™ protocol and Bluetooth® Smart. Combined pedal analysis using Optimum Chainring Angle (OCA) and TORQUE 360 metrics in the User Software environment and the ROTOR Power app for smartphones
  • Strain Gauges: 4 pairs
  • Measurement Type: Both legs
  • Axle Width: 24mm, 30 mm
  • Water Resistance: IPX7
  • Software: ROTOR 2INpower app, ROTOR 2INpower User Software
  • Analysis Software: Trainingpeaks.com/ROTOR
  • Compatibility: RINGS: 110BCD x 4 arms rings. Q-RINGS® Oval rings & Round rings. CRANKS: ALDHU, VEGAST, ALDHU 24, RHAWK, RRAPTOR, KAPIC, KAPIC CARBON
  • Discipline: Cyclocross, MTB, Road, Triathlon
CHAINRINGS (52/36)

Round BCD110x4 chainrings compatible with all ROTOR cranks using BCD110x4 spider or INspider power meter. In addition, these chainrings are also compatible with Shimano® Dura-Ace® FC-9100 and Ultegra® FC-8000 cranks offering fast and precise shifting, while keeping weight very low.

ROTOR round chainrings come to complete the chainring range for those cyclists who have not yet decided to try Q RINGS oval chainrings.

When you are looking for speed, functionality and lightness, the components of your bike have to reflect these needs.

  • Sizes: 55/44  |  55/42  |  54/39  |  53/39  |  52/36  |  50/34  |  46/36
  • BCD: 110x4
  • Weight: 120.5 g (50/34T)  |  90 g (50T)  |  30.5 g (34T)
  • Chainline: 43.5 mm (using standard axle). 46 mm (using offset axle)
  • Material: 7075-T6 aluminum alloy 100% CNC-machined
  • Cranks compatible: All ROTOR cranks using spider BCD 110x4. All ROTOR cranks using INspider power meter. Shimano® Dura-Ace® FC-9100. Shimano® Ultegra® FC-8000
  • Groupsets compatible: Shimano® 11s & 10s. SRAM® 11s
  • Chains compatible: 11s chains
  • *Cranks arms, axle, chainring bolts, spider & power meter not included.



CARBON CRANKS (170mm)


Settings for everyone. Never has a crankset - like the ALDHU® Carbon crank- offered such wide configurations to meet the different preferences / needs of each individual cyclist.

Combine the cranks arms with different types of spiders, chainrings and axles. Looking for a power meter? Then choose the INspider, or you can also add it in the future; this is the main advantage of the the modularity of ROTOR cranksets.

In short, a solution that will adapt to your needs without having to replace the complete set.

  • Weight: 260 g (172.5 mm - only crank arms)
  • Sizes: 155 mm / 165 mm / 170 mm / 172.5 mm / 175 mm
  • Q-Factor: 147 mm (standard axle) |152 mm (offset axle)
  • Chainline (2X): 43.5 mm (standard axle) |46 mm (offset axle)
  • Chainline (1X): 44.5 mm (standard axle) |47 mm (offset axle)
  • Material: Carbon
  • Compatibility: BSA30, ITA30, BB30 bearing kit, PRESS FIT 4630, UBB4630, BB386, PRESS FIT 4130
  • *Chainrings, spider, power meter and axle are not include in the price.



AXLE 30mm Standard:


Our 30mm axle features a cleverly designed spline interface when mounted to the spider or Direct Mount chainrings delivers a robust yet smooth engagement allowing you to maximise the efficiency in transmission of power in your pedal rotation.

Combined with our new modular VEGAST® and ALDHU® cranks and Q RINGS oval chainrings or Round chainrings, the innovative axle includes refined OCP Mount technology so you can now adjust your optimal chainring position by precise one degree increments.

Engage your unique OCP to unleash a more efficient pedal stroke, reducing knee stress and possible injury.

OffSet and Standard versions available

  • Weight OffSet: 99 grms
  • Weight Standard: 96 grms
  • Q-Factor: 147mm (rim) / 152mm (disc)
