Deviating from the planned track to discover that little bumpy side road to your left. Tackling the next descent with full speed and maximum control- despite the tarmac not meeting Formula-One criteria: This light rimset, available with a 23 or 32 mm rim height, strong spokes and a precise and reliable 350 hub, truly lives up to its full potential once the road surface gets worse- while still transforming every watt into forward traction. At any time.
SPLINE Technology
With straight pull spokes and the use of specific lacing, superlight hubs as well as high end rims featuring key DT Swiss technology, SPLINE® wheels make for a perfect training and racing partner.
Straightpull Technology
The term Straightpull refers to spokes with no bend at the head. This design allows for an ideal strength to weight ratio when compared to conventional spokes. Due to their more precise alignment and direct trajectory, straight-pull spoke technology creates a stiffer, more responsive wheel.
DT Pro Lock Technology
A patented liquid injected into the nipple thread allows for extremely durable wheel builds.
Sleeved
A precise sleeve connects the profile. This guarantees optimum resistance against all occurring loads. Sleeve jointing is the best alternative to SBWT® welded rims.
Ratchet System
This patented freewheel system uses precision ratchets, featuring extremely high load capacity and reliability. The no tool concept allows for an easy execution of routine maintenance.
Maximum system weight: 120kg!
Included in delivery: wheelset, tubeless tape, tubeless valves

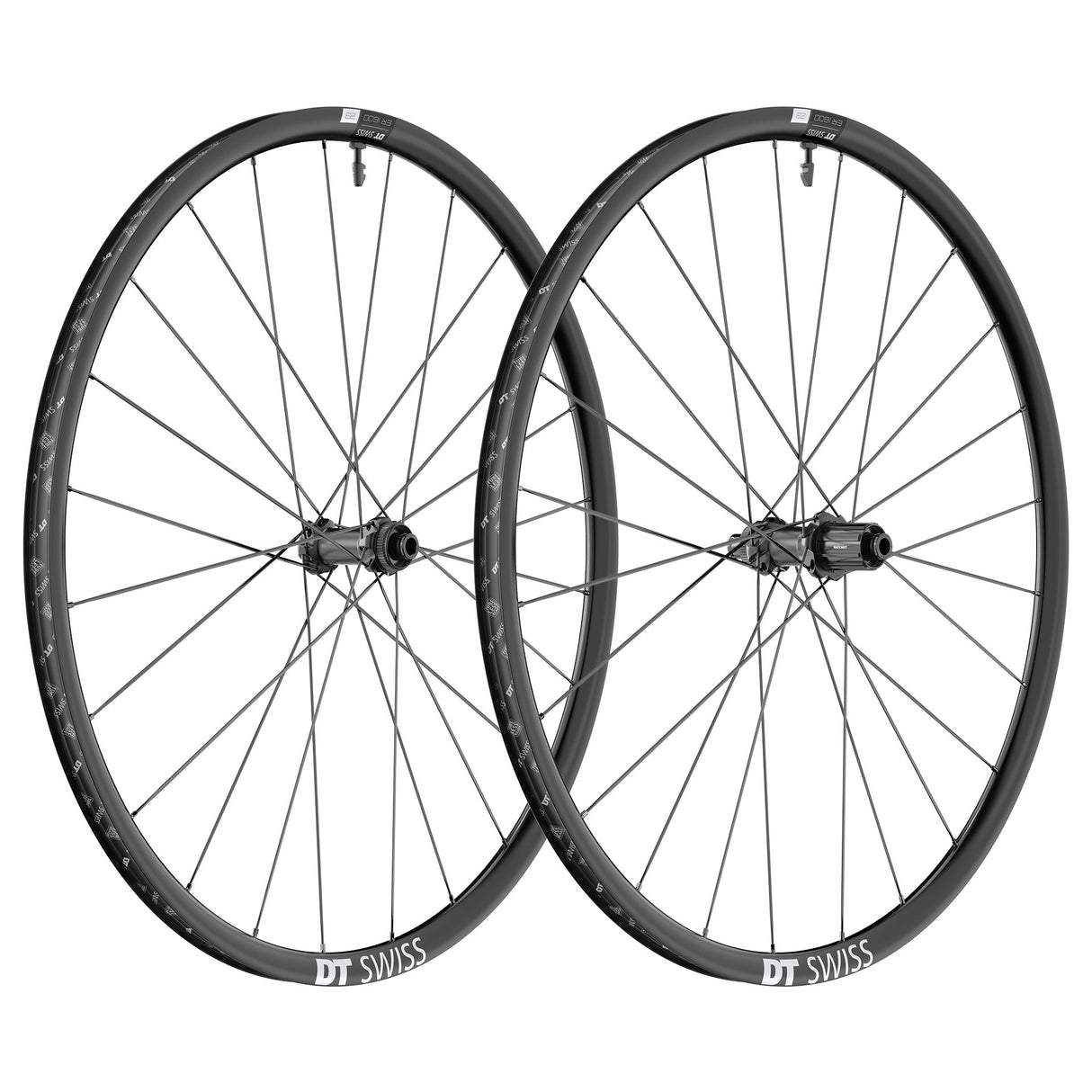

Product Name | DT Swiss ER 1600 SPLINE 23 Wheelset - 28" | Clincher | Centerlock - 12x100mm | 12x142mm - 350 Road - HG-L |
Manufacturer | DT Swiss |
Item Code | DTS659664 |
activity | Cycling |
material | Aluminium |
usage bikesport | Road Bike, Endurance |
hubs | 350 Straightpull with 36T Ratchet SL System |
spokes | DT aero comp® wide straightpull |
rims | Aluminum, sleeved rim joint | hooked bead | tubeless ready |
wheel size | 28" (622mm) |
axle standard | 12x100mm (FW), 12x142mm (RW) |
Wheel version | Wheelset, Wheelset 1300-1700g, Standard Wheel |
Freehub Body | HG L (Shimano 11/12s Road) |
braking system | Centerlock/AFS |
tire type | Wire Bead Tire, Folding Tire, Tubeless Ready |
ETRTO | 22-622 |
rim width | 26mm |
inner profile width | 22mm |
rim profile height | 23mm |
weight limit | 120kg |
nipples | DT ProLock® Squorx ProHead alu |
Model year | 2023 |
Collection | Full year |
Color | Black |
weight | 1673g |
manufacturer item code | WER1600AIDXSA21177 | WER1600NIDISA21178 |
Number of Spoke Holes | 24 |
Weight Source | Manufacturer |
Freewheel System | Ratchet |
