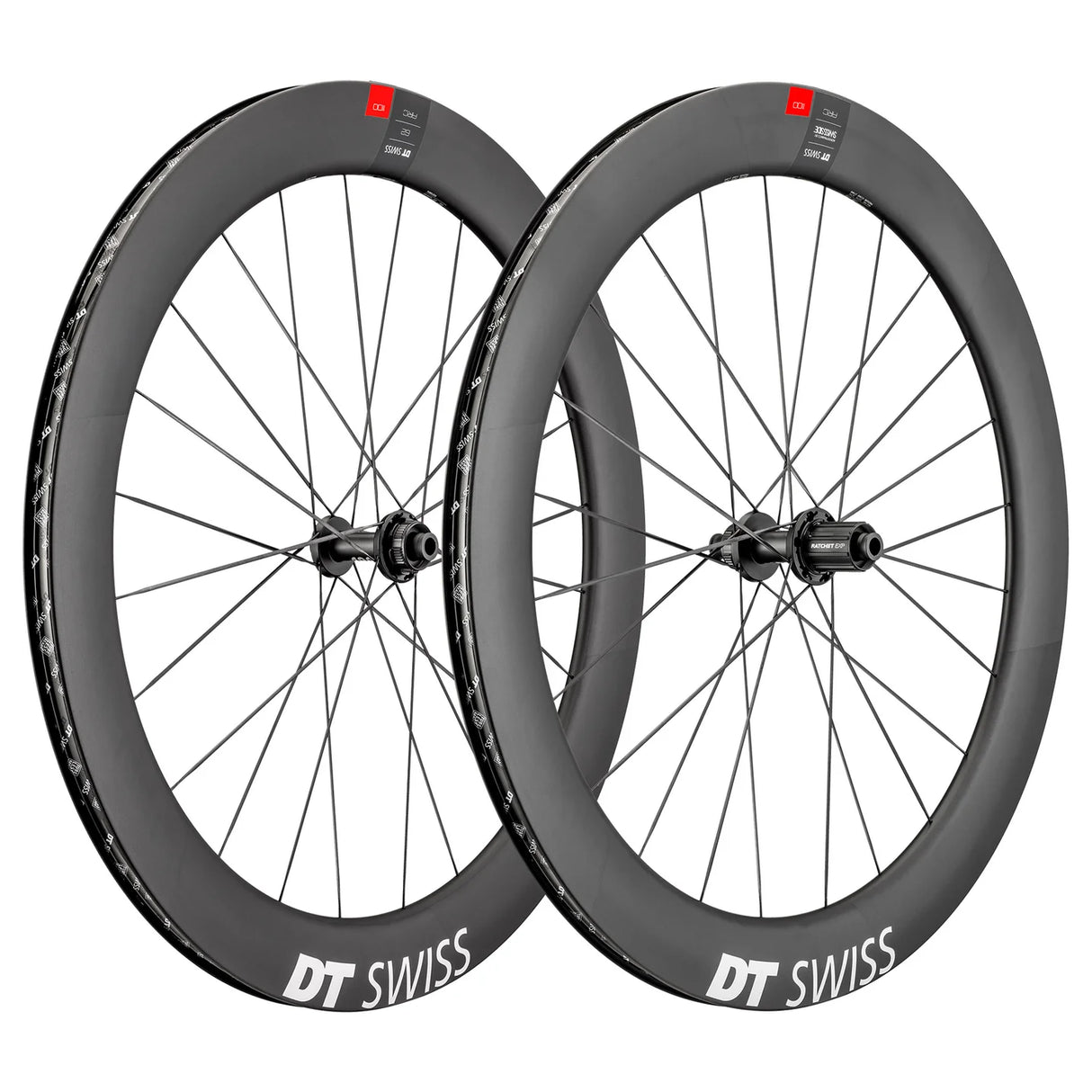

The latest generation of ARC 1100 DICUT wheels – available in disc brake version in four different rim heights 80 mm, 62 mm, 50 mm and 38 mm – was developed in cooperation with SWISS SIDE, leading expert in aerodynamic optimization. Consequently, the new AERO+ rim profile minimizes both aero drag and steering moment to improve its aerodynamic and controlling in even strong cross wind. Thus, it makes it easier for the rider to keep the aero wheel under control while taking advantage of the forward-pushing sailing effect. The wheel setup is completed by the new DT Swiss aero spokes in combination with the sleek 180 DICUT hub including ultra-light running SINC ceramic bearings.
-
Wheel Tire System: Now available as an aero-optimized wheel tire system (WTS) mounted with the new AERO 111 tire in the front.
-
RIM HEIGHT: Available in disc brake version in four different rim heights 80 mm, 62 mm, 50 mm and 38 mm.
-
RIM: Each rim is designed for a specific riding environment, from 38 mm ideal for big climbs, to 80 mm for all-out triathlons and time trials.
-
HUB: New aero 180 DICUT hubs with low-friction SINC Ceramic bearings.
- SPOKES: The latest generation of aerodynamically optimized spokes for lower rotational and translational drag.
ARC Rim Technology
DT Swiss is a disc fan: the greater freedom provided by the disc brake system gives the Swiss wheel specialists completely new possibilities in rim design. With the AERO+ concept, they have focused on the overall handling of the wheel. The two rim shapes V and U established in the racing bike industry become VU. The second generation of ARC wheels combines the shapes and achieves the tapered rim end and the more voluminous rim body – and thus the optimal aerodynamics.
More width = less rolling resistance → 20 mm inner width!
Wider tyres have a positive influence on rolling resistance. Due to the larger volume they have a wider contact area and can be ridden with less air pressure. As a result, the tyre deforms less than narrow tyres and the rolling resistance decreases. Rolling resistance is about more than just the forces that need to be applied to roll on different surfaces or to overcome obstacles. Wider rim widths and wider tyres support the handling characteristics such as traction and comfort, which are also important in the DT Swiss concept. The second generation with 20 mm rim width sets the benchmark at 25mm at the front and 25 or 28mm tyres at the rear.
Reinvented Spokes — DT Swiss Spoke Technology
The new shapes of DT aerolite II and DT aero comp II spokes have a significantly positive influence on the rotational air friction. In combination with the optimal alignment of the T-Head spokes, this results in a higher overall speed. Due to the flat forging process of the spokes, the steel is more highly compressed, which leads to increased tensile strength. This makes them lighter at the same tensile strength.
Cooperation with Swiss Side
For more than five years DT Swiss has been working with Swiss Side, the leading aerodynamics experts in the road bike industry. With more than 20 years of technical experience in Formula 1 aerodynamics and more recently in world-class cycling innovations, Jean-Paul Ballard (aka JP) is the mastermind behind Swiss Side.
The latest generation of ARC 1100 DICUT wheels was developed in cooperation with SWISS SIDE, leading expert in aerodynamic optimization. Consequently, the new AERO+ rim profile minimizes both aero drag and steering moment to improve its aerodynamic and controlling in even strong cross wind.

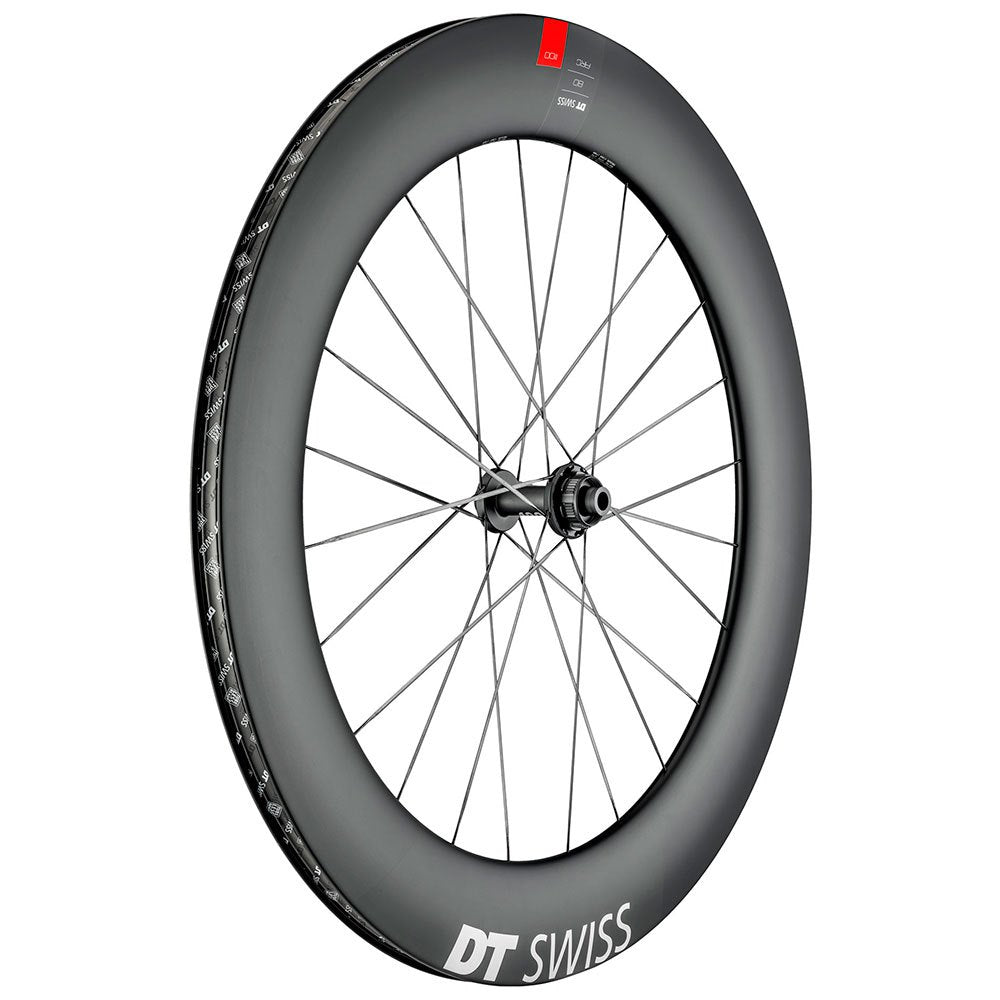

Wider means faster: DT Swiss ARC Disc 1100 Dicut Carbon with 80mm rim hight
Thus, it makes it easier for the rider to keep the aero wheel under control while taking advantage of the forward-pushing sailing effect. The wheel setup is completed by the new DT Swiss aero spokes in combination with the ultra-light running SINC ceramic bearings.
- Use: Road / TT / Triathlon
- Model: ARC 1100
- Wheel size: 28"
- Rim diameter: 622mm (700c)
- Rim type: Clincher
- Tubeless ready: ✔
- Rim height: 80mm
- Inner width: 20mm
- Outer width: 32mm
- Hub axle system: 12 x 100mm (Steckachse)
- Recommende tyre: 25mm
- Hub type: 180 Dicut
- Hub bearings: SINC Ceramic bearings
- Holes/Spokes: 2-cross (1:1)
- Spokes: DT aerolite II
- Nipples: Internal DT Pro Lock® Aluminum
- Valve hole: Presta / SV Ø 6.5 mm
- Brake system: Disc Center Lock
- Max recommended system weight: 110kg (body weight + bike + equipment)
- Rim: Carbon
- Hub: Aluminum
- Spoke: Stainless steel
- Nipple: Aluminum
- Weight: 820g
The latest generation of ARC 1100 DICUT wheels was developed in cooperation with SWISS SIDE, leading expert in aerodynamic optimization. Consequently, the new AERO+ rim profile minimizes both aero drag and steering moment to improve its aerodynamic and controlling in even strong cross wind.
Wider means faster: DT Swiss ARC 1100 Dicut Carbon with 80mm rim hight
Thus, it makes it easier for the rider to keep the aero wheel under control while taking advantage of the forward-pushing sailing effect. The wheel setup is completed by the new DT Swiss aero spokes in combination with the sleek 180 DICUT hub including ultra-light running SINC ceramic bearings.
- Use: Road / TT / Triathlon
- Model: ARC 1100
- Wheel size: 28"
- Rim diameter: 622mm (700c)
- Rim type: Clincher
- Tubeless ready: ✔
- Rim height: 80mm
- Inner width: 20mm
- Outer width: 32mm
- Hub axle system: 12 x 142mm (Thru axle)
- Recommende tyre: 25mm, rear 25mm or 28mm
- Hub type: 180 Dicut
- Hub bearings: SINC Ceramic bearings
- Freehub system: 36T RATCHET EXP
- Freehub body: Shimano Road 9-/10-/11-speed
- Holes/Spokes: 2-cross (1:1)
- Spokes: DT aerolite II on non-drive side, DT aero comp II on drive side (T-head spokes)
- Nipples: Internal DT Pro Lock® Aluminum
- Valve hole: Presta / SV Ø 6.5 mm
- Brake system: Disc Center Lock
- Max recommended system weight: 110kg (body weight + bike + equipment)
- ASTM Classification: 1
- Rim: Carbon
- Hub: Aluminum
- Spoke: Stainless steel
- Nipple: Aluminum
- Freehub body: Aluminum
- Weight: 942g
