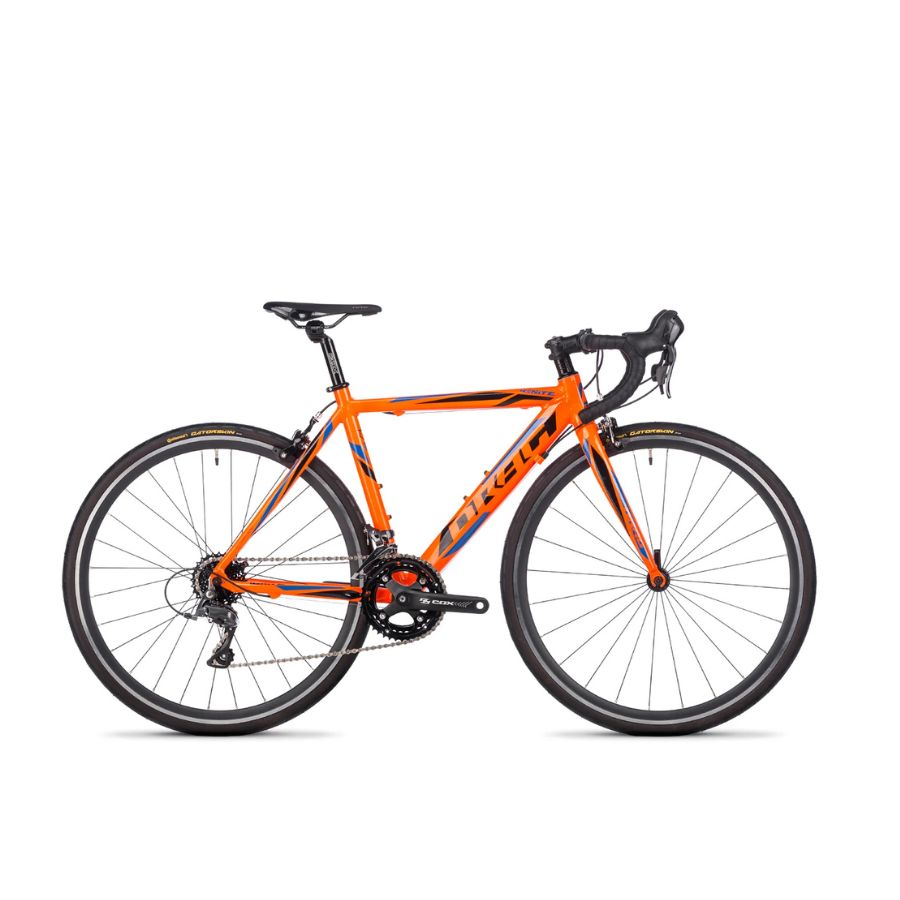

Drag Ignite Road Kids Road Bike

Road racing is fun for children, too. With this is mind, DRAG has created the junior racing bike IGNITE to fuel the passion of aspiring young riders who are too small for a classic racing bike. Our strategy was to combine the best features tested with our adult models with the geometry and comfort needed for junior racers.

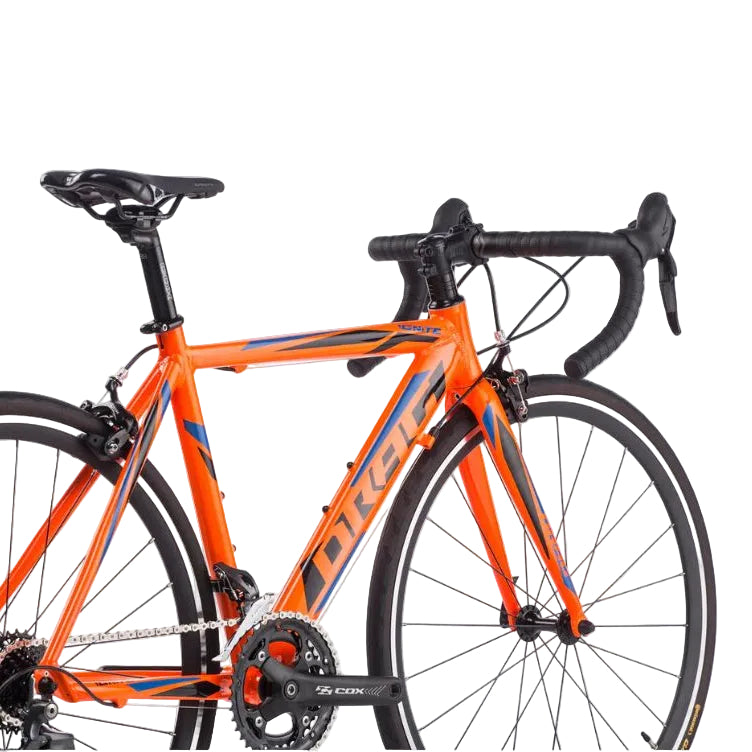

• FRAME: Ignite, Alloy Hydroformed

• COLOR: Orange/Black

• SIZE: 26” 440mm

• FORK: Alloy, Hydroformed

• HEADSET: COX Components ZS41/28.6 lZS41/40

• CRANKSET: COX KidFit Pro Alloy Crank, 42/34T, 152mm

• BOTTOM BRACKET: VP BC73 BSA, 68/113mm

• SHIFTERS: Microshift SB-R482, 2×8 Speed, Junior Hands Specific

• FRONT DERAILLEUR: Shimano Claris FD-R2000, clamp-on

• REAR DERAILLEUR: Shimano Claris RD-R2000 SS, 8-speed

• CASSETTE: Micro Shift CS0-H081, 8 speed, 12/28T

• CHAIN: Yaban S8, 8sp.

• PEDALS: Not Included

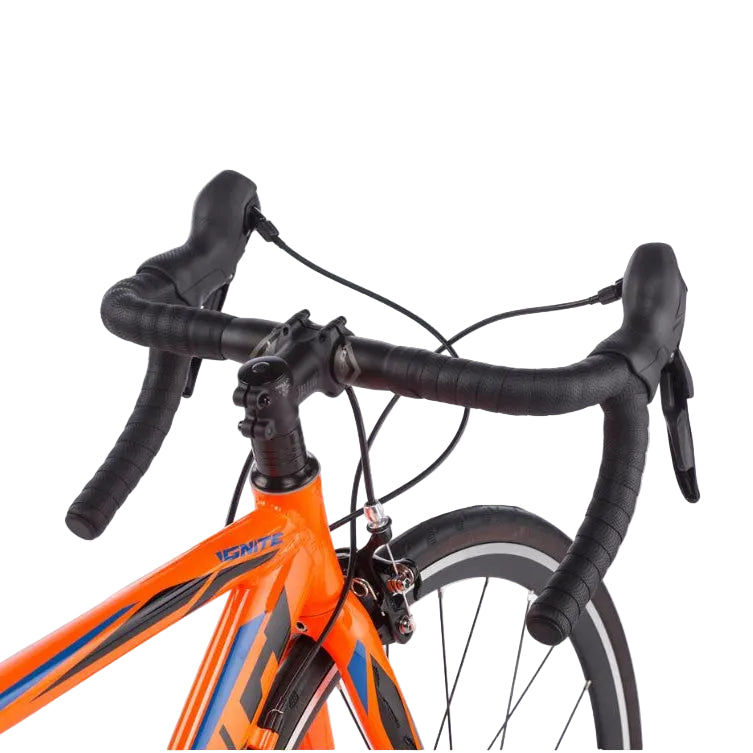

• HANDLEBAR: COX Flight SE, 135 mm drop, 90 mm reach

• STEM: COX Invert, 31.8 clamp

• BAR TAPE: COX Logo, Black

• GRIPS: COX Logo Bar Tape, Black

• BRAKES: COX Alloy, Dual Pivot

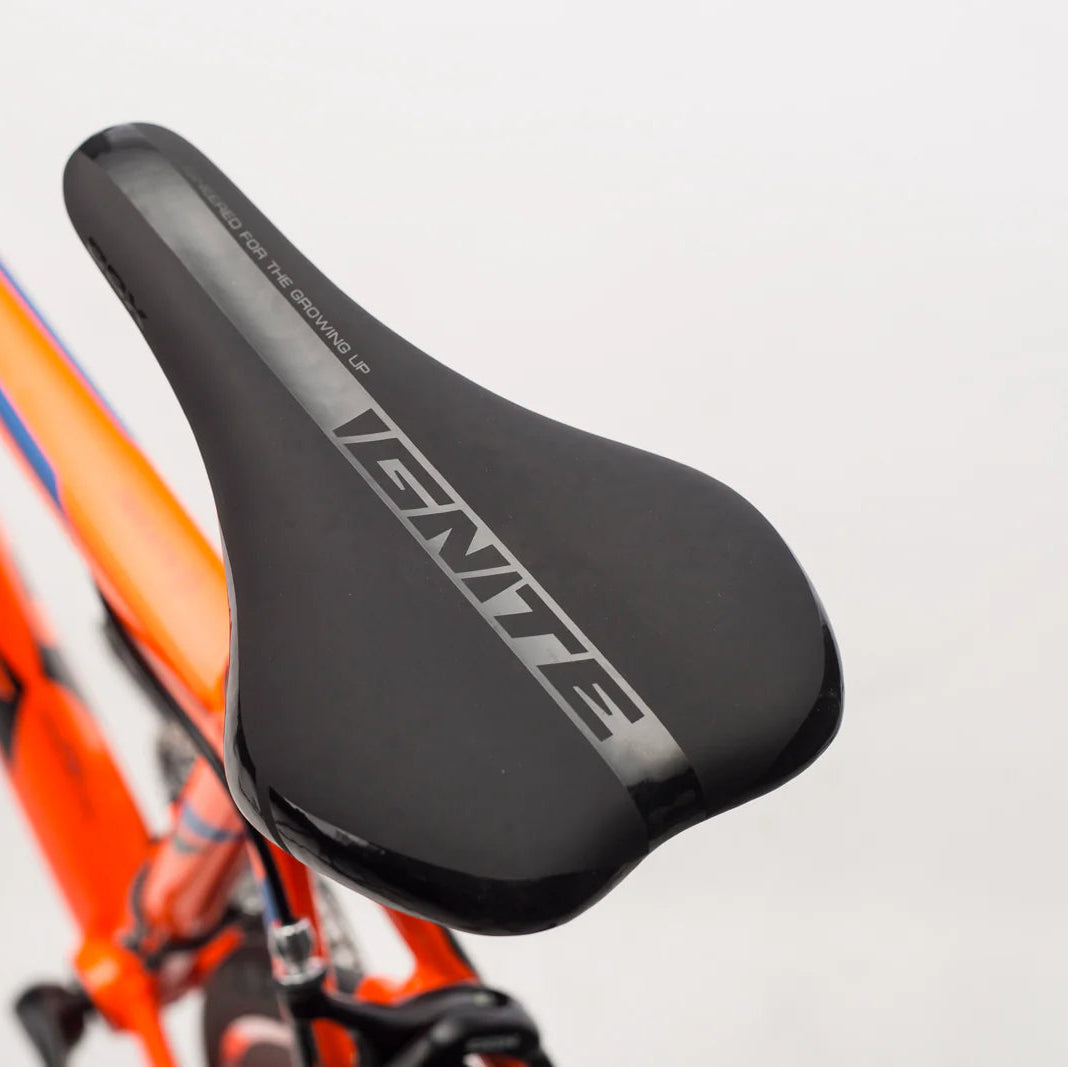

• SADDLE: COX Ignite, KidFit Pro

• SEAT POST: COX 6061 Seatpost

• SEAT POST CLAMP: Forged Alloy, Single Bolt 31.8mm

• WHEELS: DRAG Hand-built, Double Wall, Loose Bearings

• TIRES: Vee Tire Apache Chief 26×1.0 (25-559)

• WEIGHT: 9.58 kg

• Size: 440

• Seat Tube Length (ST): 440mm

• Top Tube Length (TT), Actual: 4 mm

• Bottom Bracket Drop (BD): 35mm

• Chainstay Length (CS): 365mm

• Seat Tube Angle (STA): 73.5°

• Head Tube Angle (HTA): 71°

• Wheel Base (WB): 873.3mm

• Head Tube Length (HT): 100mm

• Handlebar Width: 380mm

• Stem Length: 60mm

• Crank Length: 170mm
