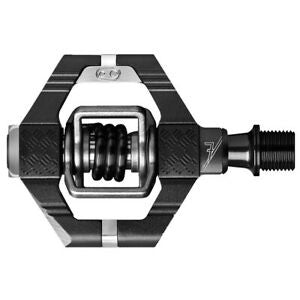

Crankbrothers Candy 7 Pedal

• Durable alloy body
• Durable cast steel wings
• Integrated traction pad technology to optimize the shoe/pedal interface (included)
• Ribbed body for better traction when unclipped
• Chamfered edges to reduce rock-strikes
• Hex alloy endcap and bashguard
• 4-sided entry / superior mud shedding
• Customizable float & release angle
• Premium bearings & double seal system

BODY MATERIAL
6061-T6 Aluminum

BODY DIMS (L X W)
67mm x 74mm

WING MATERIAL
17-4PH Stainless

SPINDLE LENGTH
52mm

INNER BEARING TYPE
Igus LL-glide bearing

OUTER BEARING TYPE
Enduro MAX cartridge bearing

ENDCAP
Hex alloy

SPINDLE MATERIAL
Forged SCM 435 Chromoly Steel

SPRING MATERIAL
300 series stainless steel

TRACTION PADS
1mm installed - 2mm included

MAX RIDER WEIGHT
No restriction

WEIGHT
320g per pair

INCLUDED CLEAT TYPE
15° / 20° Standard Release, 6° Float

CLEAT NOTICE
Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

WARRANTY
5 years
