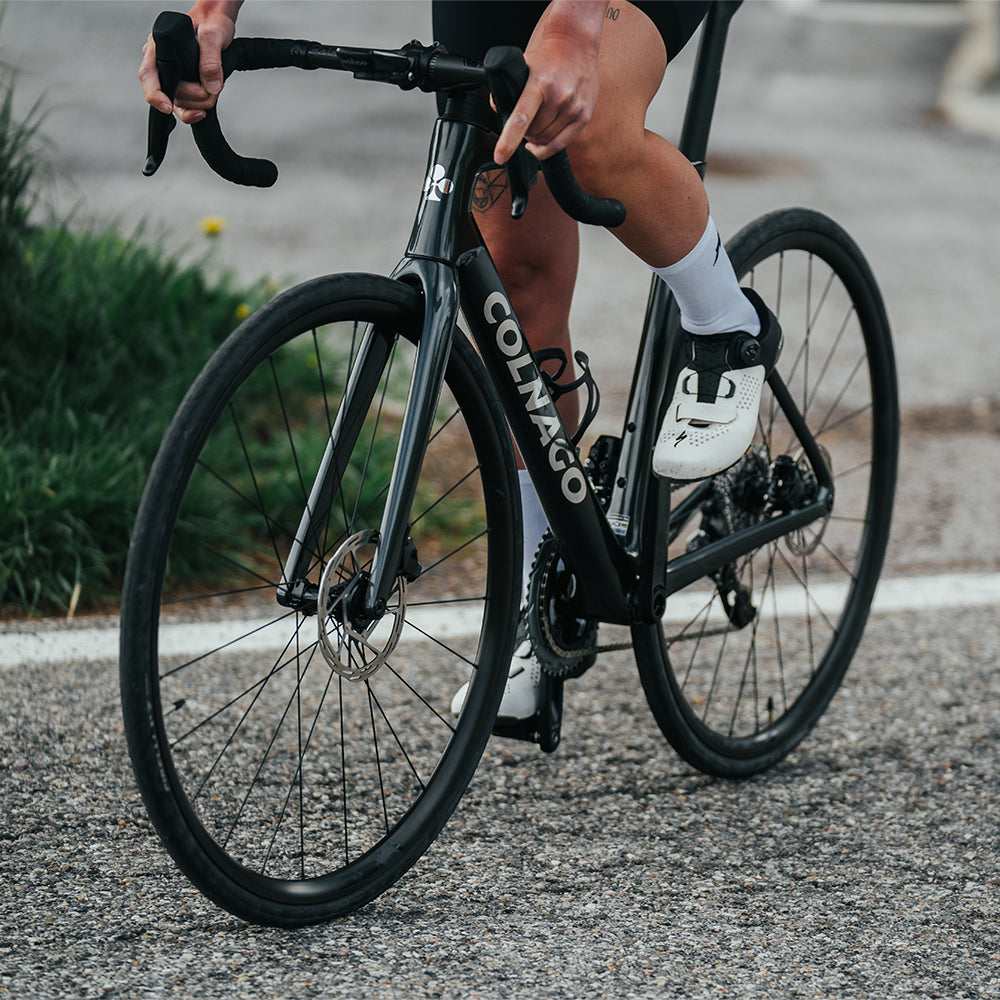

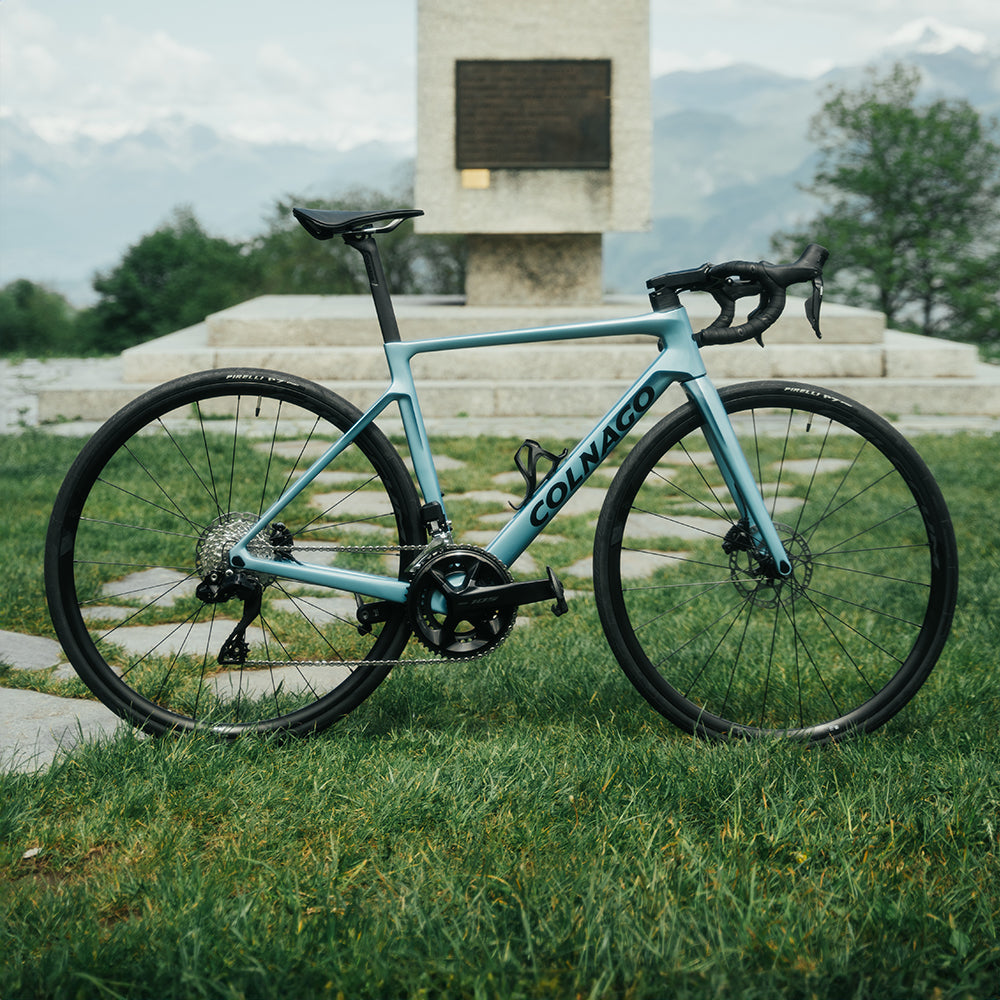

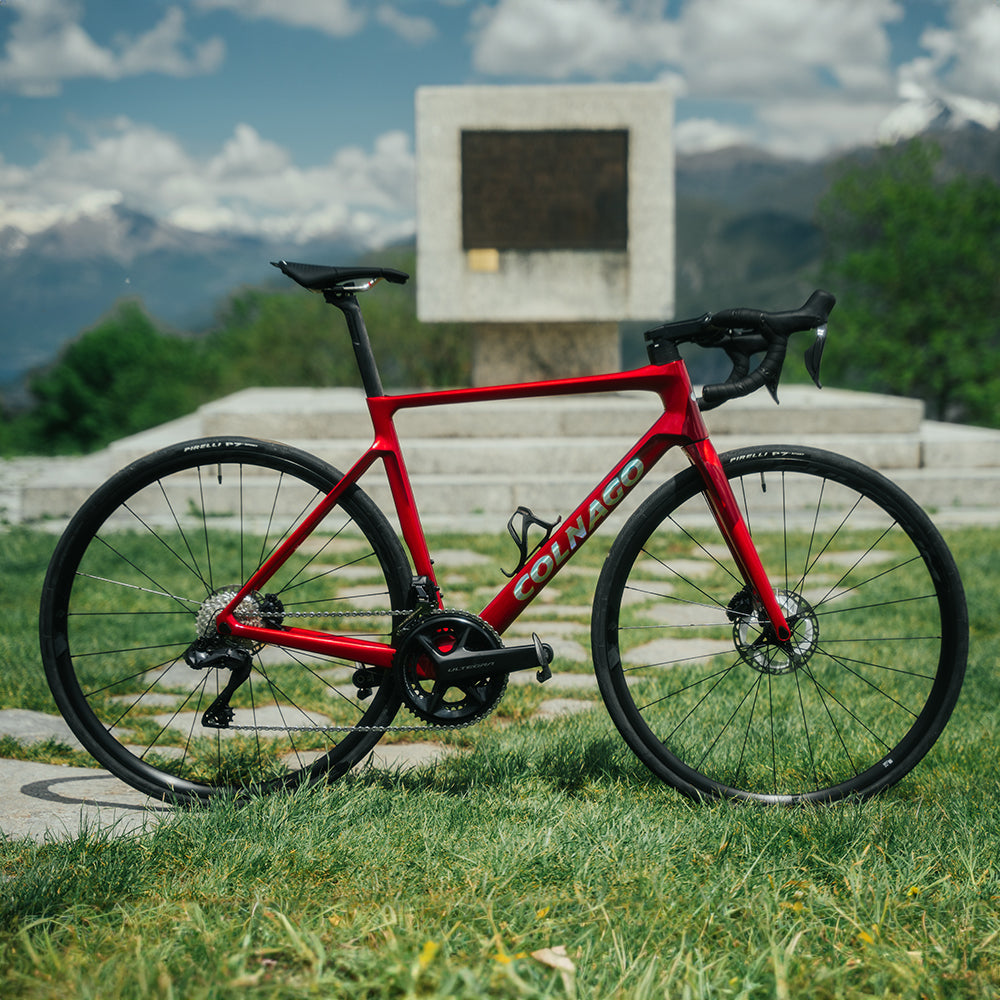

Colnago V4 105 Di2 Racing 600 Road Bike
The same thrills of V4Rs, but with a more accessible configuration Read More
Regular price
AED 18,999
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Colnago V4 105 Di2 Racing 600 Road Bike - VDRD (Red) / 42 Cm is backordered and will ship as soon as it is back in stock.
Colnago V4 105 Di2 Racing 600 Road Bike
Regular price
AED 18,999
Unit price
/
Unavailable
OVERVIEW
OVERVIEW
-

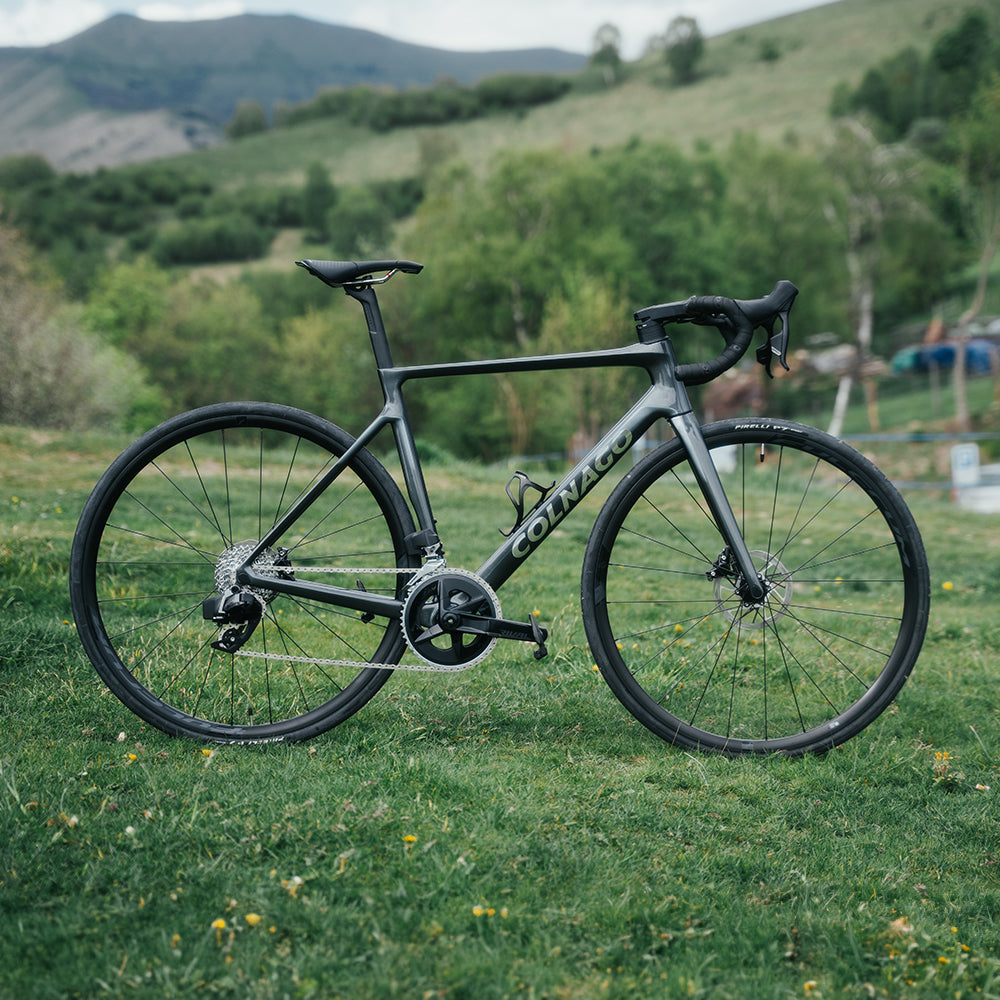

LIGHTNESS AND RESPONSIVENESS, WITH COLNAGO CHARM: The Colnago V4 is an all-round bicycle, a bike that is extremely fun to ride and has a clean and refined design. The frame is a monocoque which is stiff, solid, reactive, and which enjoys the same carbon layup R&D and aerodynamic studies that led to the realization of the V4Rs.
-
A RACING SOUL: Shorter head tube and longer fork than previous models for enhanced rideability and responsiveness. These features - combined with quality carbon - make this bike perfectly suited to both climbs and flatter terrain.
-
TYRES UPTO 30 mm: The fork is designed specifically for disc brakes and has concave chain stays to accommodate tyres up to 30mm (nominal).
-

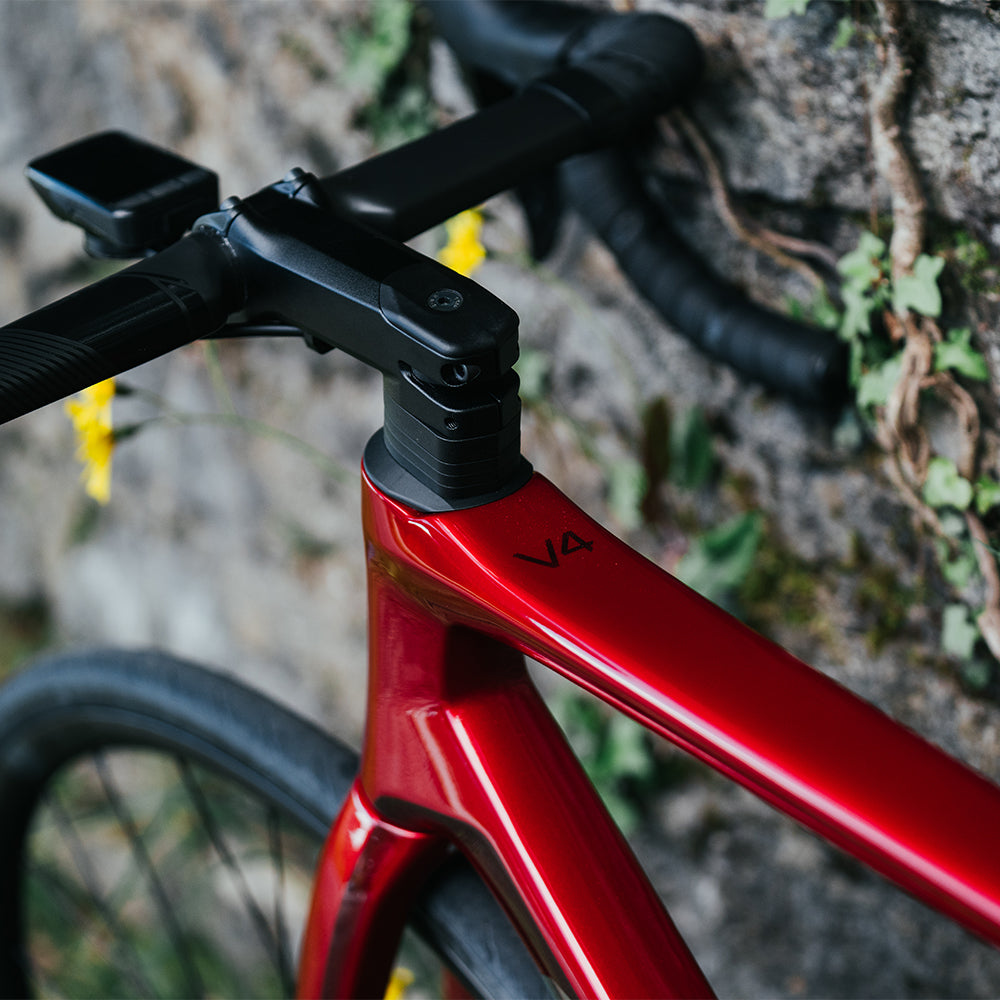

INTEGRATED CABLES: The cables run inside the Colnago SR10 stem and then through the fork stem. This makes for an extremely sleek and technically more aerodynamic frame.
SPECIFICATIONS
SPECIFICATIONS
FRAME KIT
-
Frame (material): Monocoque carbon.
-
Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section
-
Headset: ACROS ss 1"1/4 3547 bearing
-

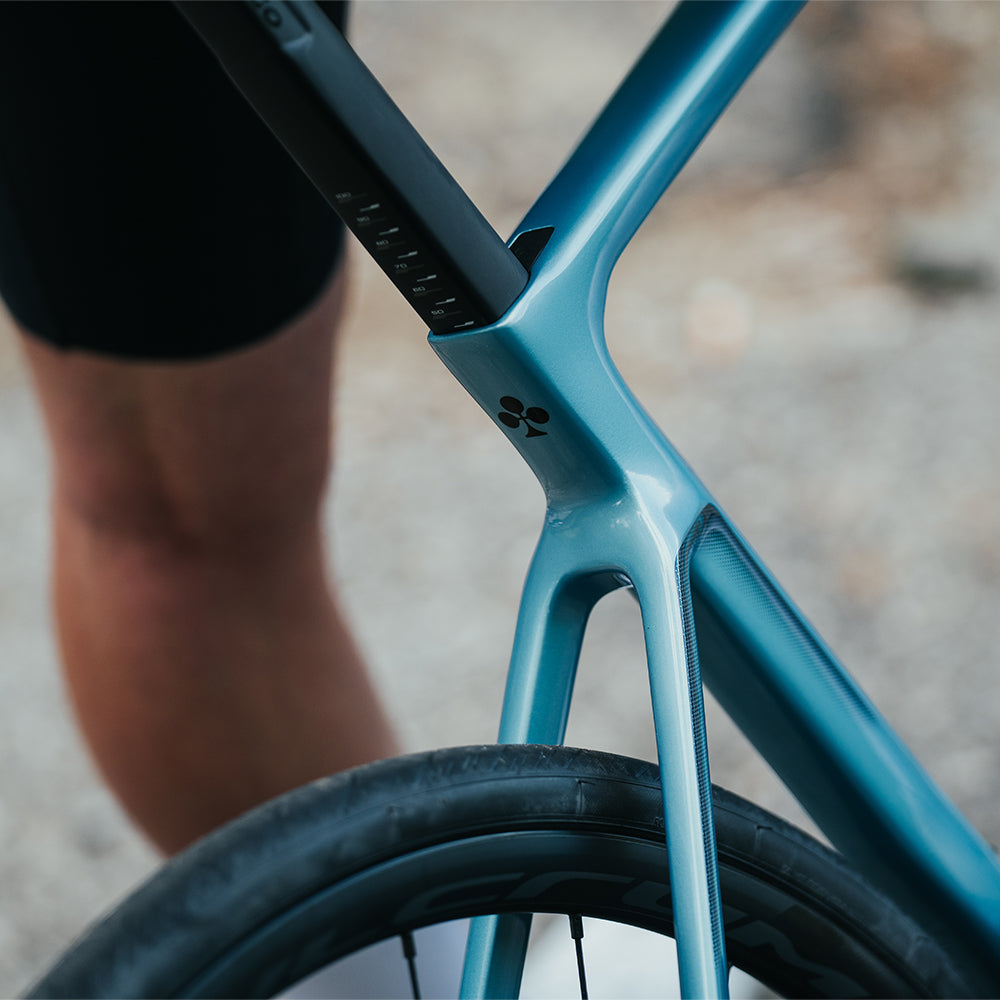

Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
-
Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
DRIVETRAIN
-
Shifting system: Shimano 105 R7170 Di2 Disc
-
Front derailleur: Shimano 105: Shimano FD-R7150
-

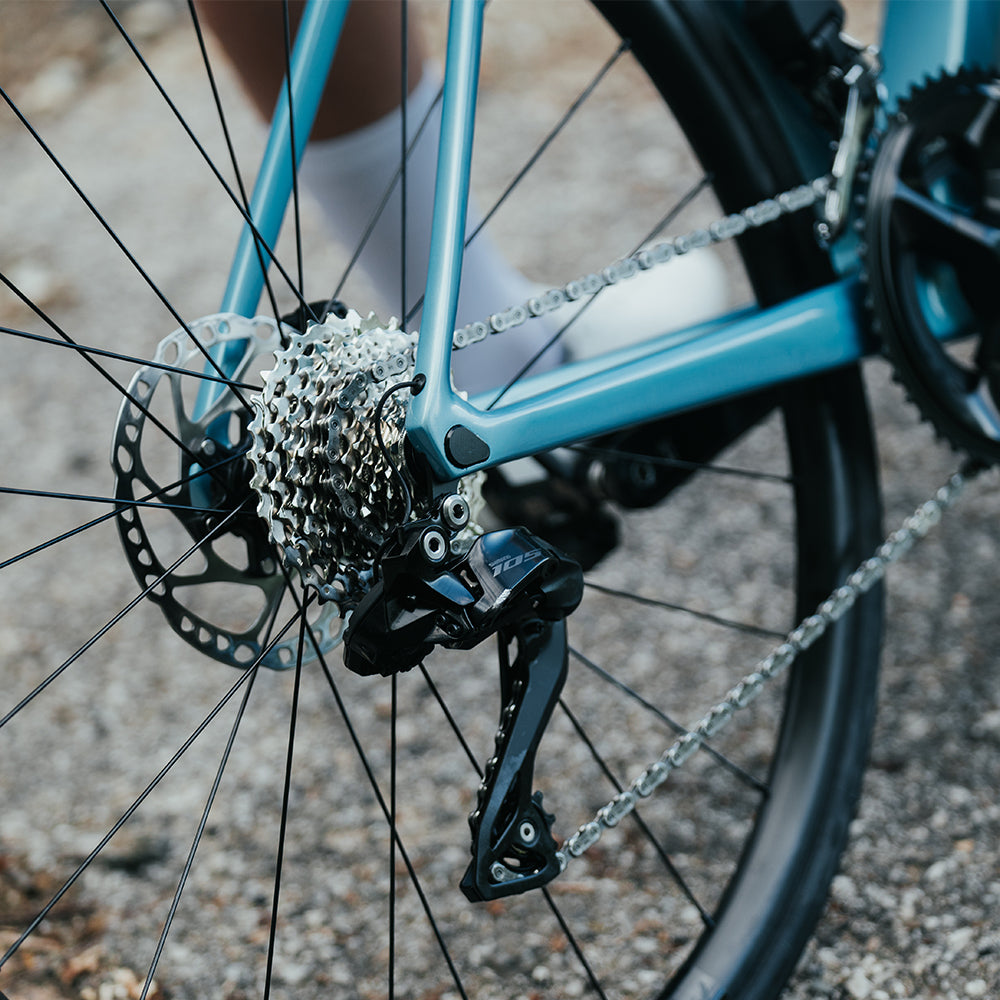

Rear derailleur: Shimano 105: Shimano Shadow RD-R7150
-
Chain: Shimano 105: Shimano CN-M7100 12V
-
Crankset: Shimano 105: 50-34T
-
Cassette: Shimano 105: 11-34 12v
-
Bottom bracket: T47
-
Crank length
-
Sizes 420 - 485 170 mm
-
Sizes 510 - 530 172.5 mm
- Sizes 550 - 570 175 mm
BRAKES
-
Brakes: Shimano 105 R7170, 160 mm Front / 140 mm Rear, SM-RT64 rotors
-
Disc size: 160 mm Front/ 140 mm Rear
-
Brake lever: Shimano 105 ST-R7170
-
Brake caliper: Shimano 105 BR-R7170
WHEELS
-
Wheels: Fulcrum Racing 600 DB - Tubeless ready
-
Material: Rims: aluminium, Spokes: stainless steel.
-
Rim height: Front: 24 mm; Rear: 24 mm
-
Internal channel width: 20 mm
-
Hubs: Aluminium, Sealed Cartridge Bearings
-
Through axles: Front: HH12-100 - Rear: HH12-142
-
Tyres: Pirelli P7 Sport 28 mm
-
Maximum tyre size: 32 mm (nominal width)
COMPONENTS
-
Saddle: SELLE ITALIA MODEL X
-

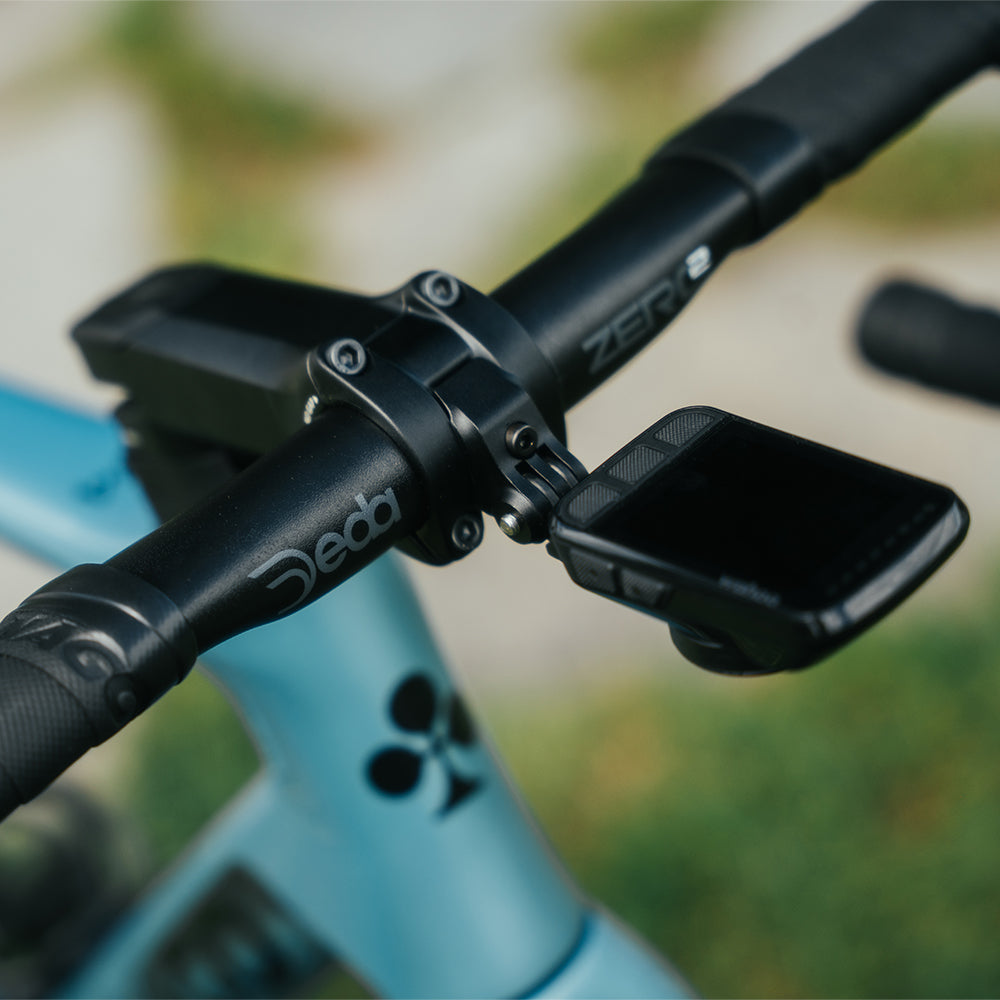

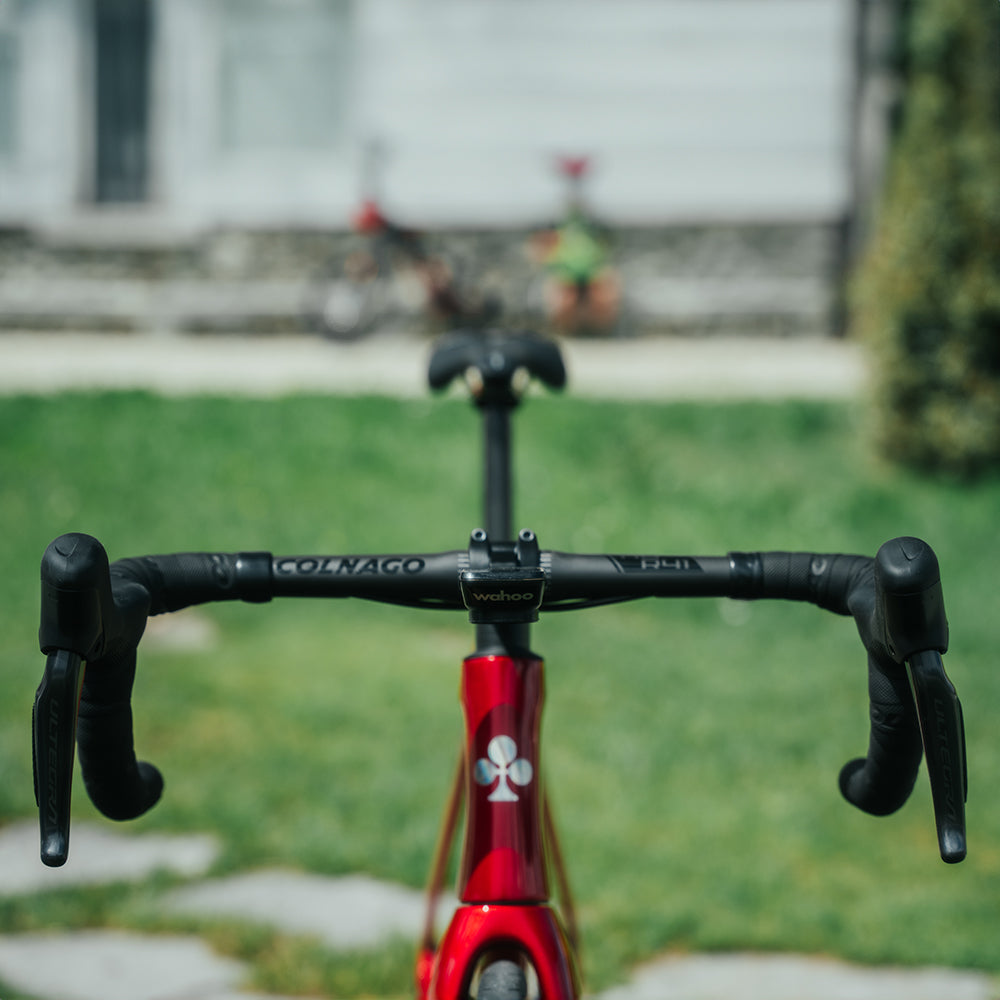

Handlebar: DEDA ZERO2 DCR (alloy)
Sizes 420 - 485: Width: 420 mm (E-E)
Sizes 510 - 530: Width: 440 mm (E-E)Sizes 550 - 570: Width: 460 mm (E-E)
-
Stem: Colnago SR10
- Size 420 Length: 90 mm
- Size 455 Length: 100 mm
- Sizes 485 - 510 Length: 110 mm
- Sizes 530 - 550 Length: 120 mm
- Size 570 Length: 130 mm
-
Handlebar Tape: Colnago Grip Black
-
Bottle cage: Colnago Matt Black (1x)
