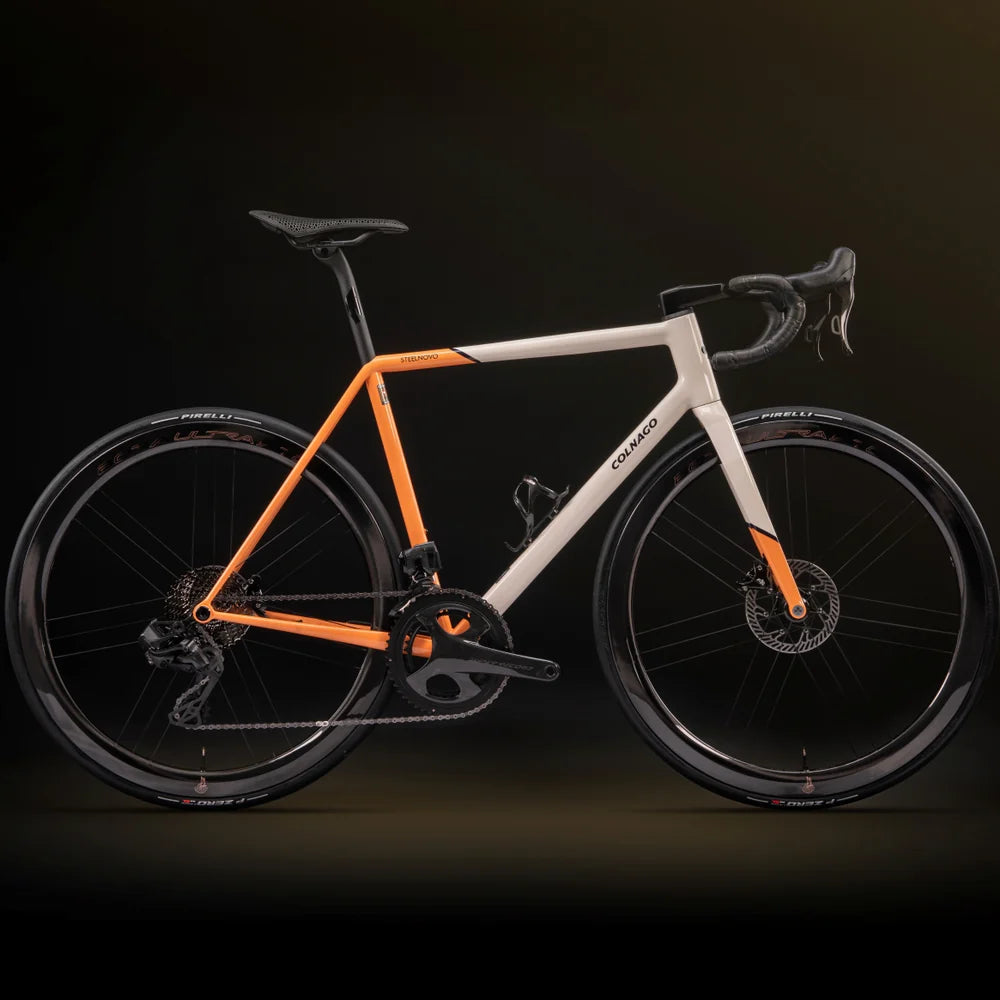

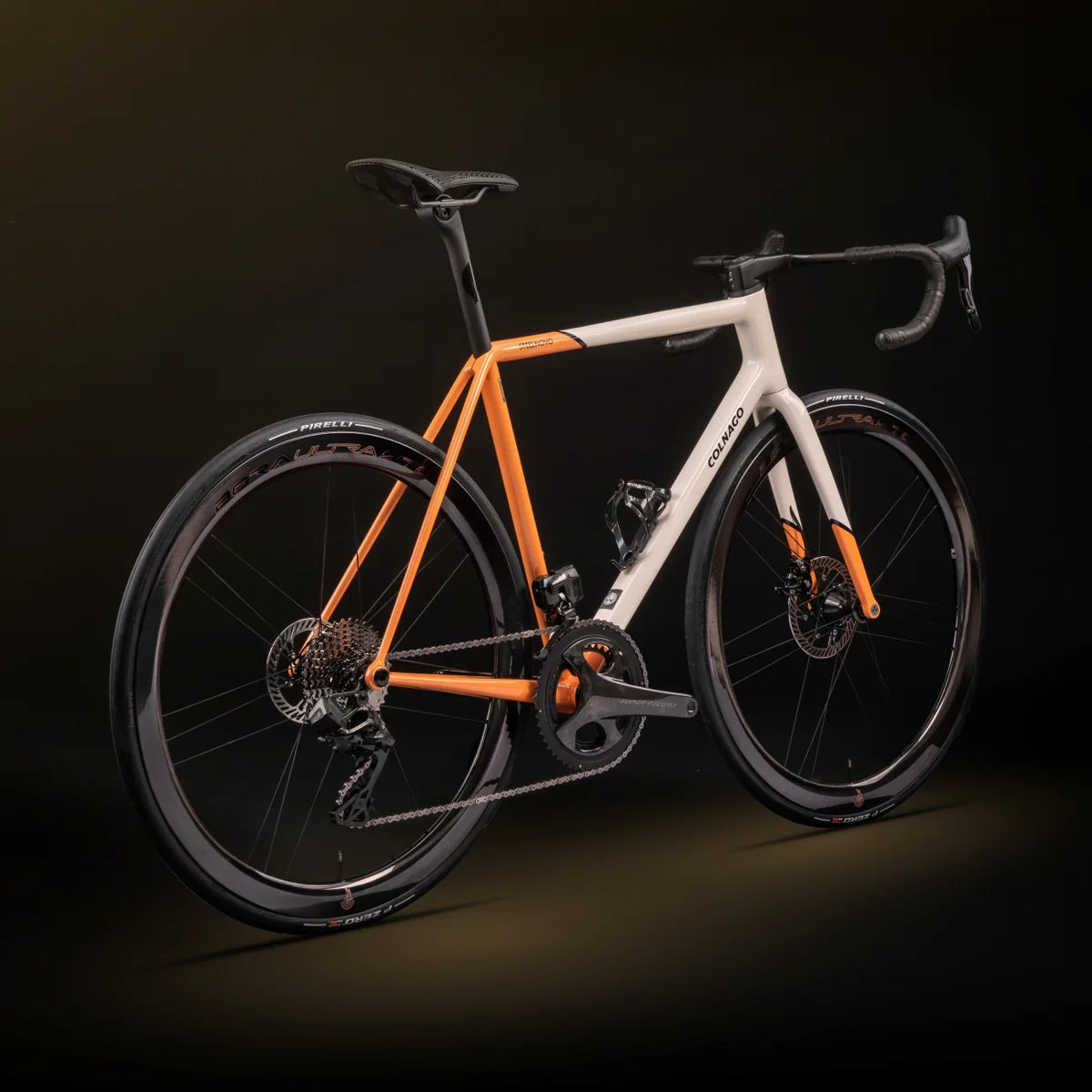

Colnago Steelnovo Road Bike

This edition is for those seeking not just a bicycle but a piece of Colnago’s history to take on the road, where past and future converge with every pedal stroke.

A 100% Italian frame blending tradition and innovation. Columbus steel tubes, 3D-printed joints, seamless welds. Each Steelnovo requires a full day of artisanal craftsmanship.

• Series: Steel bikes

• Model: Steelnovo

• Weight: Size 485 unpainted frame: 1.895g

• Frame (material): Steel tubes and lugs with 3D-printed steel lugs

• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section

• Headset: 1"1/8 - 1"1-4 (conic)

• Seatpost: Carbon seatpost, round section 27.2mm

• Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

• Shifting system: Campagnolo Super Record 13

• Chainrings: 52-36T

• Cassette: 11-36T

• Bottom bracket: T47 - 86 mm

• Crank length: 170 mm, 172.5 mm, 175 mm

• Brakes: Campagnolo Super Record 13 - Standard Flat Mount

• Disc size: 160 mm Front/ 140 mm Rear

• Brake lever: Campagnolo Ergopower Super Record 13 (with thumb shifter)

• Brake calliper: Campagnolo Standard Flat Mount - Brake pads: DB310

• Wheels: Bora Ultra WTO 45 Disc Brake

• Material: H.U.L.C. carbon fiber UD with high resistance properties - C-Lux finishing

• Rim height: 45 mm

• Internal channel width: 21 mm

• Hubs: Carbon Hubs CULT™ ceramic bearings Integrated flanges

• Through axles: Front: HH12-100 - Rear: HH12-142

• Tyres: Pirelli PZero Race TLR 700x28

• Maximum tyre size: 35 mm + 4mm clearance

• Handlebar: Colnago CC.01 integrated Cockpit - regular geometry.

• Stem: CC.01 integrated cockpit

• Handlebar Tape: Colnago Grip Black

• Other accessories: Cockpit integrated multitool

* Please note that bike specifications are subject to change without prior notice.
