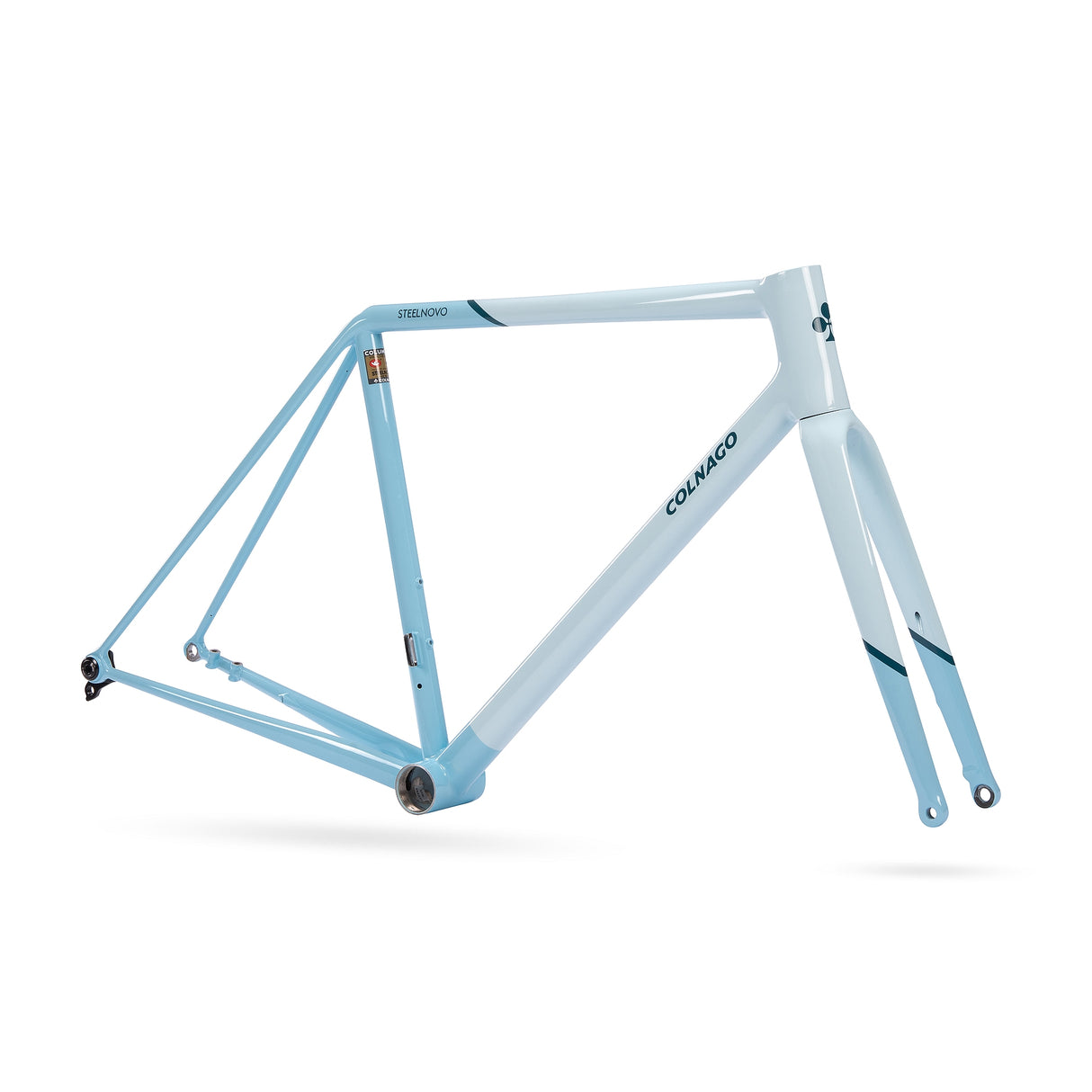

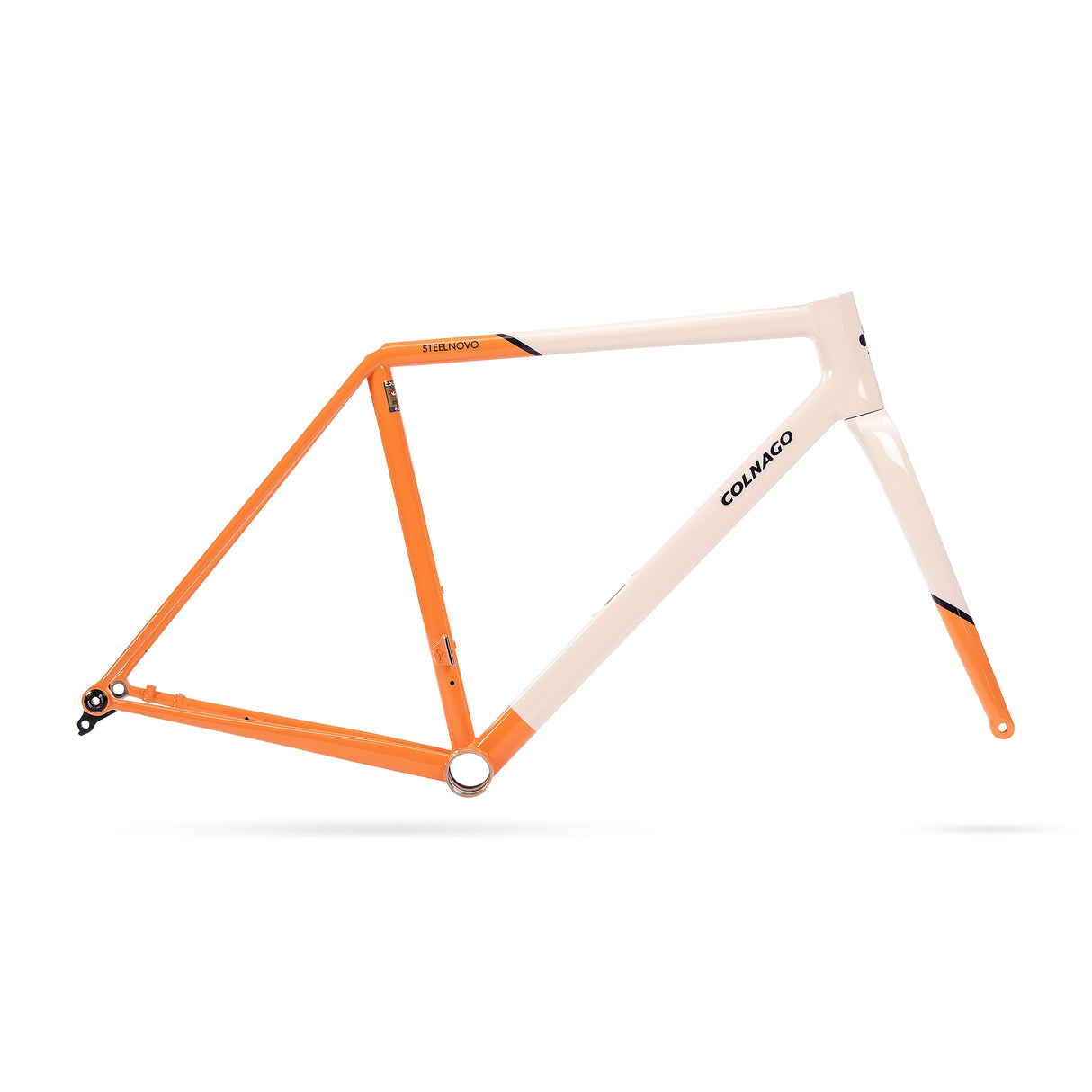

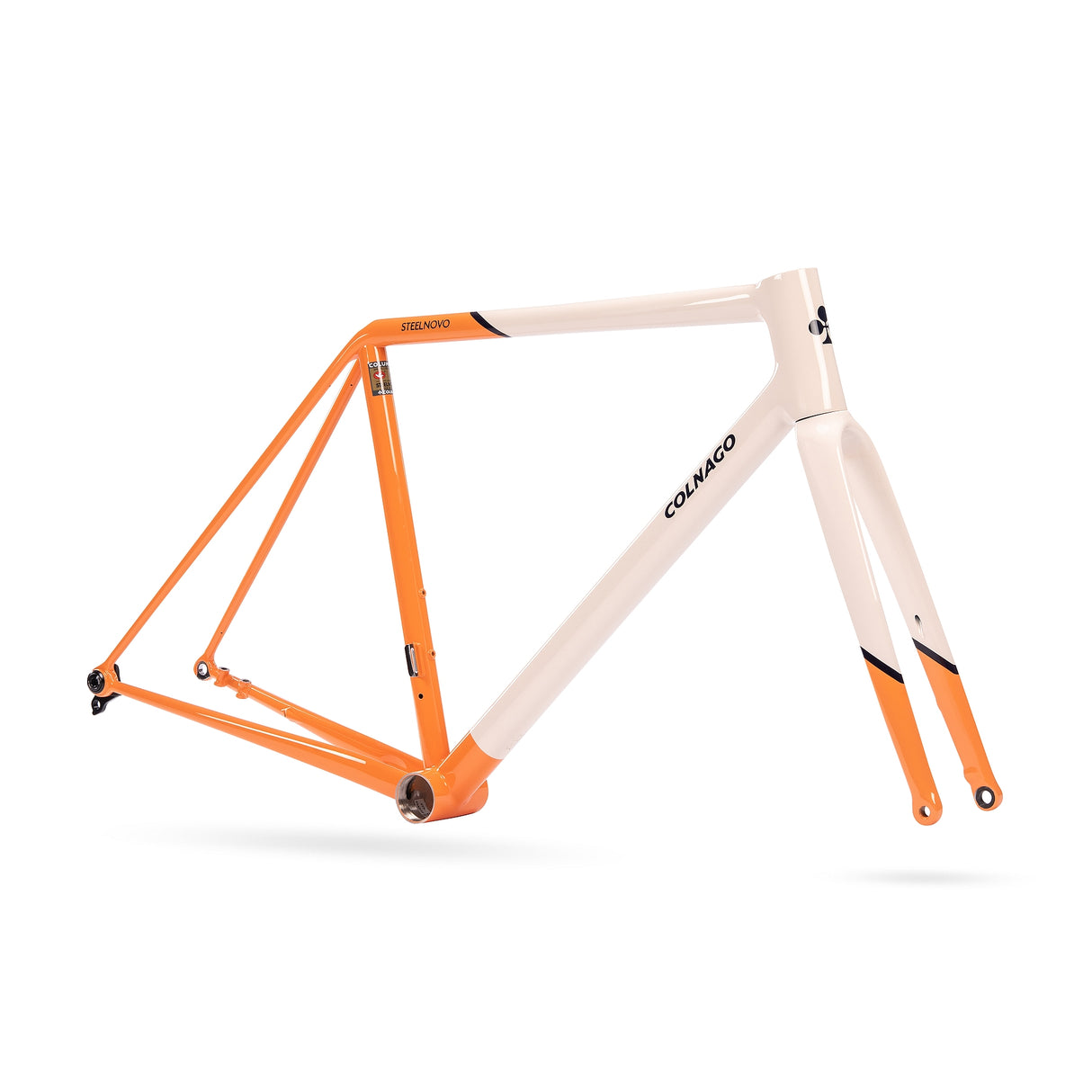

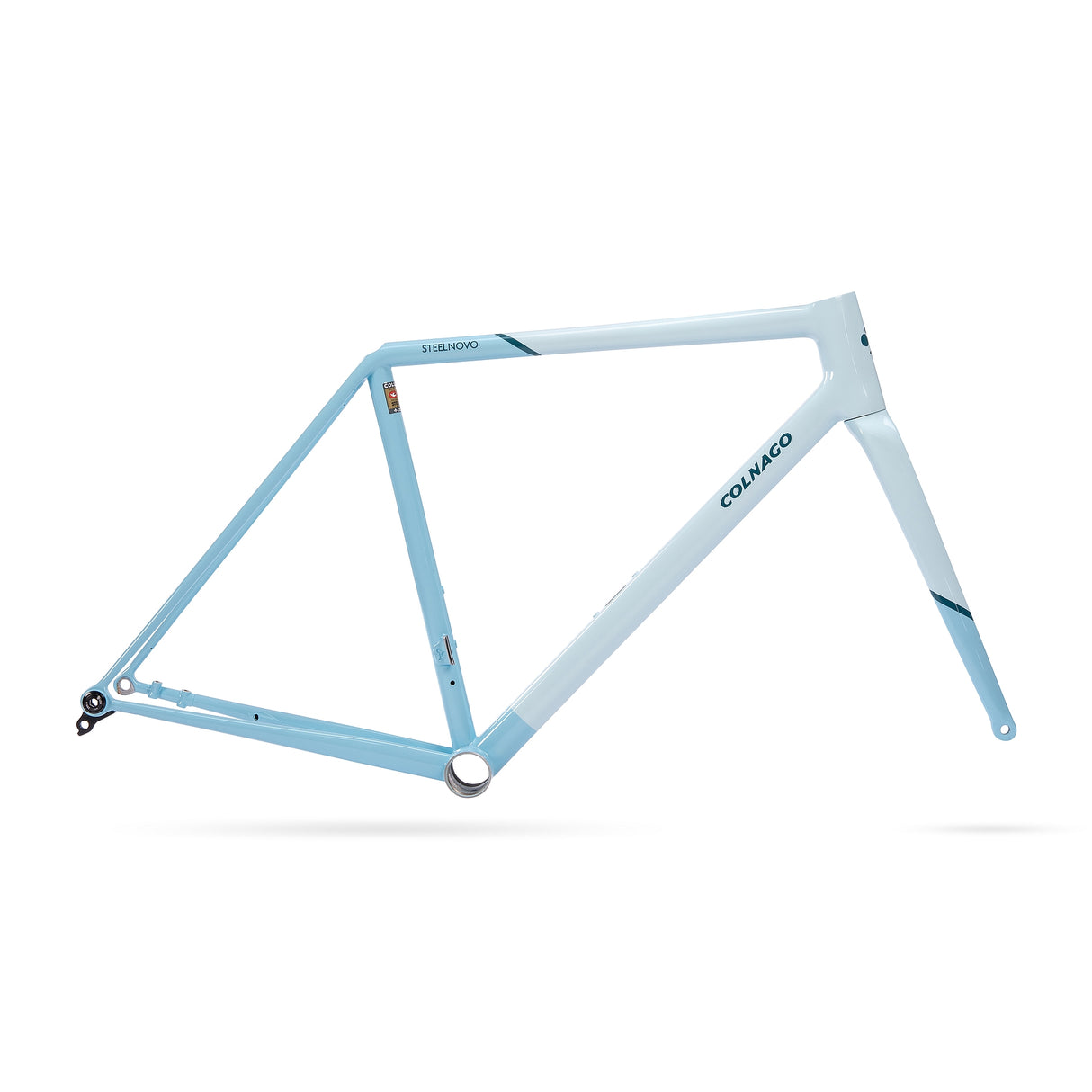

Colnago Steelnovo Frameset

The elegance of steel - reinvented.

A 100% Italian-made frame that combines tradition and innovation. Columbus steel tubes, 3D-printed steel lugs, invisible welds. Each frame is handcrafted in a whole day. This edition is for those who are not just looking for a bike, but a piece of Colnago history for the road, where past and future come together with every pedal stroke.

The elasticity and memory of the steel give an authentic, lively and unmistakable riding experience.

Hidden welds: The essential shapes of the tubes fit together without visible welds thanks to precise welding.
Complete integration: The cables of this frame are fully integrated, giving the finished bike a modern look that is in no way inferior to that of high-quality carbon bikes.
3D-printed lugs: The features of the innovative 3D-printed sleeves allow a perfect fit in the frame with an accuracy of less than a hundredth of a millimetre.
Columbus tubes: Columbus manufactures the tubes, Colnago's historic partner, with whom the brand's most iconic and prestigious steel models have been built, from the Colnago Super to the Master.

• Columbus steel frame
• Carbon fork
• Invisible welds
• 3D-printed lugs
• Flat Mount disc brake mount
• Maximum tire size: 35 mm + 4mm clearance
• 110 kg maximum system weight

• Product Name: Colnago STEELNOVO - Frameset - 2026

• Manufacturer: Colnago Bikes

• Activity: Cycling

• Gender: men

• Material: Steel

• Usage bikesport: Road Bike

• Fork: Carbon

• Brake type: Disc Brake

• Wheel size: 28" (622mm)

• Rear Triangle: Unsuspended

• Axle standard: 12x100mm (FW), 12x142mm (RW)

• Max tire width: 35mm

• Disc brake mount: Flatmount

• S.H.I.S.: integrated (IS)

• Seatpost Ø: 27.2mm

• Changeable derailleur hanger: yes

• Dropouts: conventional

• Fork included: with fork

• Seatpost Clamp Ø: system

• Front Derailleur Version: Brazed-On

• Bottom bracket type: T47

• Bottom bracket case width: 86 mm

• Model year: 2026

• Weight: 1895g

• Cable routing: fully integrated

• Weight Source: Manufacturer

• Weighed Version: 48.5 cm unpainted

• Steerer Tube Ø - Top: 1 1/8“

• Steerer Tube Ø - Bottom: 1 1/4“

• Product Series: Colnago - Steelnovo

• Frame Shape: Diamond
