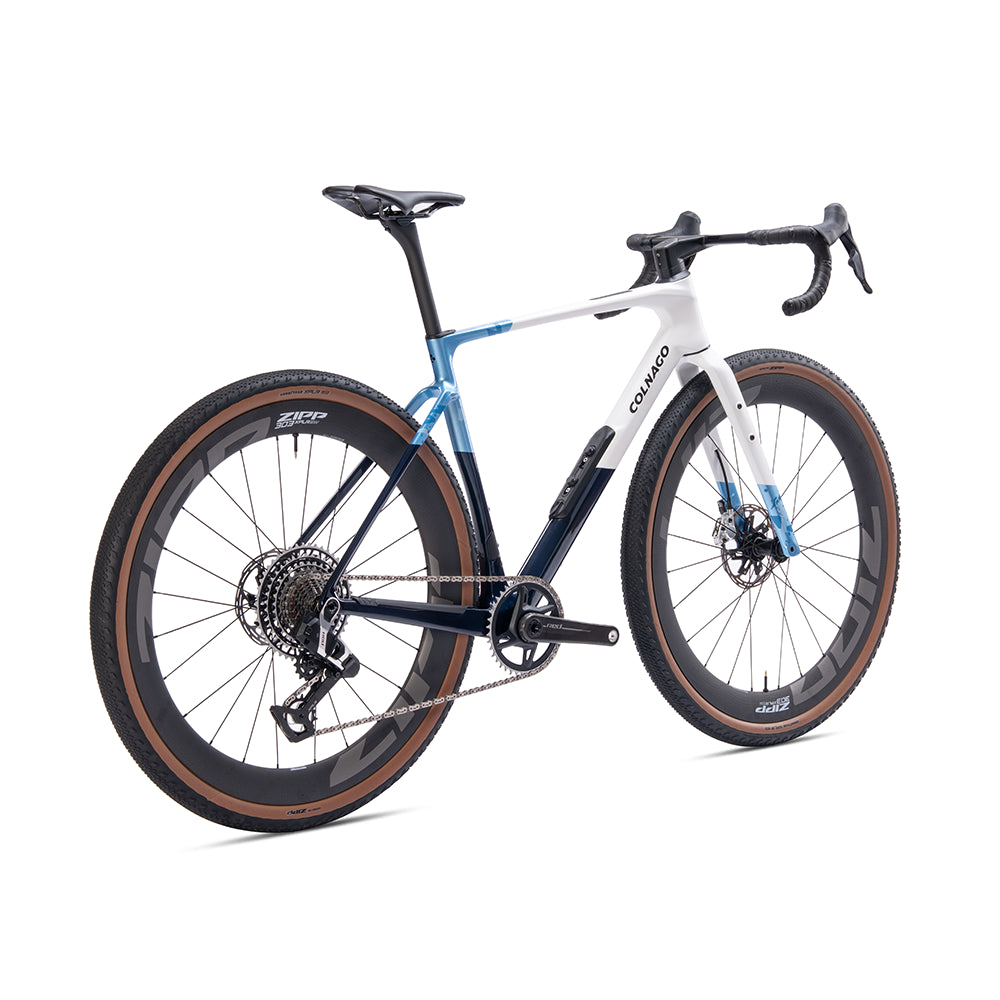

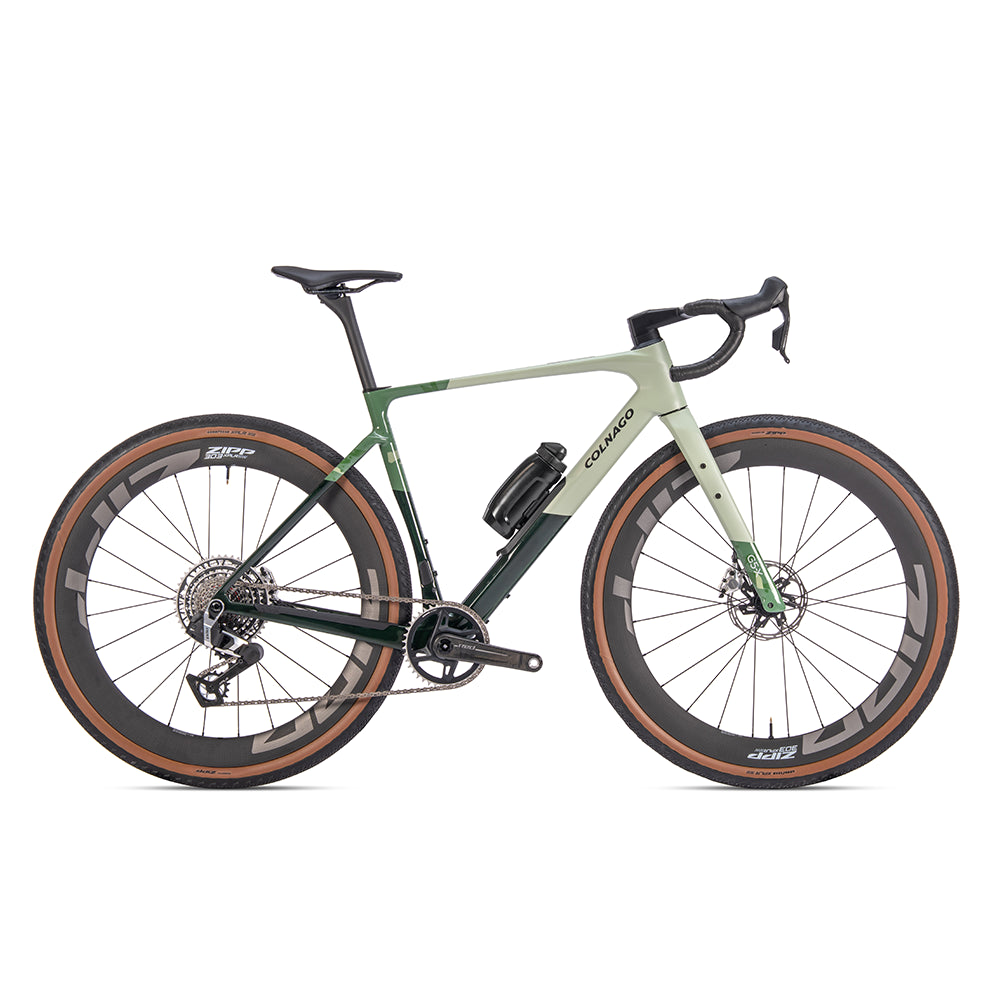

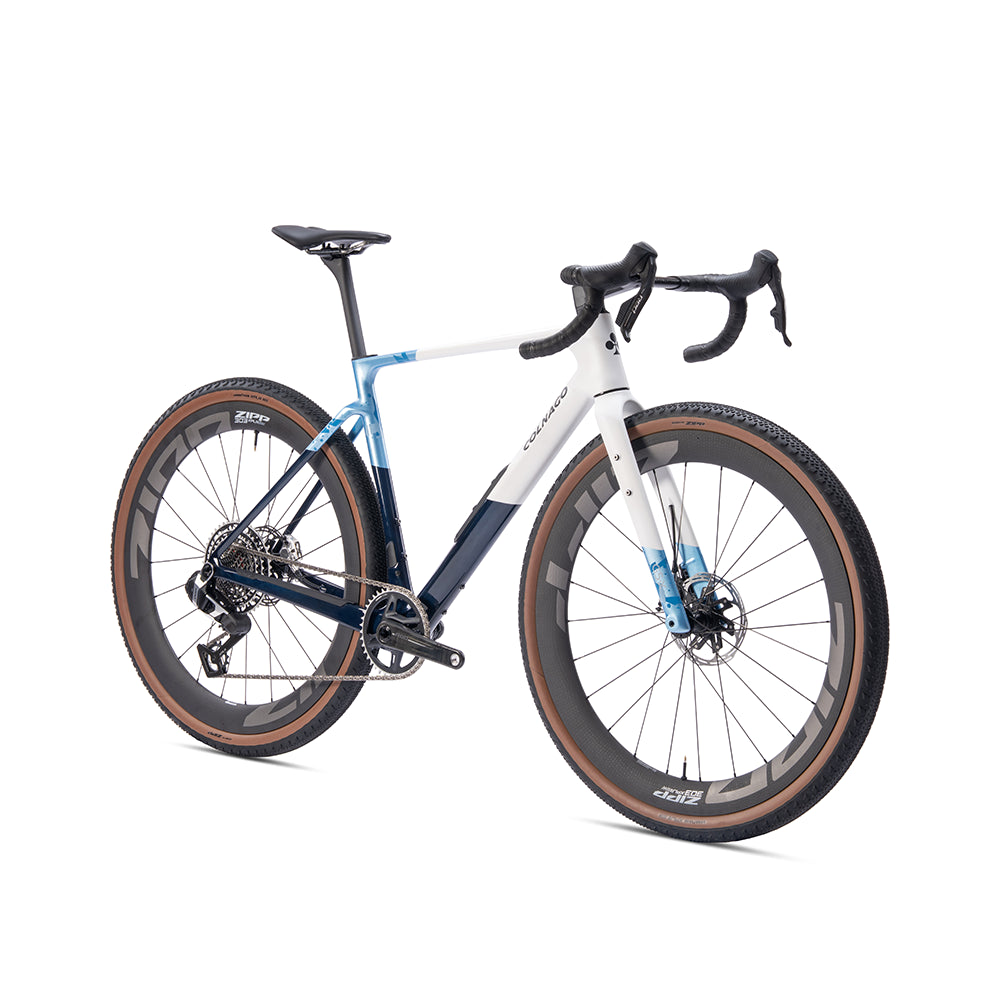

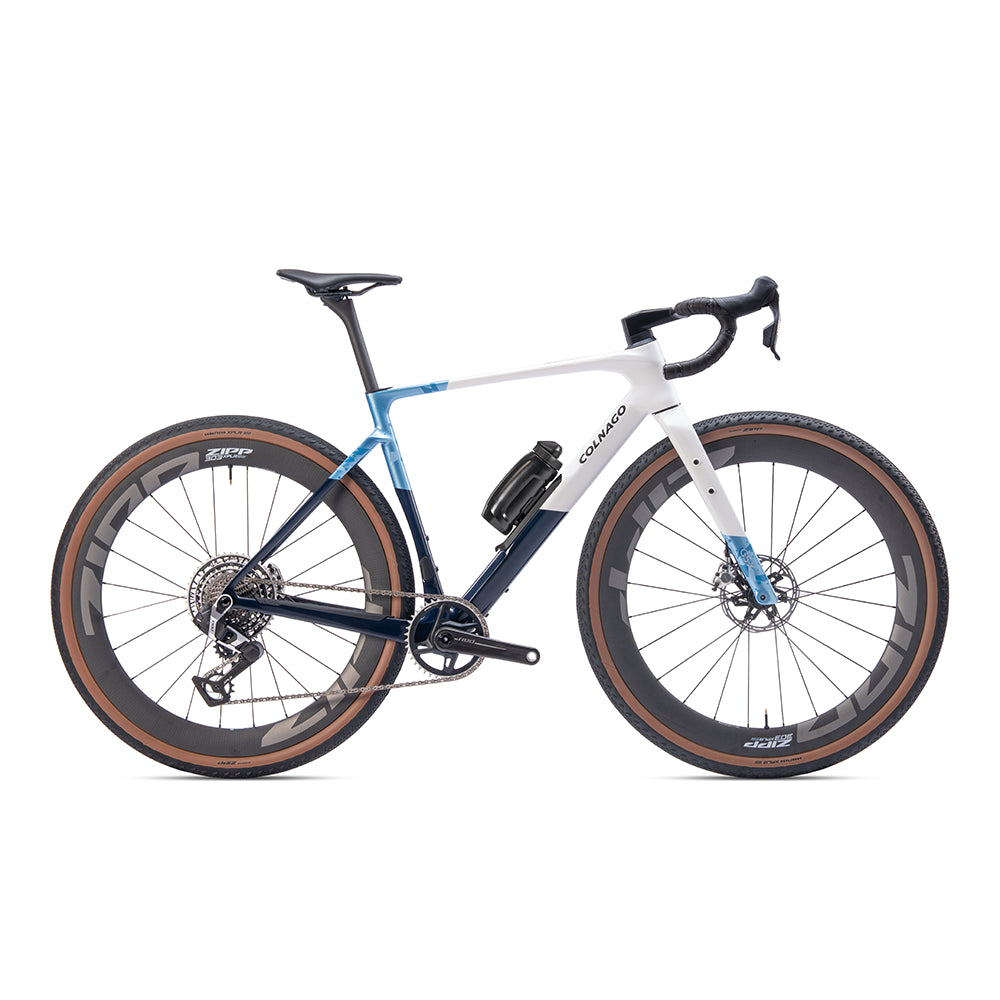

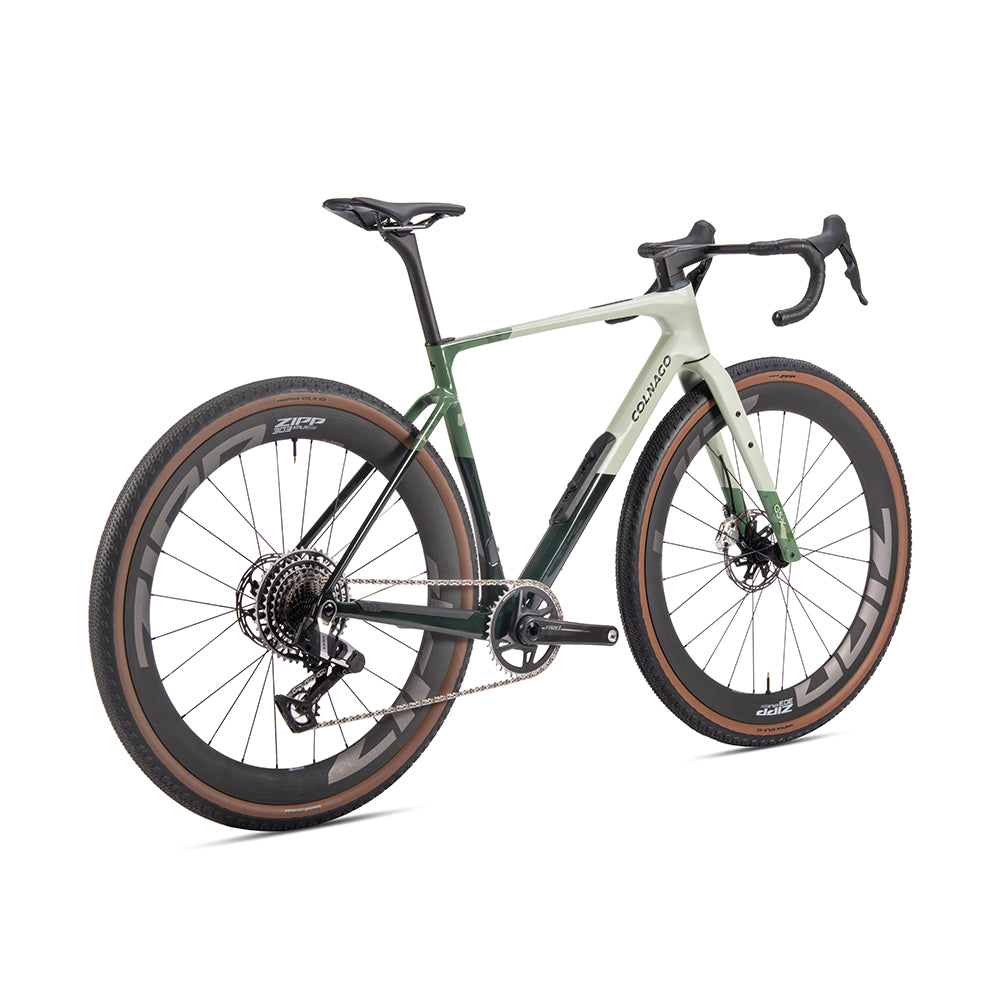

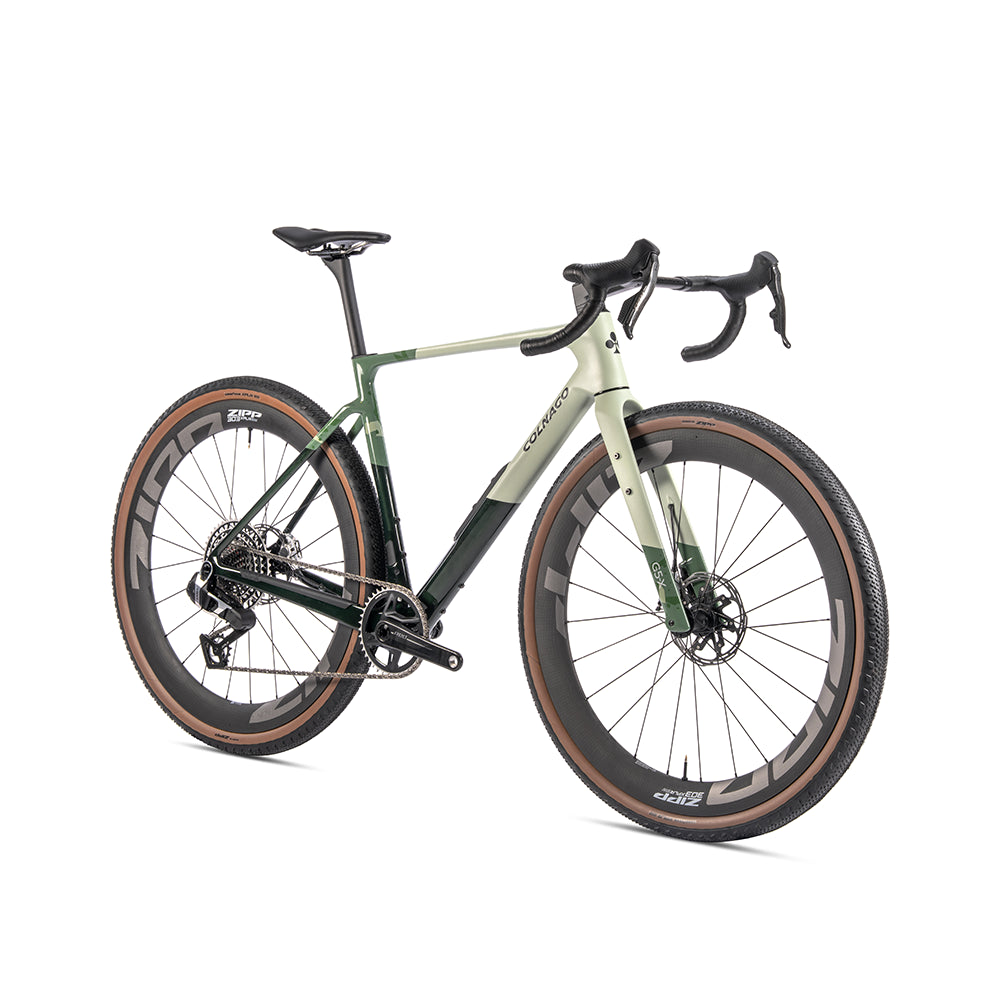

Colnago G5-X SRAM Force XPLR E1 Carbon Gravel Bike

The Colnago G5-X SRAM Force XPLR E1 is a race-oriented carbon gravel bike built on an entirely new platform, not derived from an existing road bike. It is made for riders who race and ride fast on mixed terrain, from technical climbs to long, muddy and multi-day events. With clearance for tyres up to 53 mm, gravel-specific geometry and in-frame storage, it is designed for speed, stability and comfort on rough ground.

• More grip and comfort from clearance for tyres up to 53 mm nominal width

• Stable at speed thanks to a longer wheelbase, slacker head angle and lower bottom bracket

• Quick steering on tight switchbacks from added fork rake

• Carry what you need with in-frame down tube storage and six mounting points

• Race-ready build with SRAM Force XPLR E1 and Vision TC45 carbon wheels

• More control on technical descents with a round seatpost that is potentially dropper-post
• compatible

• Carbon monocoque frame: A new carbon layup that Colnago describes as softer over rocky, broken surfaces and more responsive on climbs and accelerations.

• 53 mm tyre clearance: Wider tyres allow lower pressures for comfort, a bigger contact patch for grip and extra room for mud.

• Gravel-specific geometry: A longer wheelbase, slacker head angle and lower bottom bracket add stability at speed, when loaded and on steep descents.

• In-frame storage: A down tube compartment with a removable plate holds tools and spares (storage bag and repair kit not included).

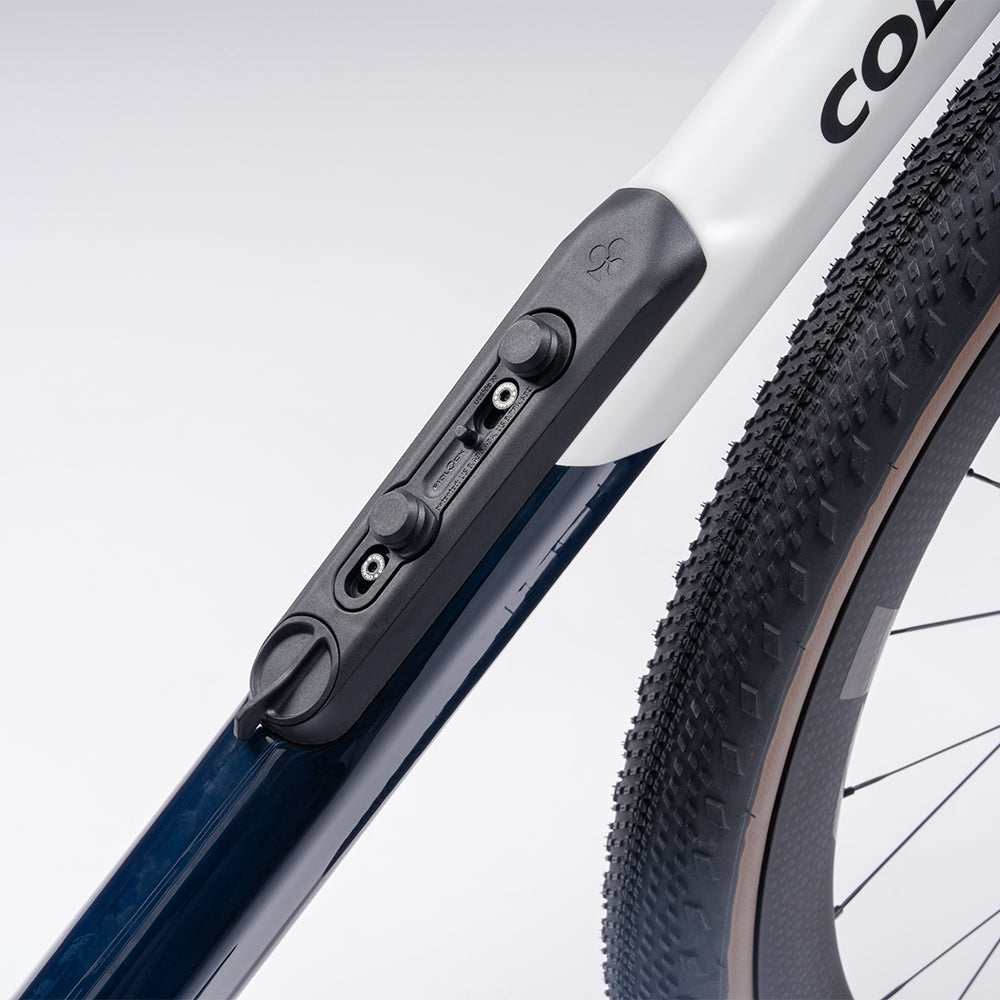

• Mounting points: Six mounting points, including two on the fork for bottle or cargo cages, with three Fidlock Twistlock mounts included.

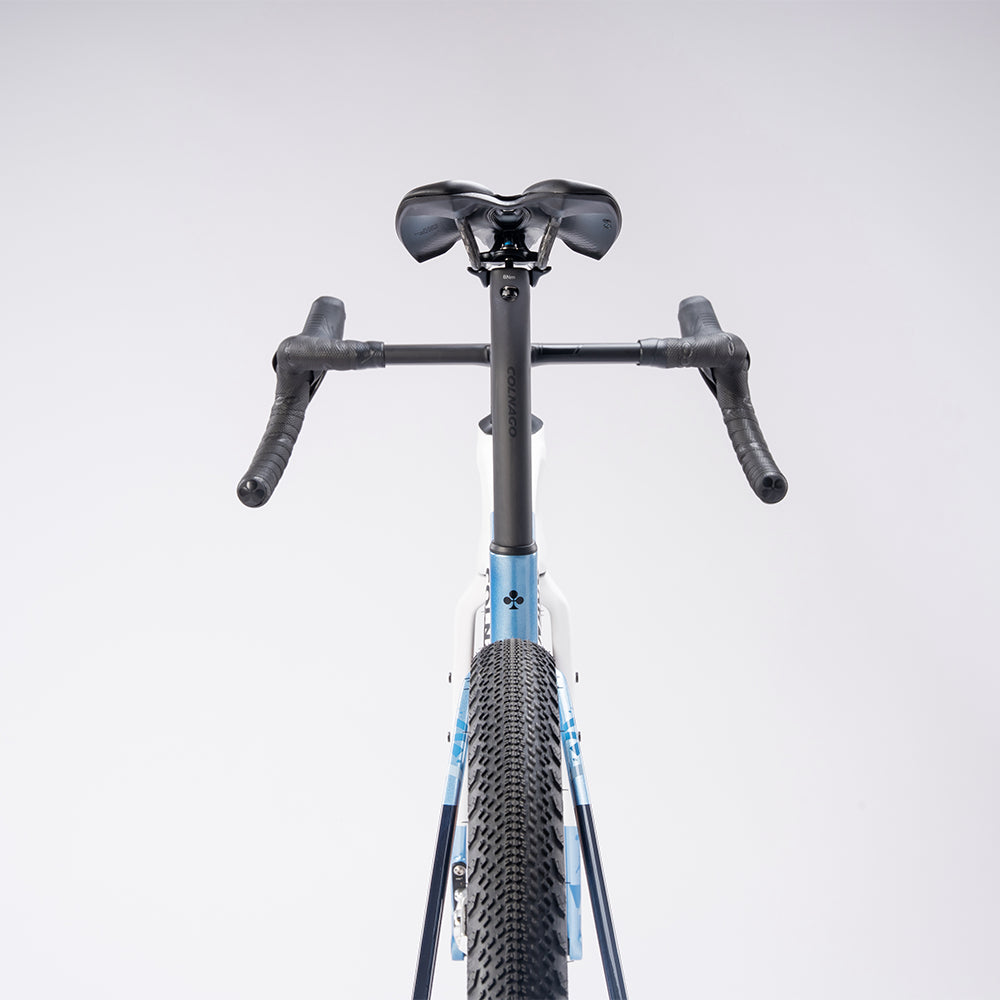

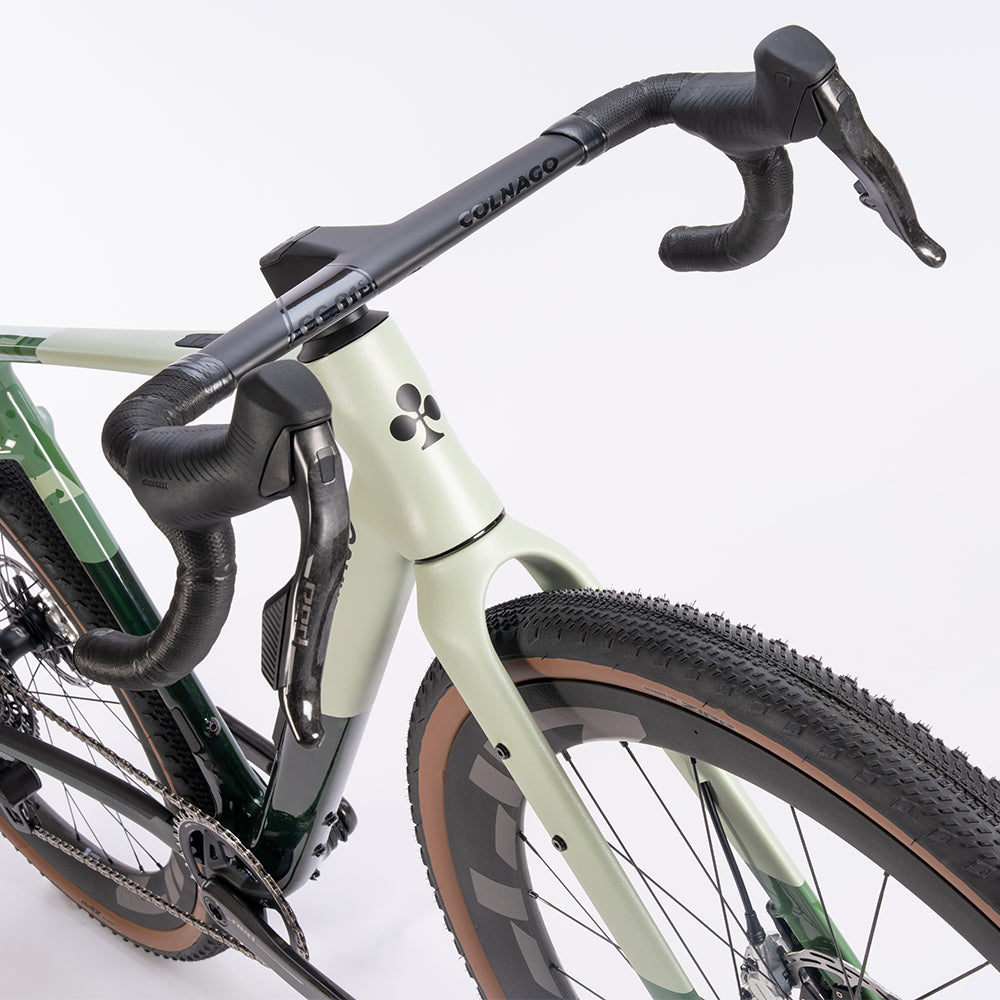

• Colnago CC.01 Wide cockpit: An integrated carbon bar with fully integrated cables, 3 cm of flare per side, 72.5 mm reach and 120 mm drop.

• SRAM Force XPLR E1 groupset: An electronic 1x13 drivetrain with a 40T crankset and 10-46T cassette, plus hydraulic disc brakes with 160 mm rotors.

• Vision TC45 carbon wheels: Tubeless-ready carbon wheels with a 45 mm rim height, fitted with Pirelli Cinturato Gravel RH 700x50 TLR tyres.

• Brand: Colnago

• Model: G5-X

• Build: SRAM Force XPLR E1

• Frame: Monocoque carbon fibre

• Fork: Colnago G5-X carbon, disc brake, fully integrated cables

• Sizes: 450, 480, 510, 540, 570 (sloping)

• Colours: Carbon Green (G501), Carbon Blue (G502)

• Groupset: SRAM Force XPLR E1, 1x13 (shifters, derailleur, chain, brakes)

• Crankset: SRAM Force XPLR E1 40T

• Crank length: 170 mm (sizes 450 and 480), 172.5 mm (larger sizes)

• Cassette: SRAM Force XPLR E1 10-46T, 13-speed

• Brakes: SRAM Force XPLR E1 hydraulic disc, 160 mm front / 160 mm rear rotors

• Wheels: Vision TC45 Carbon, 45 mm rim height, tubeless ready

• Tyres: Pirelli Cinturato Gravel RH 700x50 TLR
• Handlebar tape: Colnago Grip Black

• Saddle: Selle Italia Novus

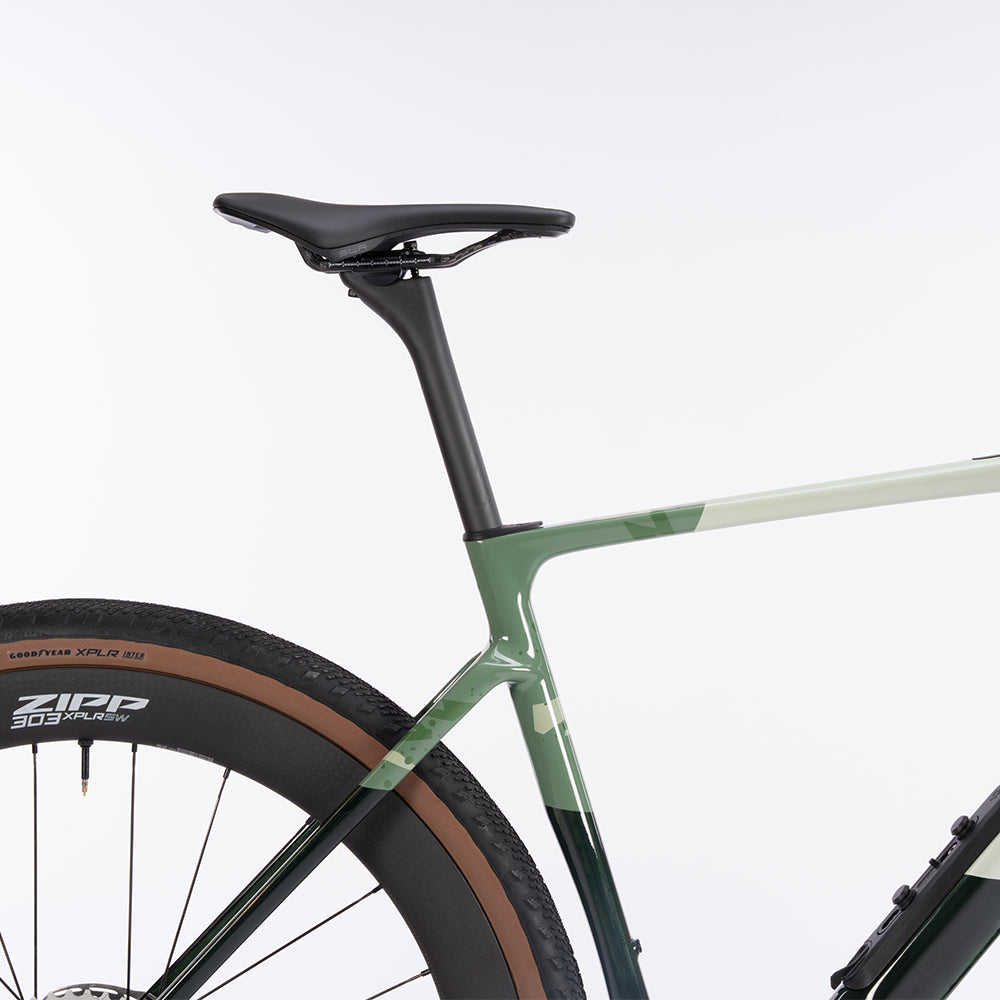

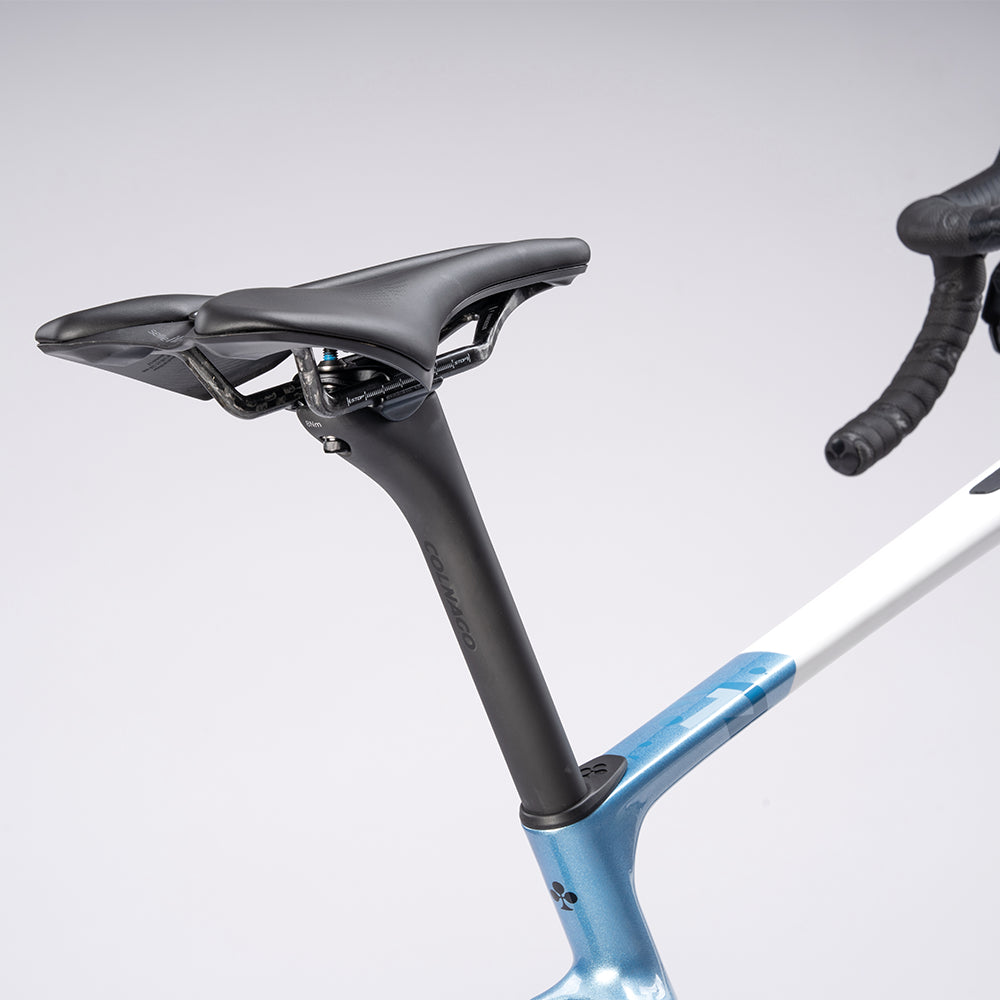

• Seatpost: Colnago carbon, 27.2 mm round, -15 mm offset

• Bottom bracket: BSA 68 mm

• Headset: Integrated, 42x52x7 mm upper and lower bearings

• Axles: Colnago 12 mm thru-axles, front 12x100 mm, rear 12x142 mm

• Rear hanger: UDH

• Maximum tyre width: 53 mm nominal

• Mounting points: 2 bottle cages, 1 under the down tube, 1 on the top tube, 2 on the fork

• Compatibility: Electronic groupsets only; 1x chainrings up to 50T; 2x with all gravel chainrings, or compact and super-compact road chainrings

• Included: 3 Fidlock Twistlock mounts

• Warranty: 2 years, extended to 3 years when the bike is registered with Colnago

Please note that bike specifications are subject to change without prior notice.
