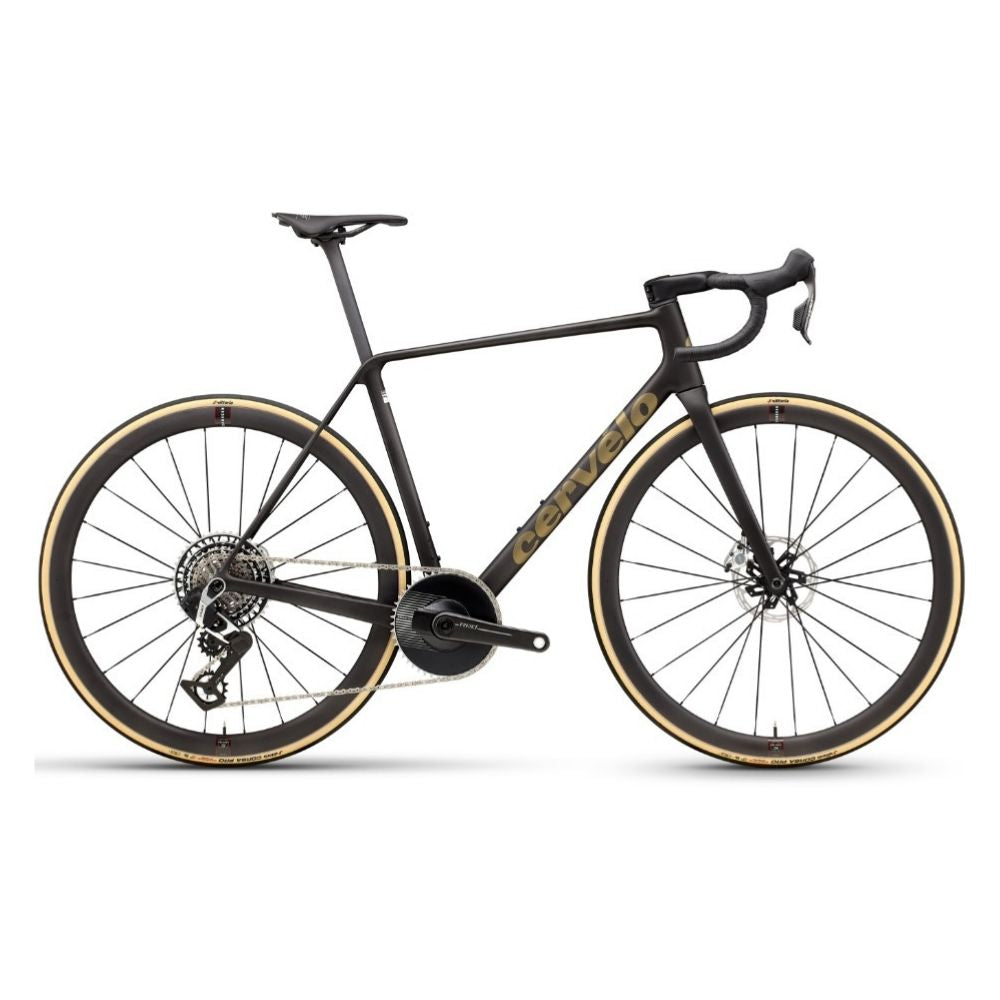

Cervelo R5 Red AXS XPLR 1 Road Bike

HIGHLIGHTS

The Cervélo R5 Red XPLR AXS 1 is an ultra-lightweight road bike engineered for riders who demand peak climbing performance without compromise. Built around Cervélo’s refined carbon R5 frame, weighing just 651g, the complete bike tips the scales at an exceptional 5.97kg—well below the UCI weight limit—delivering explosive acceleration and effortless ascending on the steepest gradients.

FEATURES

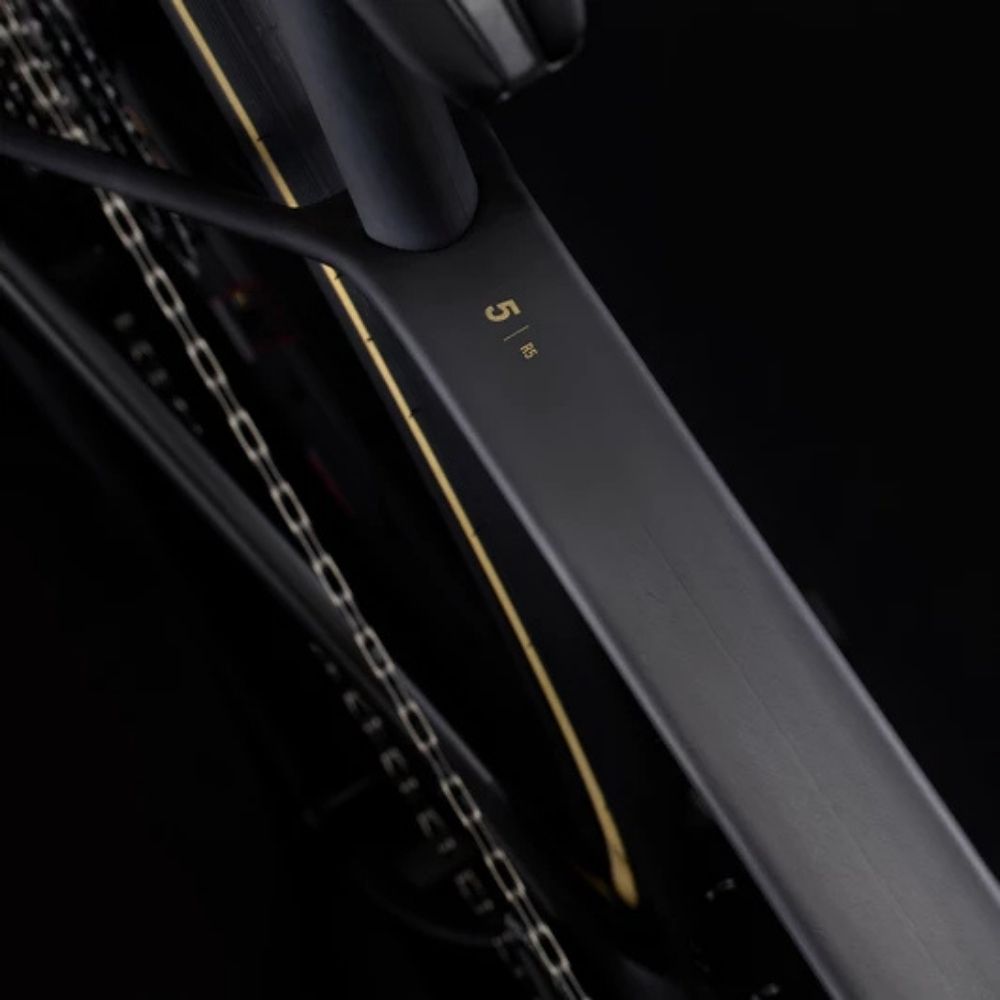

• Lightweight Cervelo R5 Frame
  In size 56, the R5 weighs 5.97kg, 900 grams below the UCI minimum. The frame is 651 grams, the fork 298 grams, and refinements to every component cut a total of 326 grams across the bike.

• Cervelo Race-Ready Fit Geometry
  Handling geometry is largely unchanged, aside from a minor bottom bracket adjustment for 29mm tyres. Fit geometry now matches the S5, keeping riders in an optimal position for fast group rides.

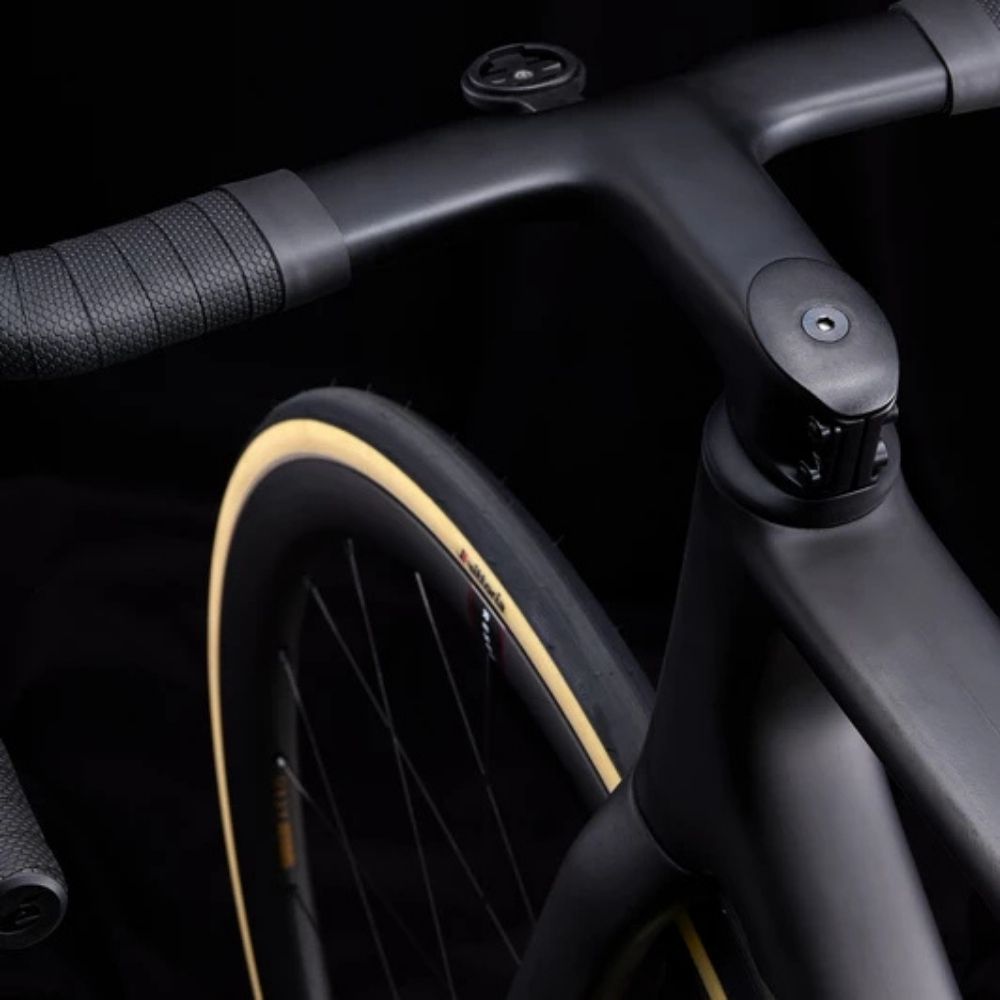

• Cervelo One-Piece Handlebar and Stem
  The HB18 handlebar and stem drop 150 grams and improve aerodynamics by two Watts. Drawing on S5 insights, it delivers comfort, stiffness, and speed, ideal for long days and sprint finishes. All sizes remain UCI-legal.

• Ultralight Wheelset
  The Reserve 34 | 37 SL wheels save 60 grams while maintaining the strength and stiffness of the previous set, with a refined layup that reduces weight without sacrificing performance.

SPECIFICATIONS

• Frame/Fork: Cervelo All-Carbon, Tapered R5 Fork

• Headset: FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°

• Thru Axles: Cervelo Aero Thru Axle Front, M12x1.5mm, 122mm length

• Rear Axle: Cervelo Aero Thru Axle Rear, M12x1.0mm, 169mm length

• Front Wheel: Reserve 34TA, DT Swiss 180, 12x100mm, 24H, centrelock, tubeless compatible

• Rear Wheel: Reserve 37TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centrelock, tubeless compatible

• Tyres: Corsa Pro Speed TLR 700x26

• Max Tyre Width: 34mm

• Crankset: SRAM Red 1 AXS E1, 48T, DUB, with power meter

• Bottom Bracket: SRAM DUB Ceramic, BBright

• Chain: SRAM Red, 12-Speed

• Rear Derailleur: SRAM Red AXS XPLR E1, 13-Speed

• Cassette: SRAM Red, 10-46, 13-Speed

• Shifter: SRAM Red AXS, 12-Speed

• Stem: 54cm - 100mm

• Handlebar: Cervelo HB18 Carbon

• Handlebar Sizing: 54cm - 40cm

• Saddle: Prologo Nago R4 PAS LIGHTWEIGHT NACK

• Seatpost: Cervelo SP33 Carbon

• Seatpost Sizing: 54cm - 0mm

• Brake Rotor: SRAM Paceline X Centerlock

• Accessories: Cervelo Front Computer/Accessory Mount 887 / Cervelo Rear Accessory Mount / Cervelo Front Computer/Accessory Mount 014

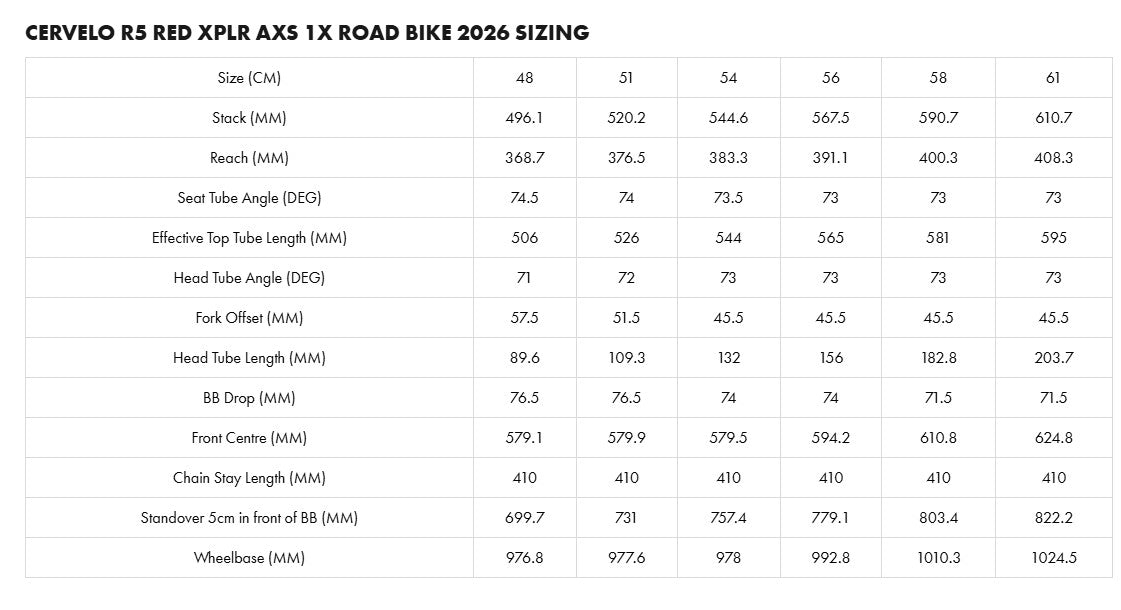

GEOMETRY
