Carbon Ti X-Carboring X-AXS Chainring

Carbon-Ti X-CarboRing X-AXS are the next generation of super-light carbon and aluminium chainrings for the SRAM AXS 12-speed shift group.

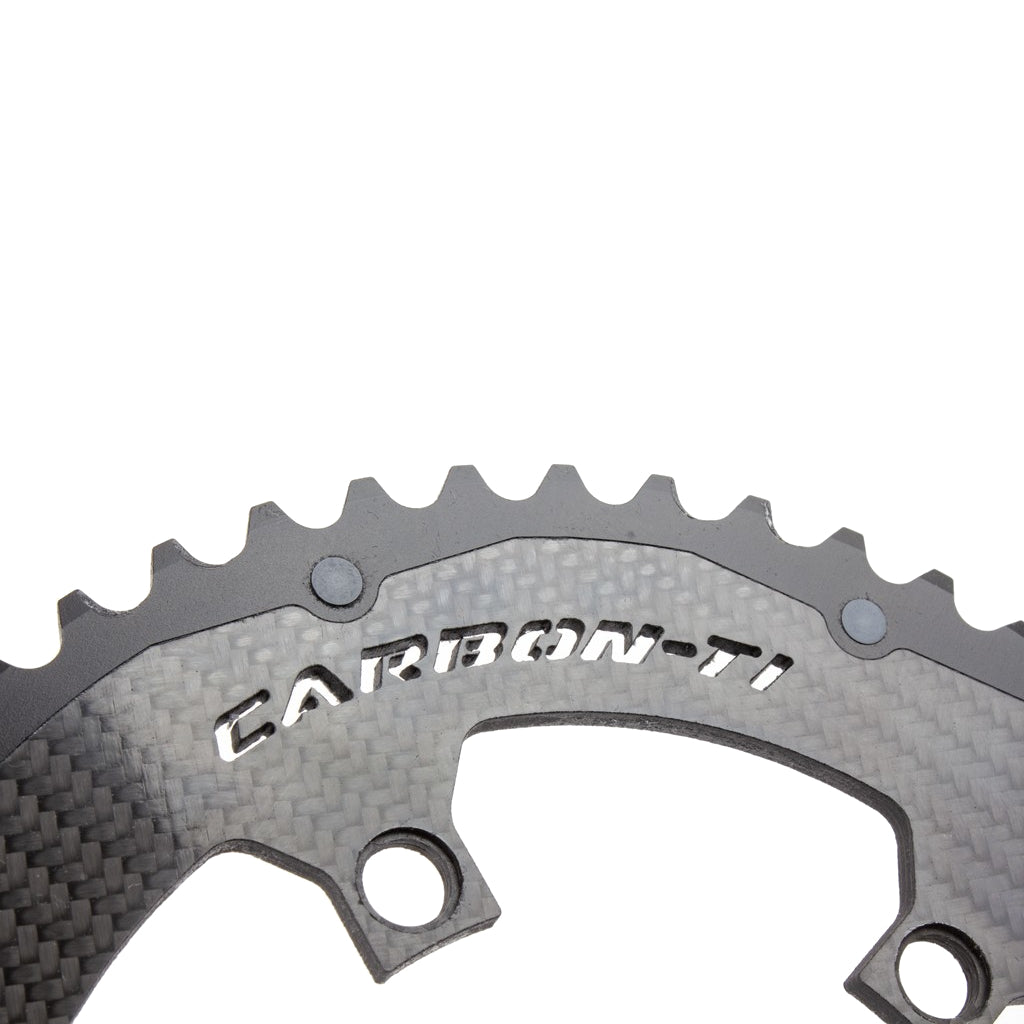

The outer chainrings are made with thicker carbon fiber plates, thus providing greater rigidity and allowing for more complex CNC machining. The redesigned titanium elements and ramps ensure fast and precise upshifting and downshifting from the smallest to the largest chainring, both with electronic and mechanical derailleurs.

The teeth are made of 7075-T6 aluminium, are individually machined and are optimised to ensure functionality in any condition. The chainrings have a pitch circle diameter of 110mm and are available in sizes 46/33T, 48/35T and 50/37T.

• Material: carbon and 7075-T6 aluminium
• Compatible with SRAM Red, Force eTap AXS 12-speed and SRM Origin
• Pitch circle diameter 110mm

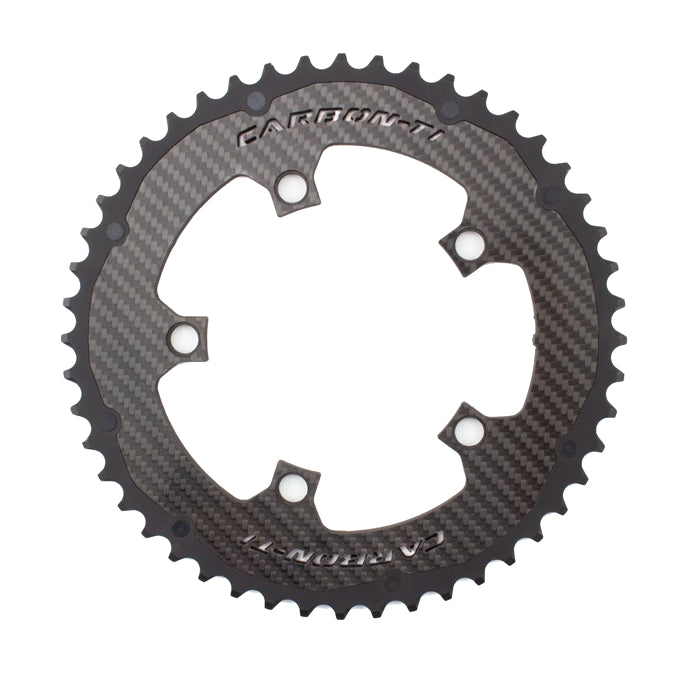

• Outer ring with 46 teeth

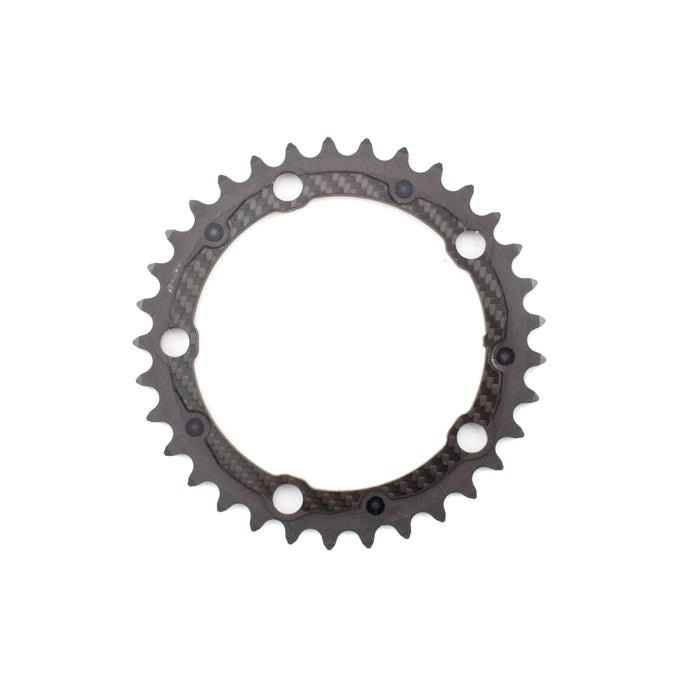

• Inner ring with 33 teeth
• 100% made in Italy

• Product Name: Carbon-Ti X-CarboRing Chainring - 110mm - X-AXS

• Manufacturer: Carbon-Ti

• Activity: Cycling

• Material: Aluminium, Carbon

• Usage bikesport: Road Bike

• Number of gears - front: 2

• Number of Gears - rear: 12

• Chainring version: round

• Model year: 2026

• Color: Black

• Weight: 95g
• Bolt Circle Diameter: 110 mm

• Number of teeth: 33, 46
