Campagnolo Ultra Torque OS-Fit BB Cups

DESCRIPTION

Campagnolo Ultra Torque OS-Fit BB Cups

Bottom bracket cups for the installation of Campagnolo and Fulcrum Ultra Torque cranksets at frames with oversize bottom bracket shells. These specific adapters are made of aluminium and have the same bearing seat function as the already renowned Ultra Torque threaded cups. The adapters simply replace the standard cups on frames with oversize bottom bracket shells. The adapters are about 20 grams lighter than standard cups.

Versions of the Ultra Torque OS-Fit bottom bracket cups:

	Shell Type	Shell x Diameter	Manufacturer's Item Code

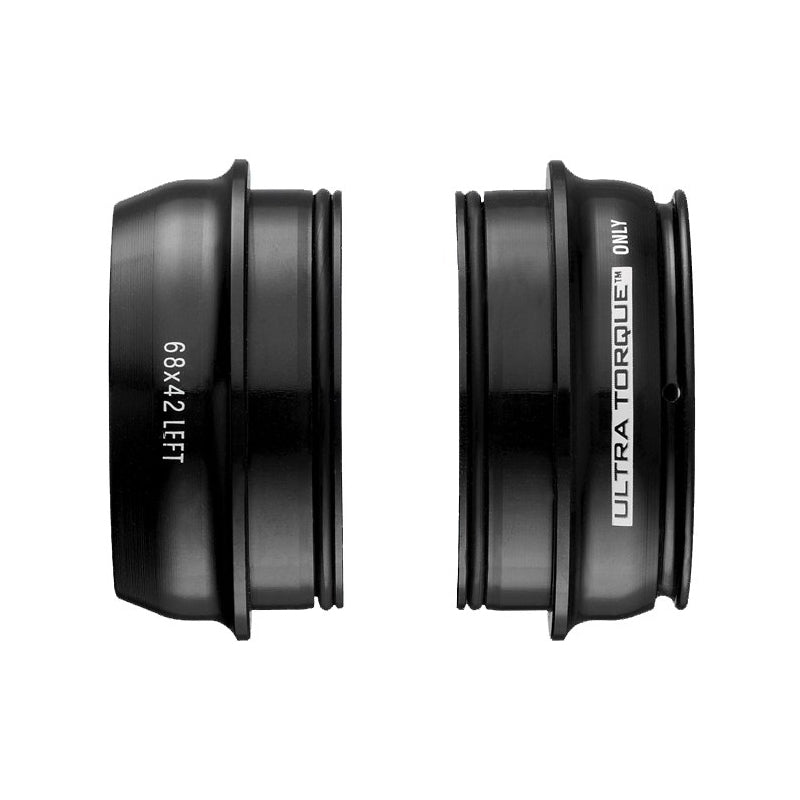

BB42-68-UT	BB30	68 x 42 mm	IC15-RE42
BB42-73-UT	BB30A	73 x 42 mm	IC19-UT73

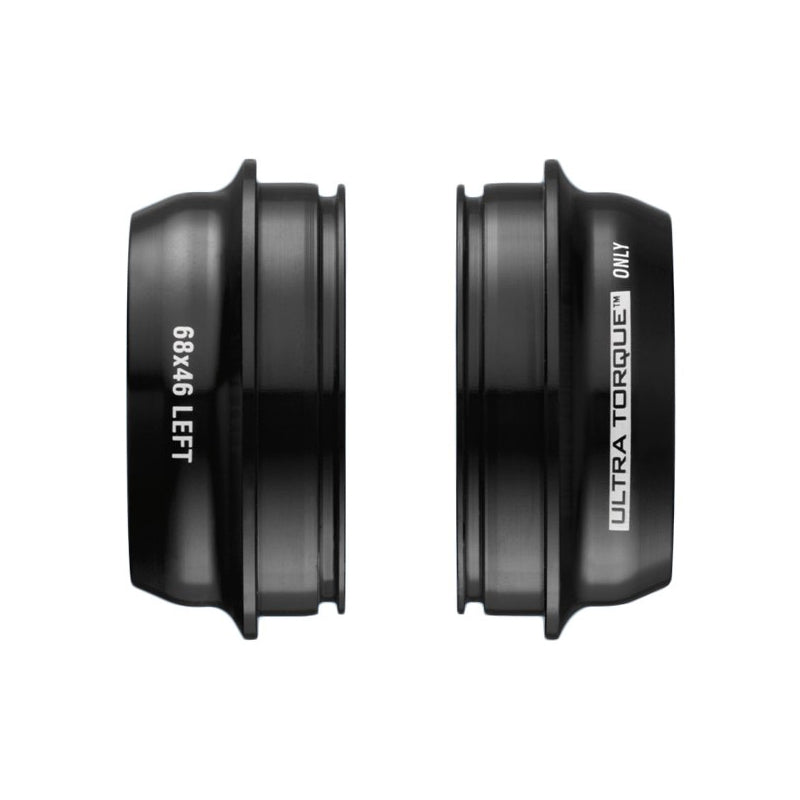

PF46-68-UT	Pressfit 30	68 x 46 mm	IC15-RE46

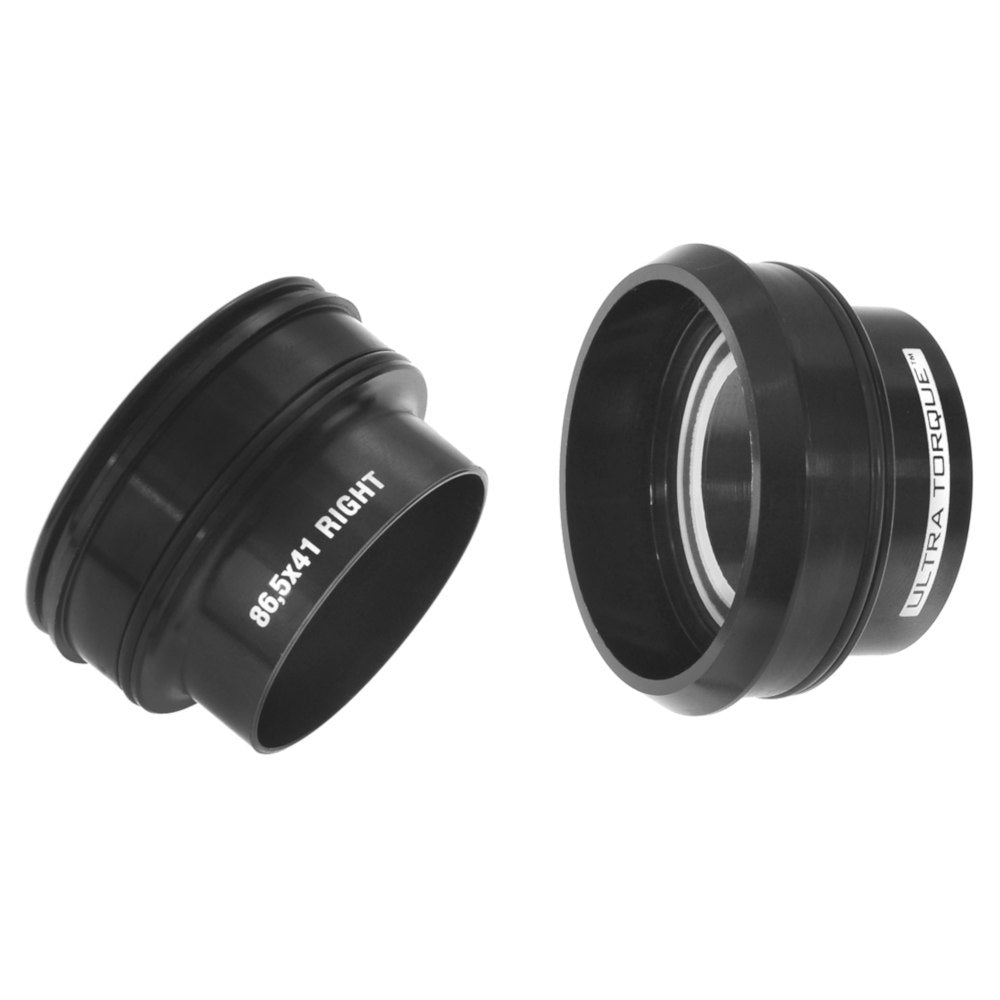

PF41-86,5-UT	Pressfit 86	86,5 x 41 mm	IC15-RE41

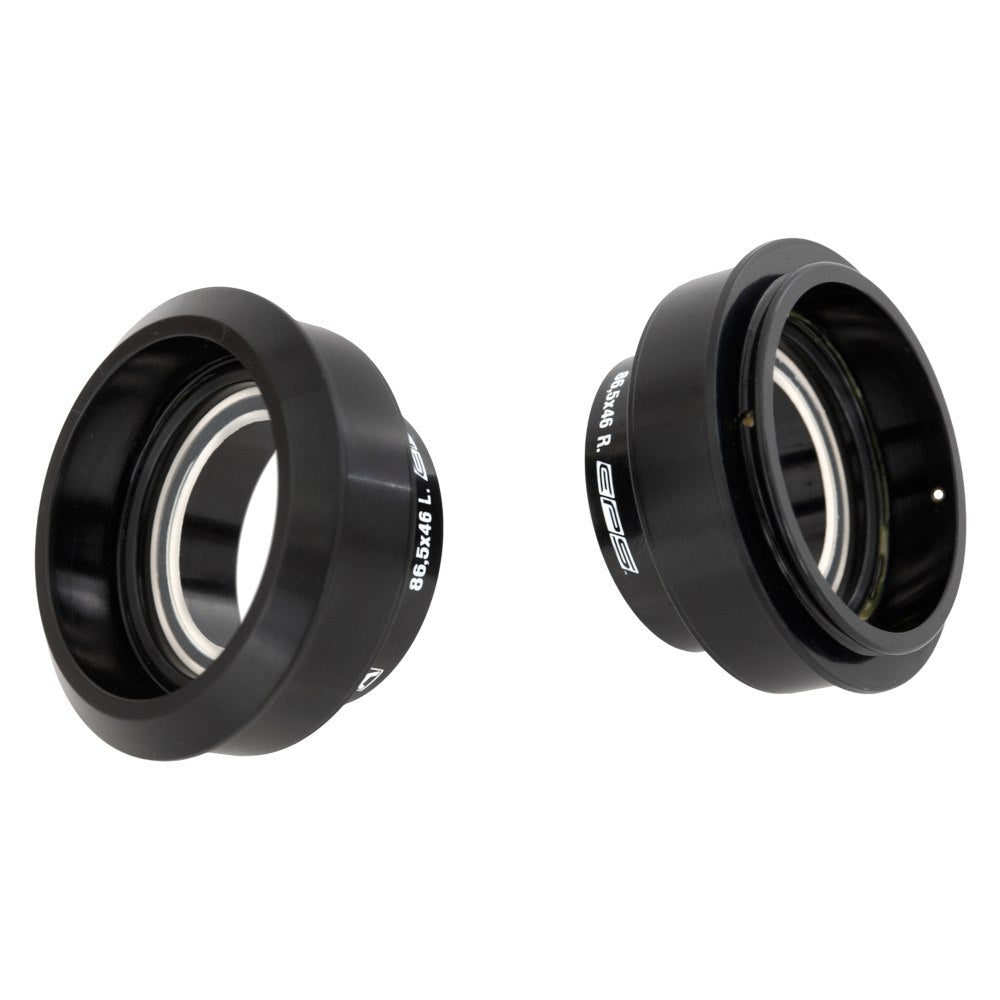

PF46-86,5-UT	BB386 EVO	86,5 x 46 mm	IC15-UT386
PF46-79-UT	BBright Pressfit	79 x 46 mm	IC15-UTR51E

For the installation of the bottom bracket cups the Campagnolo UT-BB140 tool is recommended.

Material: aluminium



FACT SHEET

Product Name	Campagnolo Ultra Torque OS-Fit BB Cups
Manufacturer	Campagnolo
Item Code	CAM219330
activity	Cycling
usage bikesport	Road Bike
bottom bracket type	BB30, BB386, Pressfit
bottom bracket case width	68mm, 73mm, 86.5mm, 79mm
bottom bracket construction	Bottom Bracket Cups
case diameter	41mm
Model year	2022
Collection	Full year
manufacturer item code	IC15-RE42 (BB30) IC19-UT73 (BB30A) IC15-RE46 (Pressfit 30) IC15-RE41 (Pressfit 86) IC15-UT386 (BB386 EVO) IC15-UTR51E (BBright Pressfit)
