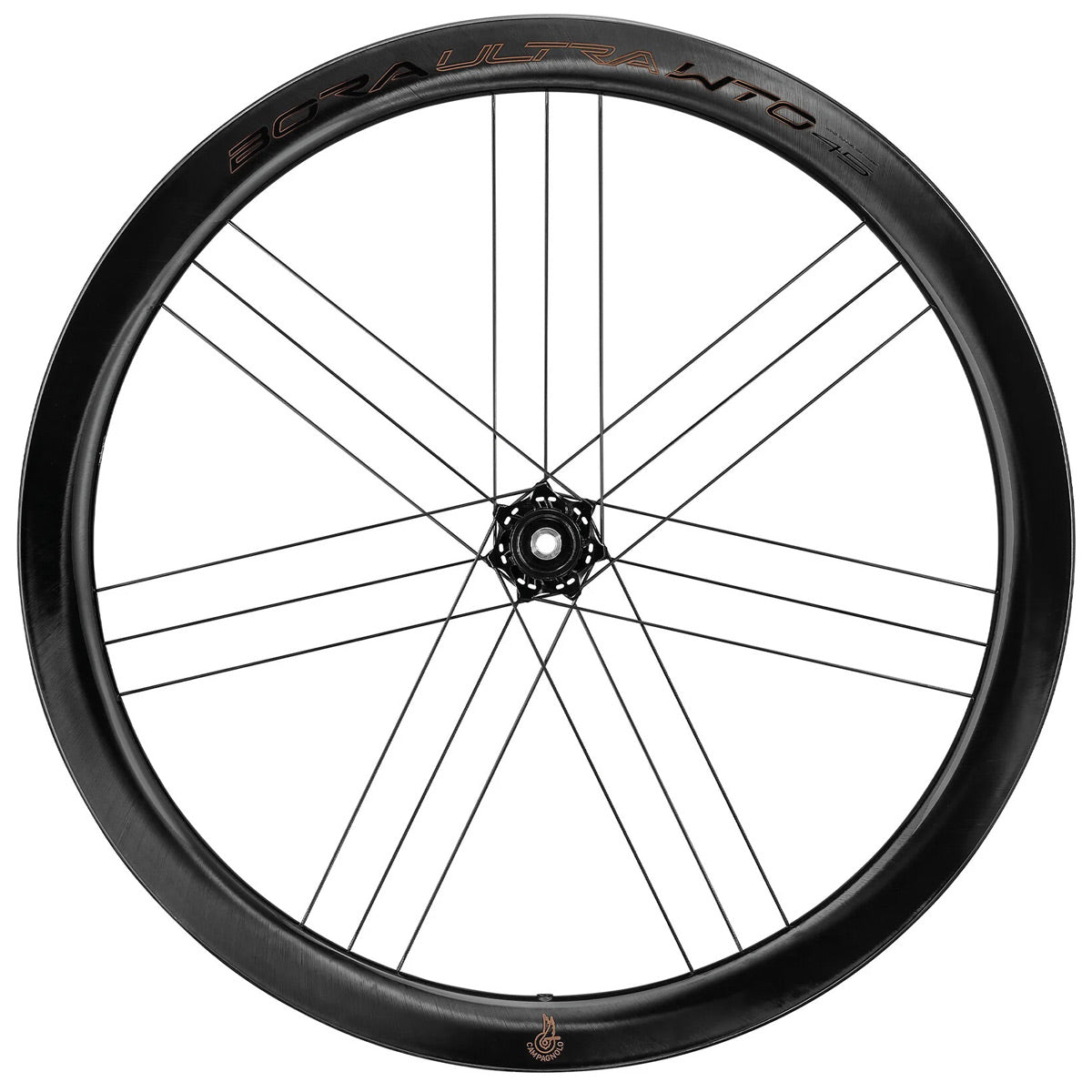

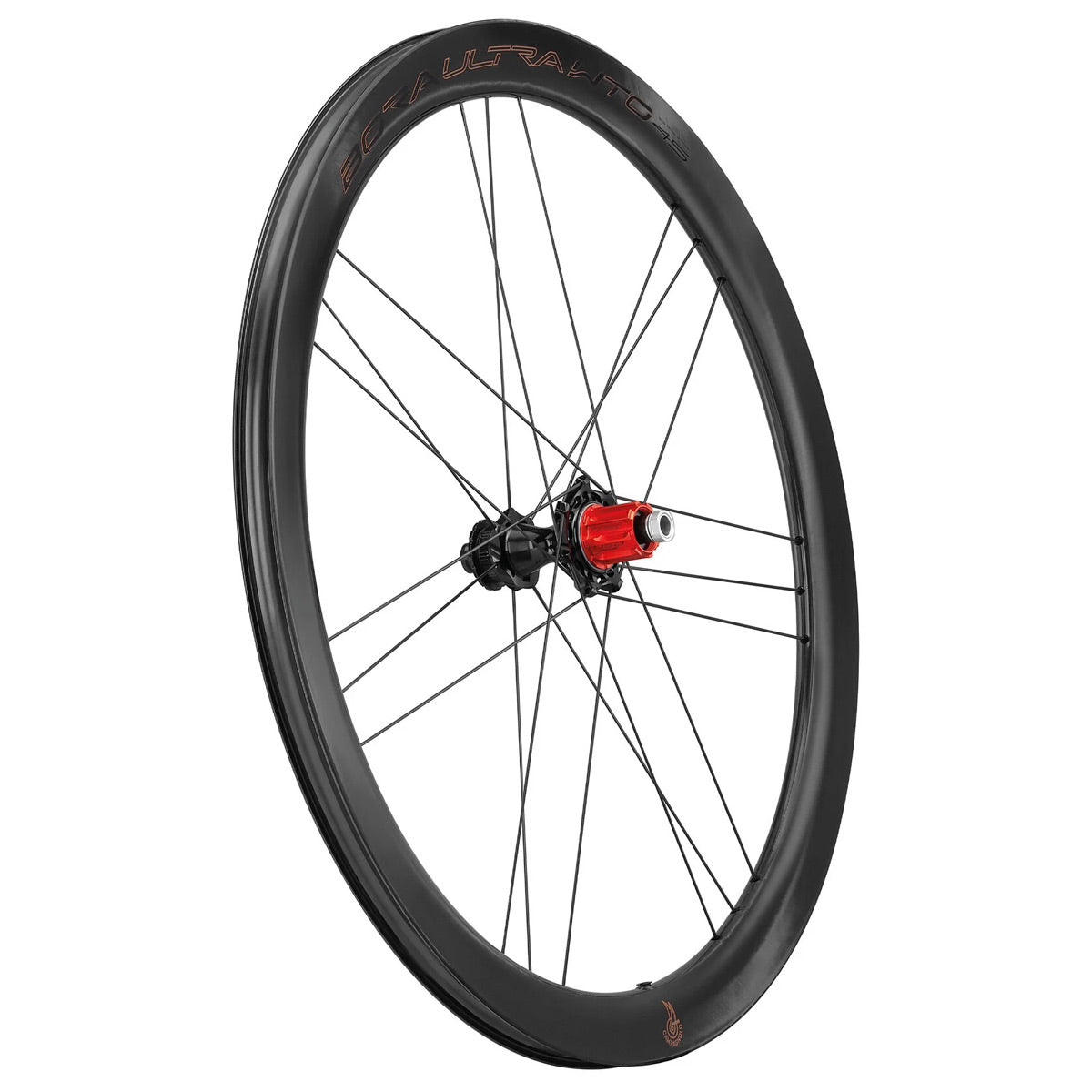

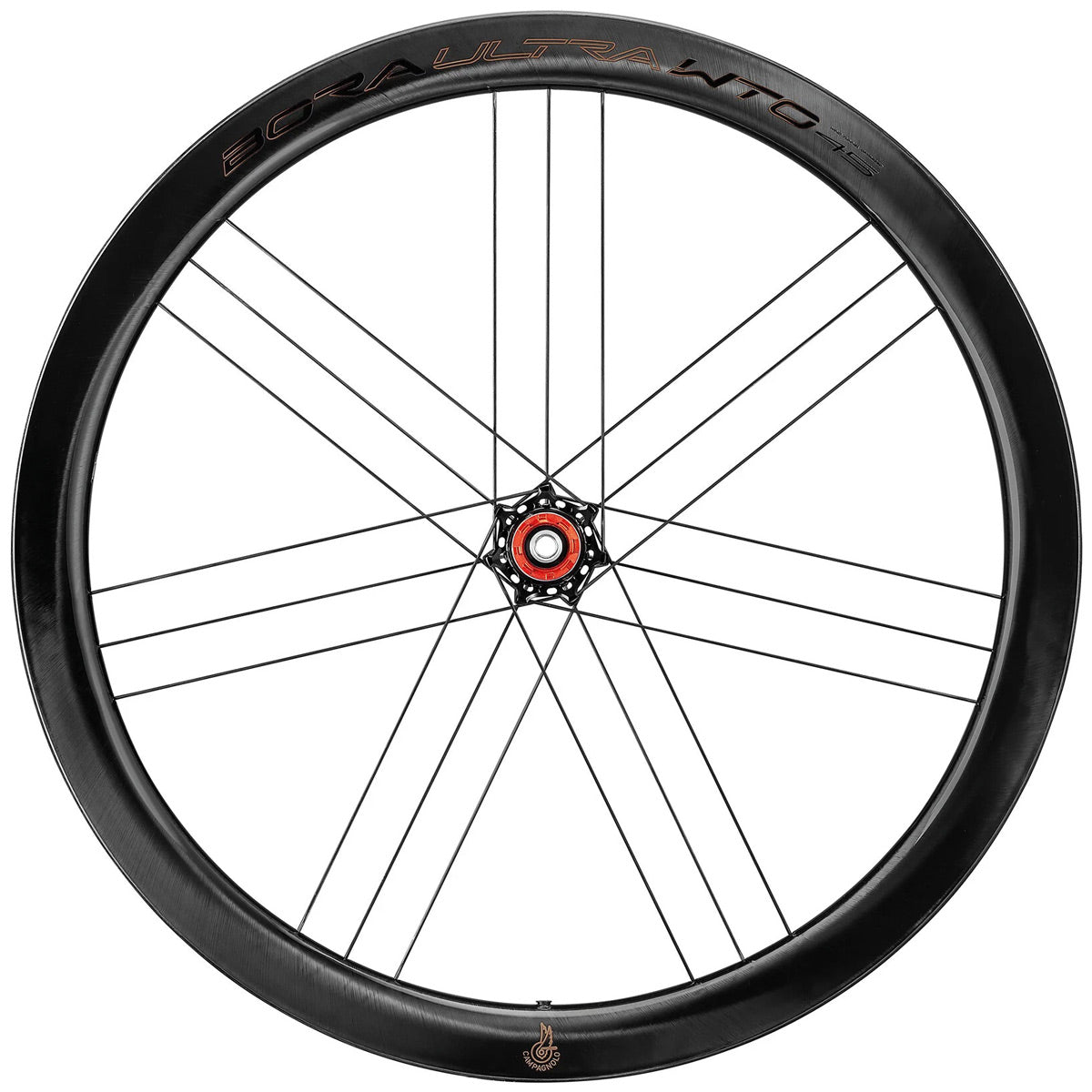

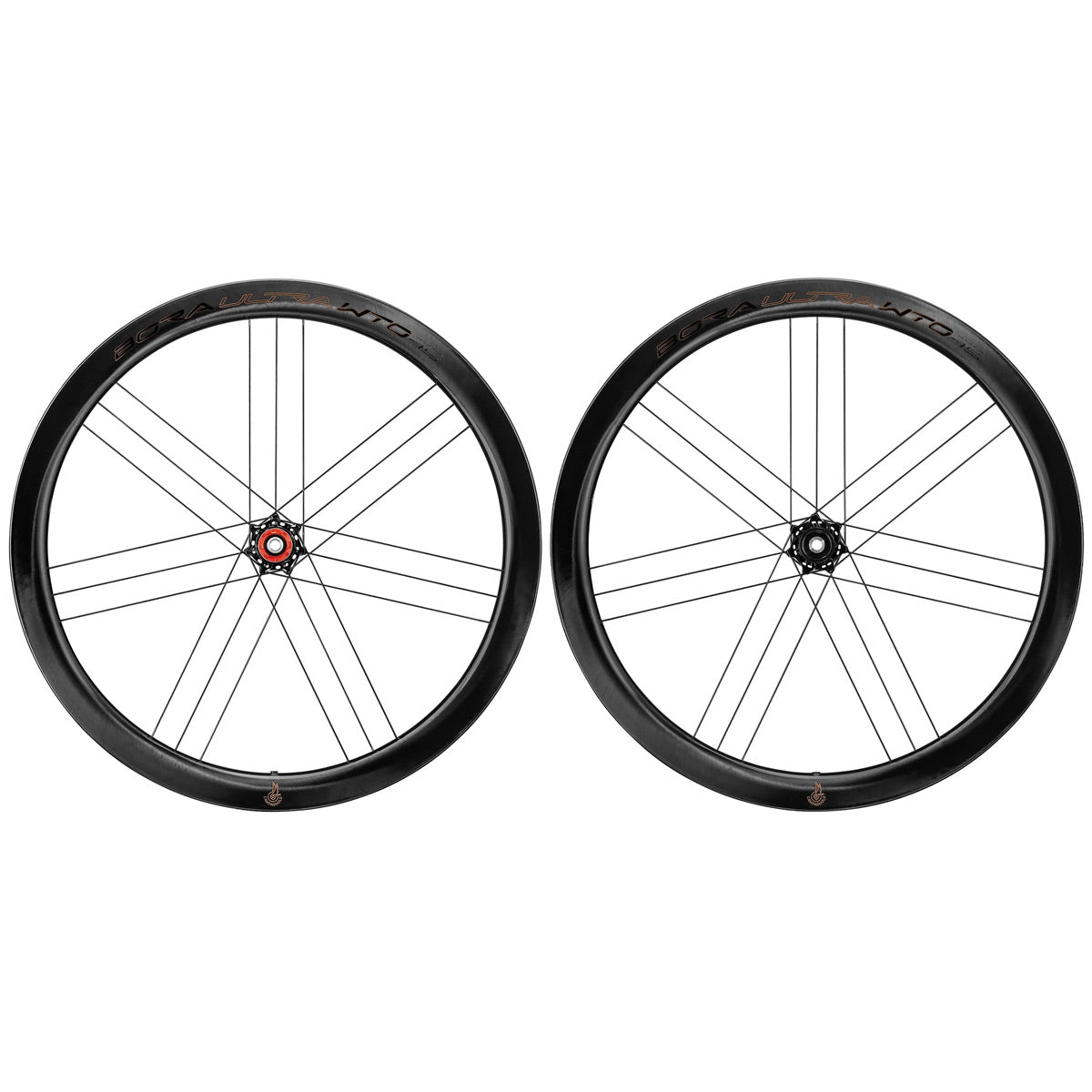

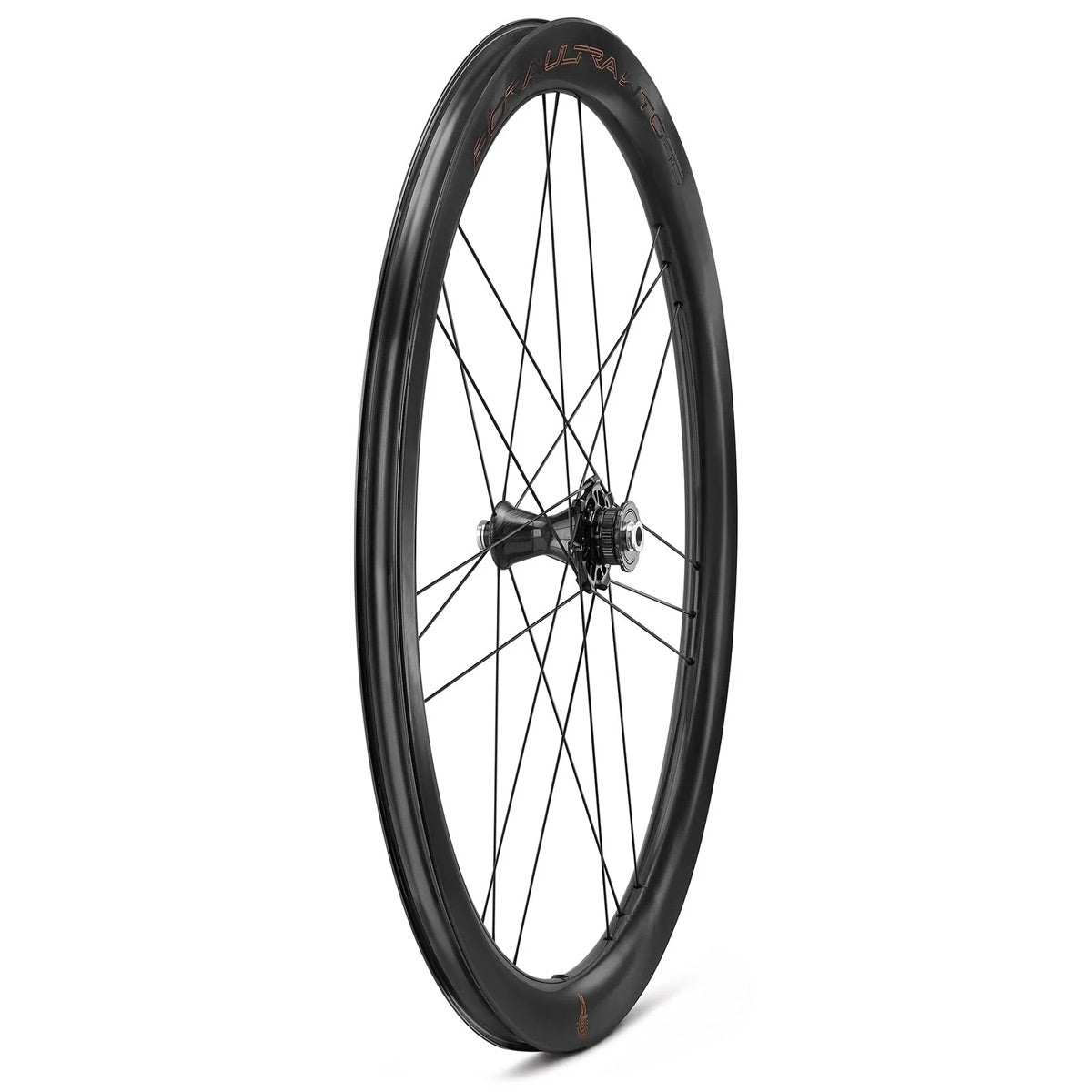

Campagnolo Bora Ultra WTO 45 C23 DB Wheelset

More than iconic: the perfect balance of speed, agility and stability, making it the best choice for all-round riders.

A sleek, Italian masterpiece. Refined through rigorous testing and proud craftsmanship to be a leader in its space. Superior in every aspect compared to the previous models – enhanced aerodynamic performance, lighter than ever, and superior control.

Campagnolo’s Bora Ultra WTO 45 has the perfect balance of speed, agility and stability, making it the best choice for all-round riders.

Now even lighter, thanks in part to its Hand Made Ultra-Light Carbon (HULC) construction, the Bora Ultra WTO 45 has slimmer Aero Elliptical spokes and hidden nipples to help slice through the air.

Campagnolo’s CULT ceramic bearings spin effortlessly within the front disc hub’s aerodynamic carbon body, and the 2-Way Fit rims are ready for immediate tubeless use without rim tape.

BECOME SPEED

Cut effortlessly through the wind with Campagnolo’s internal spoke seating system and iconic G3 lacing. The internal fibreglass-reinforced polymer seats for the spoke nipples ensure perfect alignment with the spokes – reducing real-world stressors on the components. The new rim profile is drop-shaped for unrestricted aerodynamic flow and was crafted to reduce overall drag by a significant percentage. This innovative construction allows the wheels to be built lighter and fully optimised for cutting through the wind.

FEEL WEIGHTLESS

Climb faster and react quicker with ultra-lightweight materials, the N3W freewheel hub, and premium engineering details. This wheelset is made with Campagnolo’s H.U.L.C process to ensure optimisation of the profile and the quantity of carbon fibre and proprietary resin used for increased stiffness and control. The C-LUX finish on our wheels ensures a high-gloss, lacquer-free surface.

POSSESS PURE CONTROL

Carve your perfect line with the iconic Campagnolo G3 lacing and all-new C23 rims, allowing a greater range of tyre widths to be fitted. This wheelset features a unique lacing structure – boosting rigidity and performance output. Seamless homologation of the premium carbon compounds ensures top resilience and zero points of weakness.

ASSEMBLY

The Bora™ Ultra WTO™ 45 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability.

H.U.L.C. HANDMADE ULTRA-LIGHT CARBON

H.U.L.C. (Handmade Ultra-Light Carbon) is the exclusive Campagnolo technology for the production of carbon rims that optimizes the carbon fibre and resin ratio to increase stiffness and control.

G3 SPOKE GEOMETRY

Campagnolo’s iconic G3 geometry challenges the conventional configuration of wheel spokes on racing bikes. Groups of three parallel straight-pull spokes are in fact, arranged in a ratio of 2:1.

AERO MO-MAG

A completely internal hidden system that maximises aerodynamics and enables the construction of a lighter rim.

CULT - CERAMIC ULTIMATE LEVEL TECHNOLOGY

Thanks to their properties, produced to a specific Campagnolo design, CULT bearings offer extremely low friction, enabling maximum performance and energy savings when pedaling.

Bora Ultra WTO wheels come with

• Aero Mo-Mag nipple maintenance kit
• Tubeless valves
• AFS lockrings
• Campagnolo wheel bags
• Campagnolo accessories bag
• tyre levers

• Product Name: Campagnolo Bora Ultra WTO | 2-Way Fit | AFS - 12x100mm 12x142mm - XDR

• Manufacturer: Campagnolo

• Activity: Cycling

• Material: Carbon

• Usage bikesport: Road Bike

• Hubs: Bora Ultra, front carbon body

• Spokes: Aero Elliptical, straight pull, double-butted 1.5mm

• Rims: UD high-strength carbon fibre

• Number of Gears - rear: 11, 12, 13

• Wheel size: 28" (622mm)

• Axle standard: 12x100mm (FW), 12x142mm (RW)

• Wheel version: Wheelset, Wheelset 1300-1700g

• Freehub Body: XDR (SRAM 12/13s Road)

• Braking system: Centerlock/AFS

• Tire type: Wire Bead Tire, Folding Tire, Tubeless Ready

• Fitting tire dimensions: 28-35mmETRTO: 23-622

• Rim width: 28.4mm

• Inner profile width: 23mm

• Rim profile height: 45mm

• Nipples: Aluminium Aero Mo-Mag, self-locking, internal

• Model year: 2025

• Collection: Full year

• Color: Black

• Weight: 1325g

• Number of Spoke Holes: 21

• Weight Source: Manufacturer
