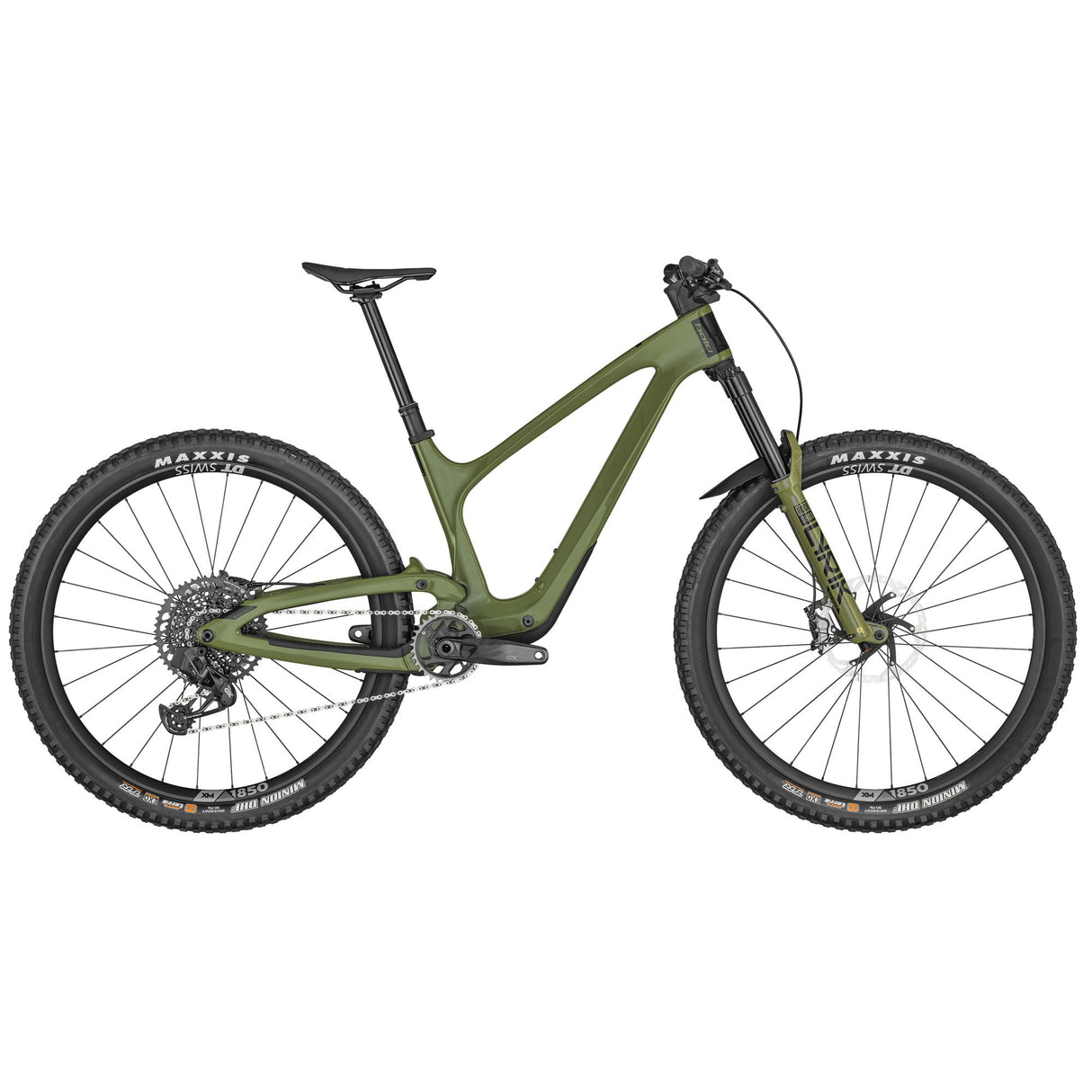

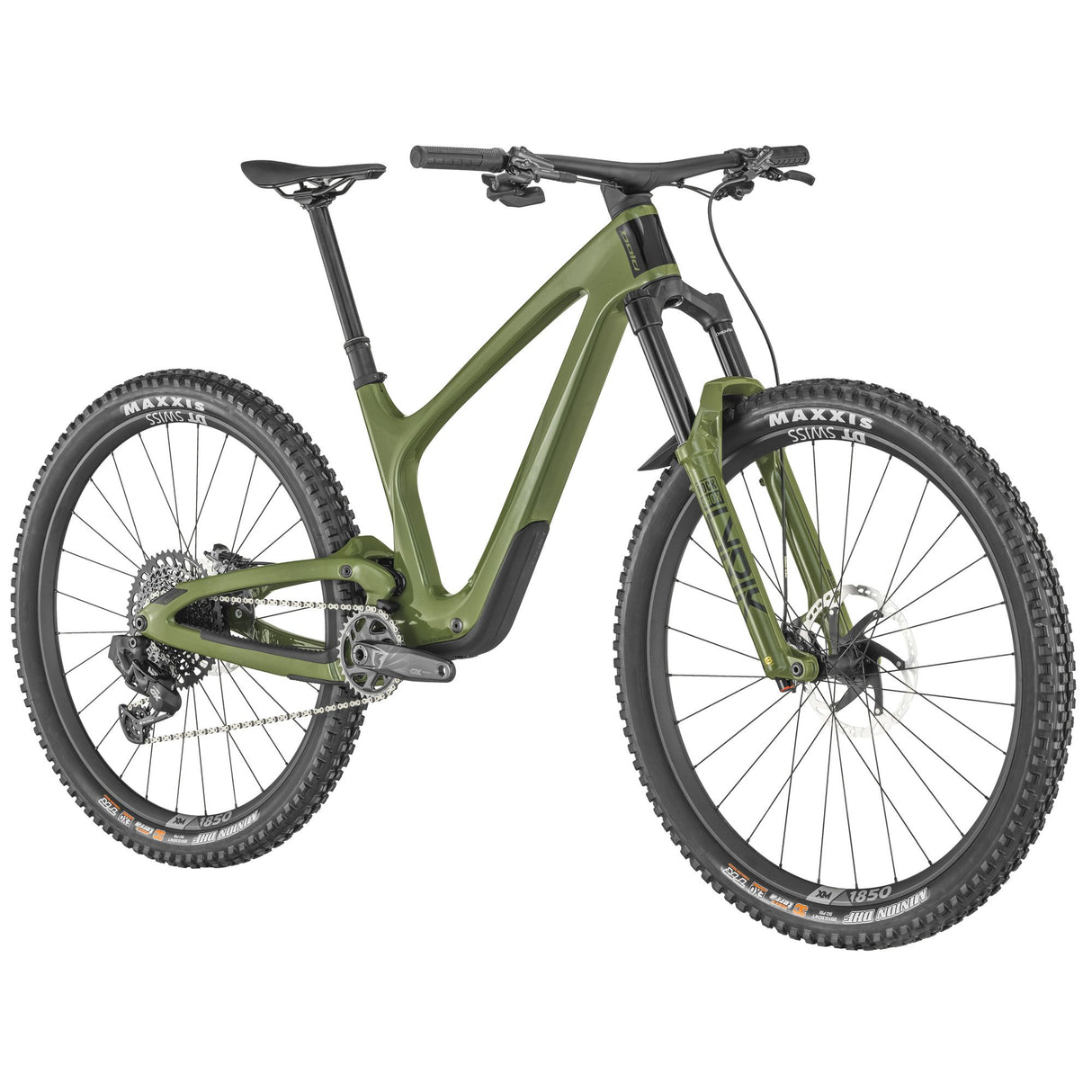

BOLD Linkin LT GX Eagle AXS Mountain Bike

FEATURES

• LINKIN Carbon HMX Frame
• RockShox Lyrik Ultimate Air, 160mm
• RockShox Nude 5 RLC3
• SRAM GX Eagle AXS / Wireless
• Shimano XT M8120 4 Piston Disc
• DT Swiss XM 1850 Spline
• Syncros Hixon iC Carbon
• Model: 291168

SPECIFICATIONS

• Frame: Bold Linkin 150 / Carbon HMX Integrated Suspension Technology / IST VP Vario Tech, Head angle and BB height / Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
• Fork: RockShox Lyrik Ultimate Air Charger 3 Damper HSC - LSC - LSR adjustable Butter cups / 15x110mm Maxle Stealth 44mm offset / Tapered steerer 160mm travel
• Rear Shock: RockShox NUDE 5 RLC3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Ad.j / Debon Air / Reb. Adj. 185X55mm / Travel 150-100-Lockout
• Remote System: TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes
• Rear Derailleur: SRAM GX Eagle AXS 12 Speed Wireless Electronic Shift System
• Shifters: SRAM GX Eagle AXS Rocker Controller
• Crankset: SRAM GX Eagle DUB 55mm CL / 32T
• Chainguide: Bold custom
• BB-Set: SRAM DUB PF 92 MTB Wide / shell 41x92mm
• Chain: SRAM CN GX Eagle
• Cassette: SRAM XG1275 / 10-52 T
• Brakes: Shimano XT M8120 4 Piston Disc
• Rotor: Shimano SM-RT76 / 6 Bolt / 203/F and 180/R
• Handlebar: Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mmrise back sweep 8° / 780mm Syncros Endurance lock-on grips
• Seatpost: Syncros Duncan Dropper Post 1.5 34.9mm Size S 170mm / Size M, L & XL 200mm
• Seat: Syncros Tofino 1.5 Regular Titanium rails
• Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
• Wheelset: DT Swiss XM 1850 Spline 6 Bolt F: 15x110mm / R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool
• Front Tire: Maxxis Minion DHF / 2.5" / 60TPI Foldable Tubeless Ready / EXO
• Rear Tire: Maxxis Minion DHF / 2.5" / 60TPI Foldable Tubeless Ready / EXO
• Extras: Save the Day Kit / SRAM AXS Powerpack/ Syncros Fork Fender
• Accessories: Syncros Eco Sealant
