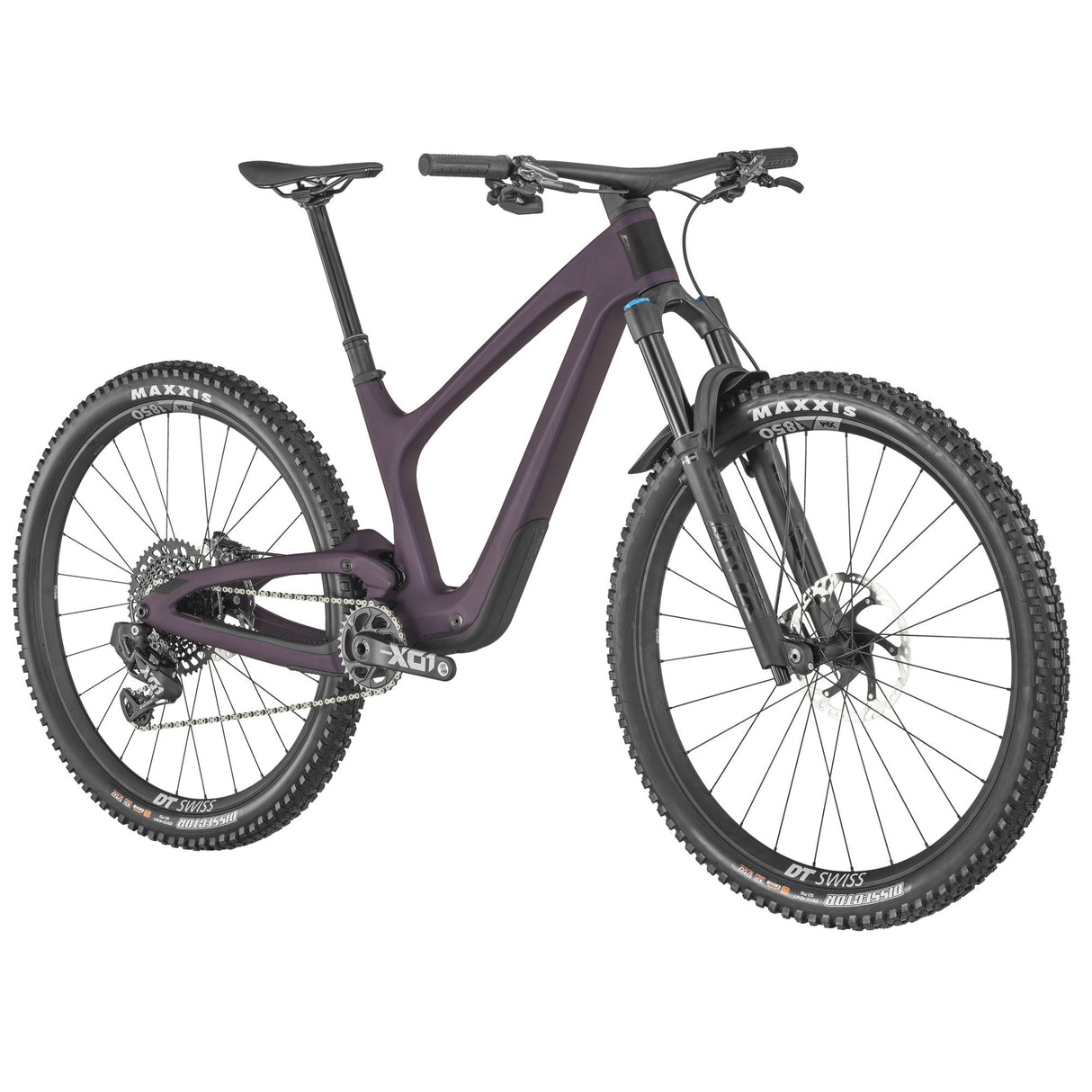

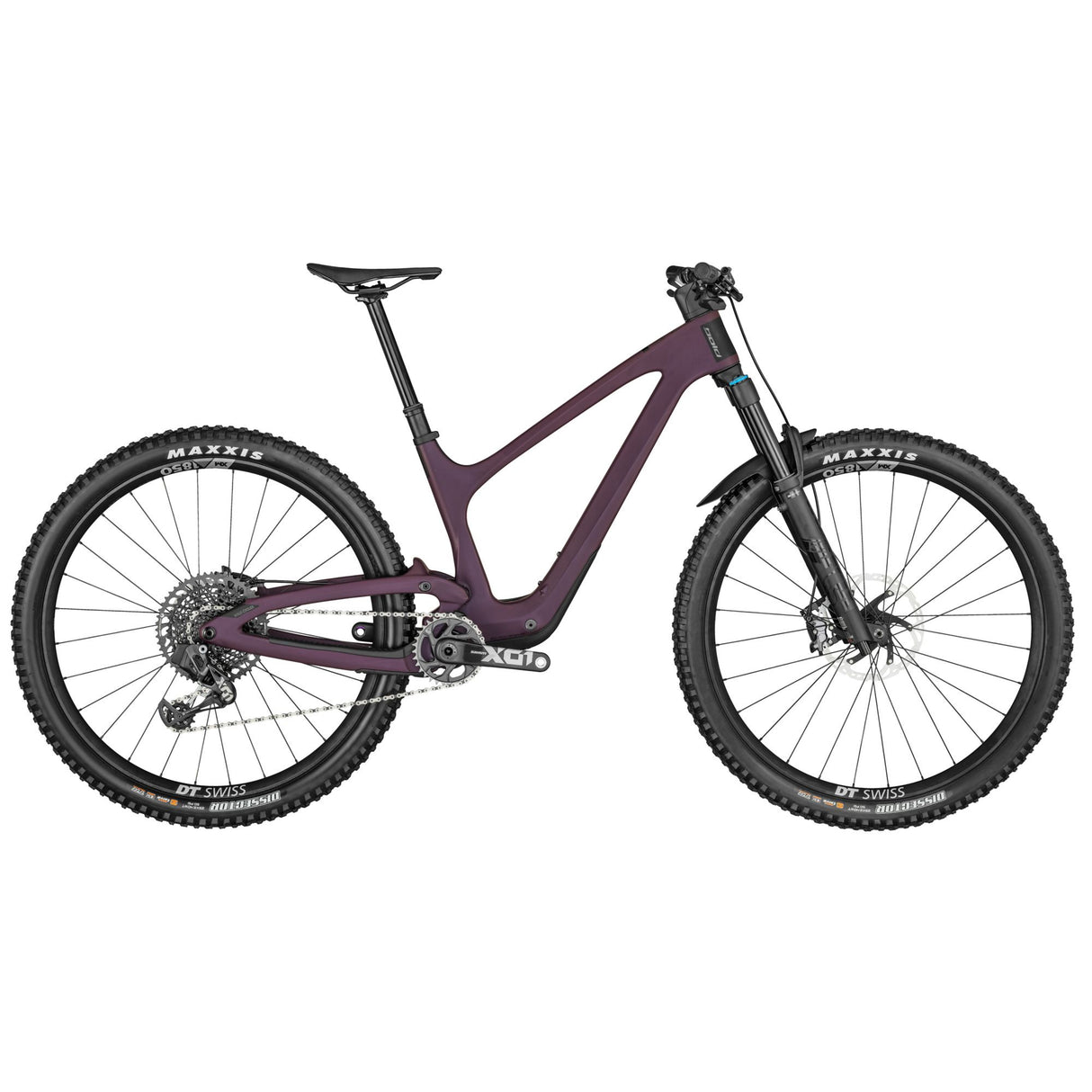

BOLD Linkin 135 Ultimate X01 AXS Mountain Bike

FEATURES

• LINKIN Carbon HMX Frame
• FOX 36 Float Perf. Elite, 140mm
• FOX Nude 5T EVOL
• SRAM X01 Eagle AXS / Wireless
• Shimano XT M8120 4 Piston Disc
• DT Swiss XM 1850 Spline
• Syncros Hixon iC Carbon
• Model: 291171

SPECIFICATIONS

• Frame: Bold Linkin 135 / Carbon HMX Integrated Suspension Technology / IST VP
  Vario Tech, Head angle and BB height / Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline

• Fork: FOX 36 Float Performance Elite Grip 2 Air HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 140mm travel

• Rear Shock: FOX NUDE 5T EVOL Trunnion Custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Reb. Adj. T185X55mm / Travel 135-90-Lockout

• Remote System: TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes

• Rear Derailleur: SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System

• Shifters: SRAM GX Eagle AXS Rocker Controller

• Crankset: SRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T

• BB-Set: SRAM DUB PF 92 MTB Wide / shell 41x92mm

• Chain: SRAM CN GX Eagle

• Cassette: SRAM GX XG1275 / 10-52 T

• Brakes: Shimano XT M8120 4 Piston Disc

• Rotor: Shimano SM-RT76 / 6 Bolt / 203/F and 180/R

• Handlebar: Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips

• Seatpost: Syncros Duncan Dropper Post 1.5 34.9mm Size S 170mm / Size M, L & XL 200mm

• Seat: Syncros Tofino 1.5 Regular Titanium rails

• Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

• Wheelset: DT Swiss XM 1850 Spline 6 Bolt F: 15x110mm / R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool

• Front Tire: Maxxis Dissector / 2.4" / 60TPI Foldable Tubeless Ready / EXO

• Rear Tire: Maxxis Dissector / 2.4" / 60TPI Foldable Tubeless Ready / EXO

• Extras: Save the Day Kit/ SRAM AXS Powerpack/ Syncros Fork Fender

• Accessories: Syncros Eco Sealant

• Approx weight in KG: 13.9kg / 14.3kg

SIZE CHART
