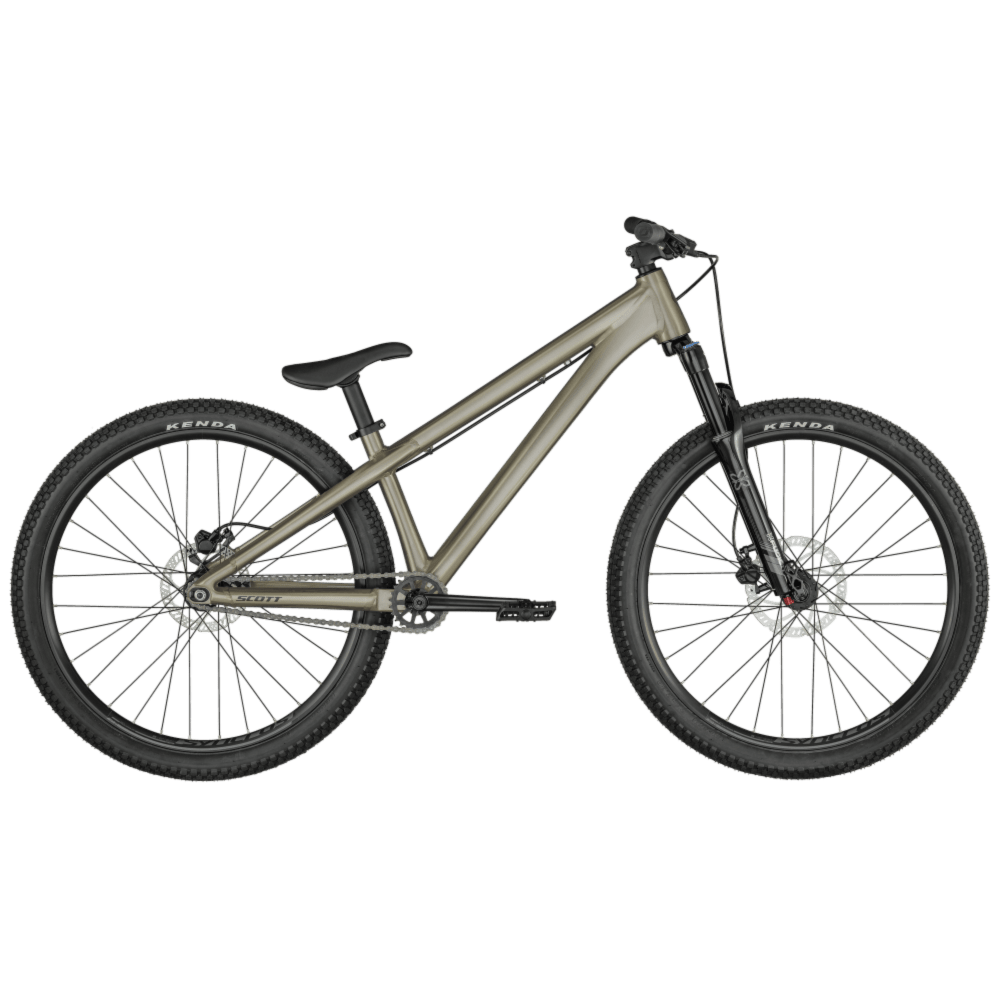

Scott Bike Voltage YZ 0.1

FEATURES

• Voltage Alloy Frame
• X-Fusion Slant DJ 100mm
• Singlespeed
• Tektro HDM275 Disc brakes
• Kenda K-RAD 26"x 2.3 Tires

SPECIFICATIONS

FRAME

• Voltage YZ DJ 6061 Alloy
• Hydroformed tubing
• Disc Dropout / horizontal for 135x10mm singleSpeed

FORK

• X-Fusion Slant DJ
• 100mm travel / Air / Lo Comp / Rebound

CRANKSET

• SCOTT Cr-Mo 3-piece cranks
• 170mm / 25T Alloy BMX sprocket

BB-SET

• Jien-Yuan BB92 / 19mm Axle

CHAIN

• KMC Z510

CASSETTE

• Sprocket / 12 T

BRAKES

• Tektro HDM275 Hydr. Disc

ROTOR

• Tektro / 6 Bolt / 160mm

HANDLEBAR

• Syncros Hixon 2.0 Rise
• 31.8mm / 800mm / 20mm Rise
• Syncros Pro DH lock-on grips

H'STEM

• Syncros XM1.5
• 31.8mm / 40mm / 0°

SEATPOST

• Syncros DJ1.5 / Pivotal / 31.6mm

SEAT

• Syncros DJ1.5 / Pivotal

HEADSET

• Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8"
• OD 50/62mm / ID 44/56mm

HUB (FRONT)

• Formula DC-51 / 15x100mm / thru axle

HUB (REAR)

• Formula DC42-N
• w/tracknut / single Speed

SPOKES

• Stainless 14G / black / 2.0mm

RIMS

• Syncros MD25 Disc / 32H

FRONT TIRE

• Kenda K905 K-RAD
• 30TPI / wire / 26x2.3"

REAR TIRE

• Kenda K905 K-RAD
• 30TPI / wire / 26x2.3"

PEDALS

• Wellgo B107.N flat

APPROX WEIGHTS IN KG

• 12.80 (with tubes)

APPROX WEIGHTS IN LBS

• 28.22 (with tubes)

MAX. SYSTEM WEIGHT

• 128 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

SIZE & GEOMETRY
