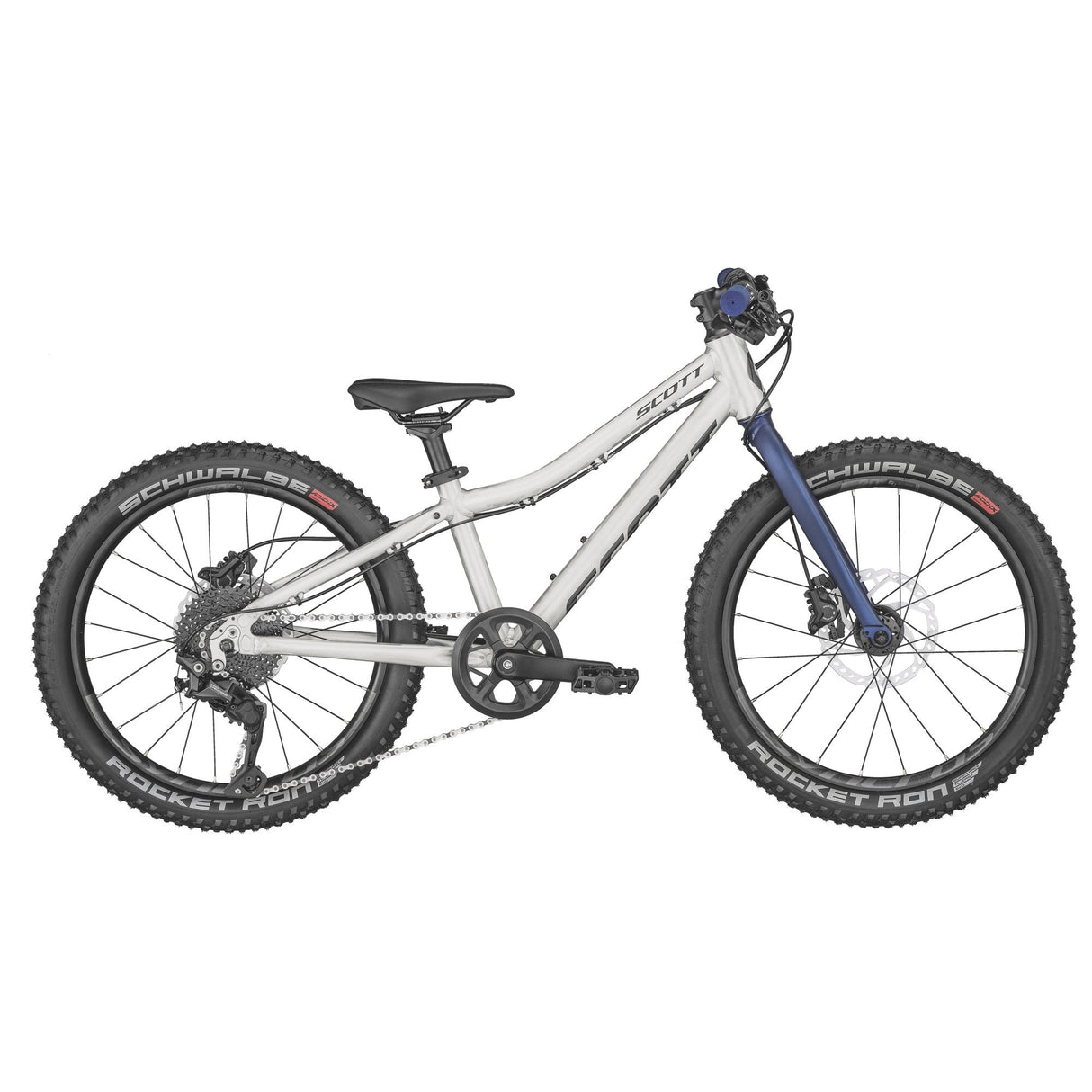

Scott Scale RC 200

FEATURES

• JR20 Rigid Disc Light Alloy Frame
• Rigid Fork / IS
• Shimano Deore 10 Speed
• Shimano hydr. Disc Brakes
• Schwalbe Rocket Ron

SPECIFICATIONS

FRAME

• JR20 Rigid Disc light
• Alloy 6061 / Bended TT
• Semi int. HT / SCOTT dropout / IS

FORK

• AL-6061 rigid fork / 1 1/8" / IS

REAR DERAILLEUR

• Shimano Deore RD-M5120
• 10 Speed

SHIFTERS

• Shimano Deore SL-M4100-R
• 10 Speed

CRANKSET

• Prowheel BOOM-32P / 127MM
• 32T Alloy / w/CG PVC single cover

BB-SET

• Feimin / BB68 / cartridge / square taper

CHAIN

• KMC X10EL

CASSETTE

• SunRace CSMS0
• 10 Speed / 11-36

BRAKE LEVERS

• Shimano BL-MT501

BRAKES

• Shimano BR-MT500

ROTOR

• Shimano SM-RT66 / IS / 160mm

HANDLEBAR

• Premetec 6003F / Flat Bar / 25.4mm clamp / 560mm
• Syncros Youth Pro 100 Grip

H'STEM

• LEADTEC LCS-7091
• 50mm / 25.4mm clamp

SEATPOST

• Alloy 2014 / 0mm Offset
• 27.2x250mm

SEAT

• Syncros Future Pro

HEADSET

• Feimin FP-H809, sealed bearings

HUB (FRONT)

• Formula DC-140-F / QR

HUB (REAR)

• Formula DC-38-R / QR

SPOKES

• 15g / UCP / black

RIMS

• Alexrims MD19 / Disc

FRONT TIRE

• Schwalbe Rocket Ron
• Evolution / ADDIX Speed
• 67EPI / 20x2.25" / folding

REAR TIRE

• Schwalbe Rocket Ron
• Evolution / ADDIX Speed
• 67EPI / 20x2.25" / folding

PEDALS

• MARWI SP-700 / w/Reflector

APPROX WEIGHTS IN KG

• 7.90

APPROX WEIGHTS IN LBS

• 17.42

MAX. SYSTEM WEIGHT

• 50 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage

GEOMETRY
