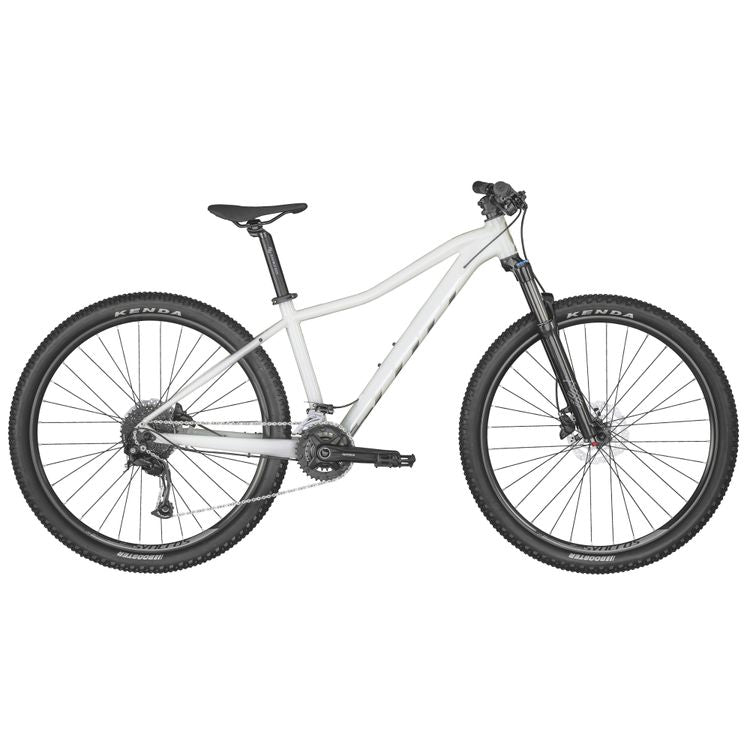

Scott Contessa Active 30 Mountain Bike

FEATURES

• Active 700/900 Alloy Frame
• Suntour XCR32/X1-LO-R 100mm Fork
• Shimano Alivio 18 Speed
• Shimano Brakes
• Kenda Booster

SPECIFICATIONS

FRAME

• Contessa Active 700/900 series / Alloy 6061 Custom Butted Tubing
• OLD 135mm / BSA73
• Internal Cable Routing / replaceable hanger

FORK

• Suntour XCR32/X1-LO-R / Hyd. Lockout / Reb. Adj.
• 100mm travel

REAR DERAILLEUR

• Shimano Deore RD-3100
• 18 Speed

FRONT DERAILLEUR

• Shimano FD-M3120 Side Swing / 31.8mm

SHIFTERS

• Shimano SL-M3100
• R-fire plus

CRANKSET

• Shimano FC-MT210-2
• 2-piece Design / 36x22

BB-SET

• Shimano BB-MT500
• Hollowtech II / threaded

CHAIN

• KMC X9

CASSETTE

• Shimano CS-HG200-9 / 11-36T

BRAKES

• Shimano BR-MT200 / Hydr. Disc

ROTOR

• Shimano SM-RT10 CL rotor / F&R 160mm

HANDLEBAR

• Syncros 3.0 / 680mm
• black / 31.8mm / 12mm rise / 9° BS
• Syncros Women Pro grip

H'STEM

• Syncros 3.0 / 7° / Black

SEATPOST

• Syncros 3.0
• 31.6mm / 350mm / Black

SEAT

• Syncros Savona 2.5 V-Concept

HEADSET

• Syncros OE Press Fit / 1 1/8"
• OD 50mm / ID 44mm

HUB (FRONT)

• Shimano HB TX505

HUB (REAR)

• Shimano FH-TX5058

SPOKES

• 14 G / stainless / black

RIMS

• Syncros X-20 Disc
• 32H / black

FRONT TIRE

• Kenda Booster
• 2.4" / 30TPI

REAR TIRE

• Kenda Booster
• 2.4" / 30TPI

PEDALS

• VP VP-536

APPROX WEIGHTS IN KG

• 14.10

APPROX WEIGHTS IN LBS

• 31.09

MAX. SYSTEM WEIGHT

• 128 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

GEOMETRY
