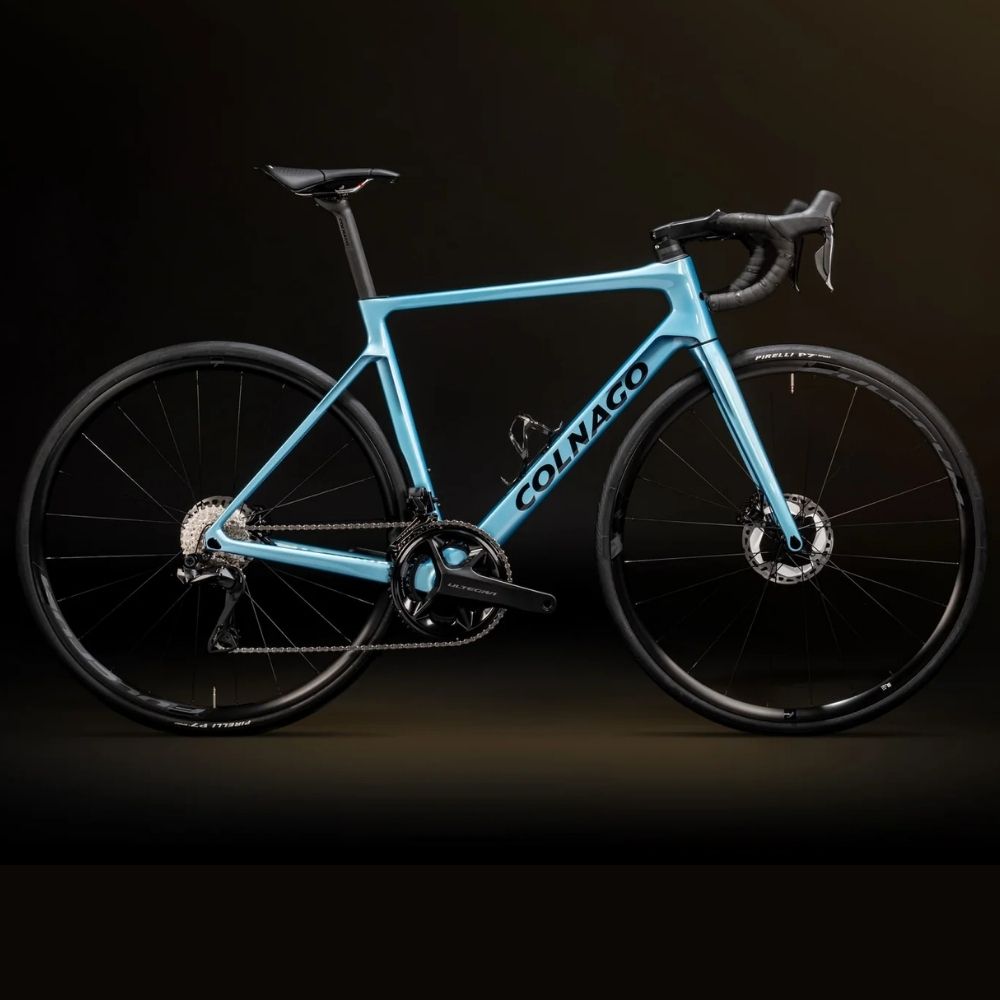

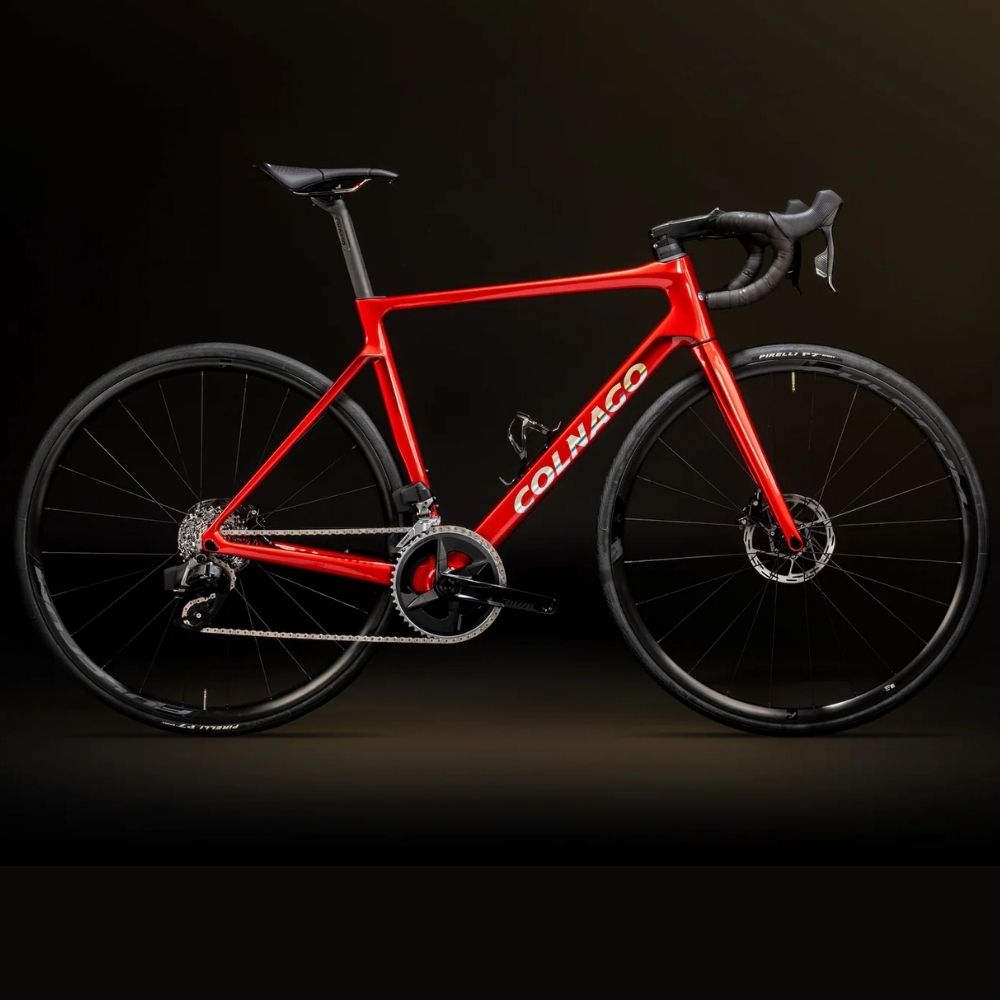

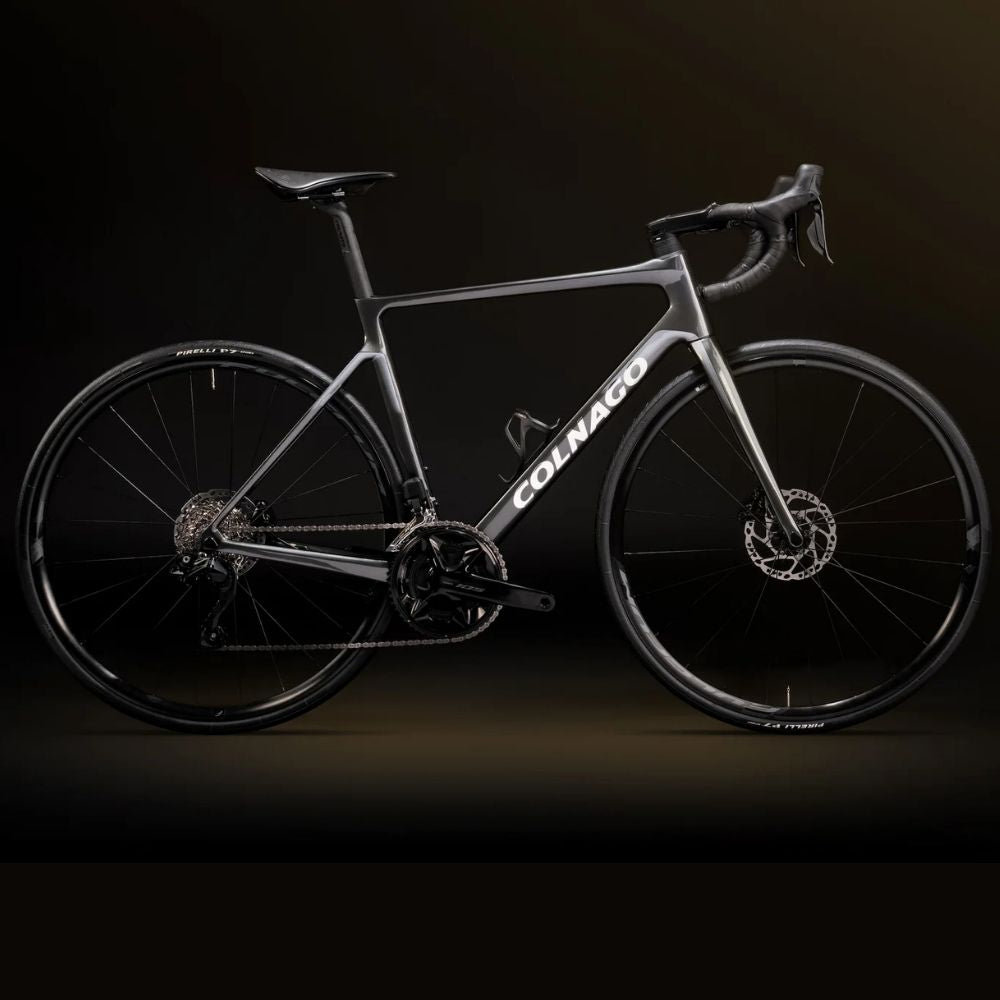

Colnago V4 105 Di2 Vision SC45 Road Bike

Lightness and responsiveness, with Colnago charm

The Colnago V4 is an all-around bicycle, a bike that is extremely fun to ride and has a clean and refined design. The frame is a monocoque, which is stiff, solid, reactive, and which enjoys the same carbon layup R&D and aerodynamic studies that led to the realisation of the V4Rs.

Quality carbon and fittings designed to offer an excellent level of performance make the V4 a perfectly balanced bike in every respect. The design combines technical features with light and aerodynamic details.

• Shorter head tube and longer fork than previous models for enhanced rideability and responsiveness. These features - combined with quality carbon - make this bike perfectly suited to both climbs and flatter terrain.

• The fork is designed specifically for disc brakes and has concave chain stays to accommodate tyres up to 30mm (nominal).

• The cables run inside the Colnago SR10 stem and then through the fork stem. This makes for an extremely sleek and technically more aerodynamic frame.


• Series: V Series

• Model: Colnago V4

• Frame (material): Monocoque carbon.

• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section

• Headset: ACROS SS 1"1/4 3547 bearing

• Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section

• Through axles: Diameter: 12 mm. Length: 100 mm (front) - 142 mm (rear)

• Shifting system: Shimano 105 R7170 Di2 Disc

• Front derailleur: Shimano 105: Shimano FD-R7150

• Rear derailleur: Shimano 105: Shimano Shadow RD-R7150

• Chain: Shimano 105: Shimano CN-M7100 12V

• Crankset: Shimano 105: 50-34T

• Cassette: Shimano 105: 11-34 12v

• Bottom bracket: T47

• Crank length: 170 mm, 172.5 mm

• Brakes: Shimano 105 R7170, 160 mm Front / 140 mm Rear, SM-RT64 rotors

• Disc size: 160 mm Front/ 140 mm Rear

• Brake lever: Shimano 105 ST-R7170

• Brake calliper: Shimano 105 BR-R7170

• Wheels: Vision SC 45 Disc

• Material: Carbon – with hooks

• Rim height: 45mm

• Internal channel width: 21 mm

• Hubs: Hubs with direct-pull spokes

• Through axles: Front: HH12-100 - Rear: HH12-142

• Tyres: Pirelli P7 Sport 28 mm

• Maximum tyre size: 32 mm (nominal width)

* Please note that bike specifications are subject to change without prior notice.
