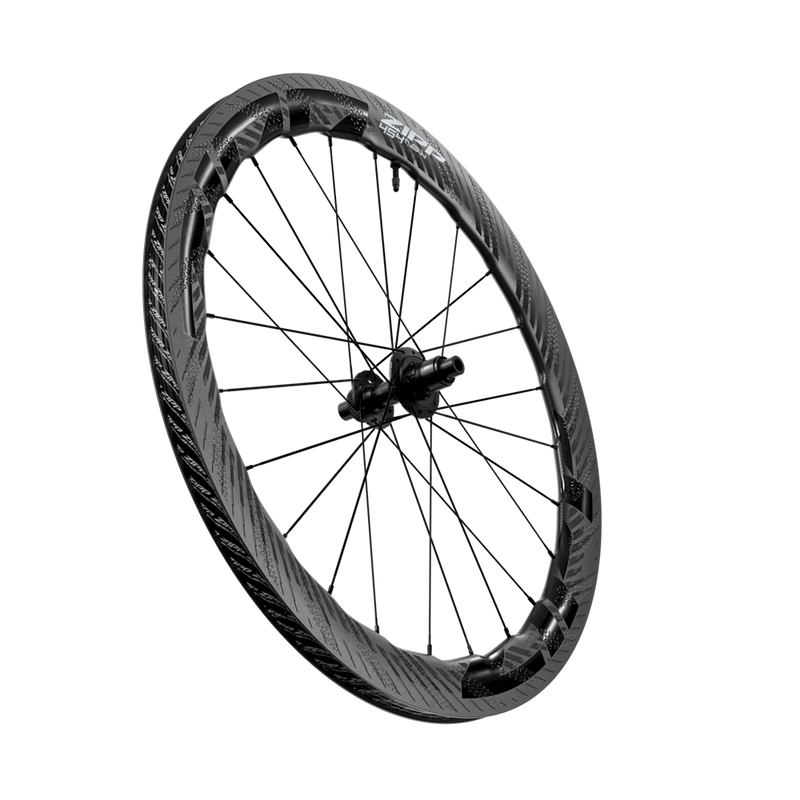

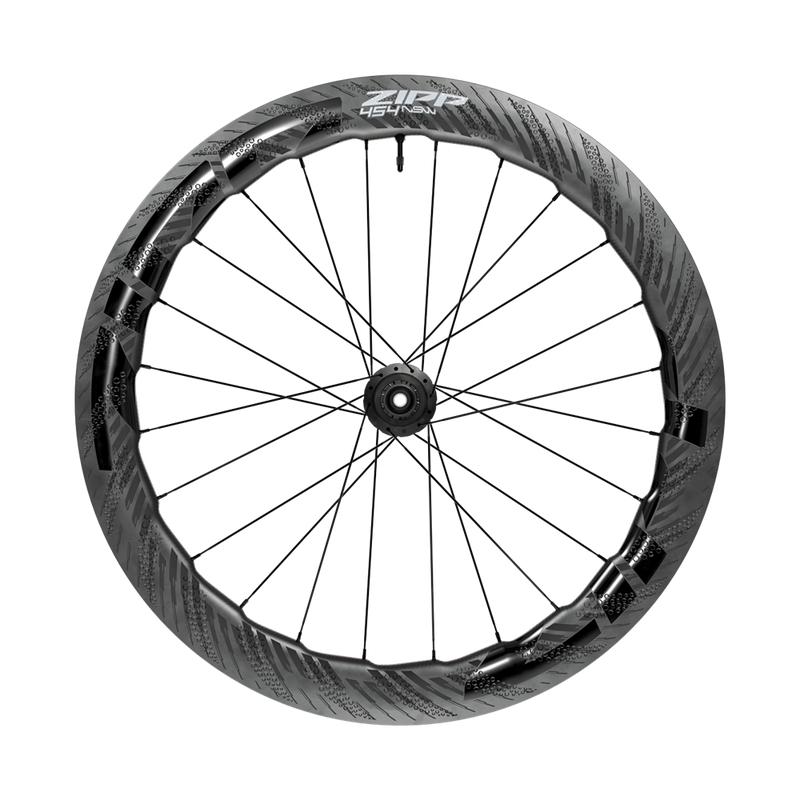

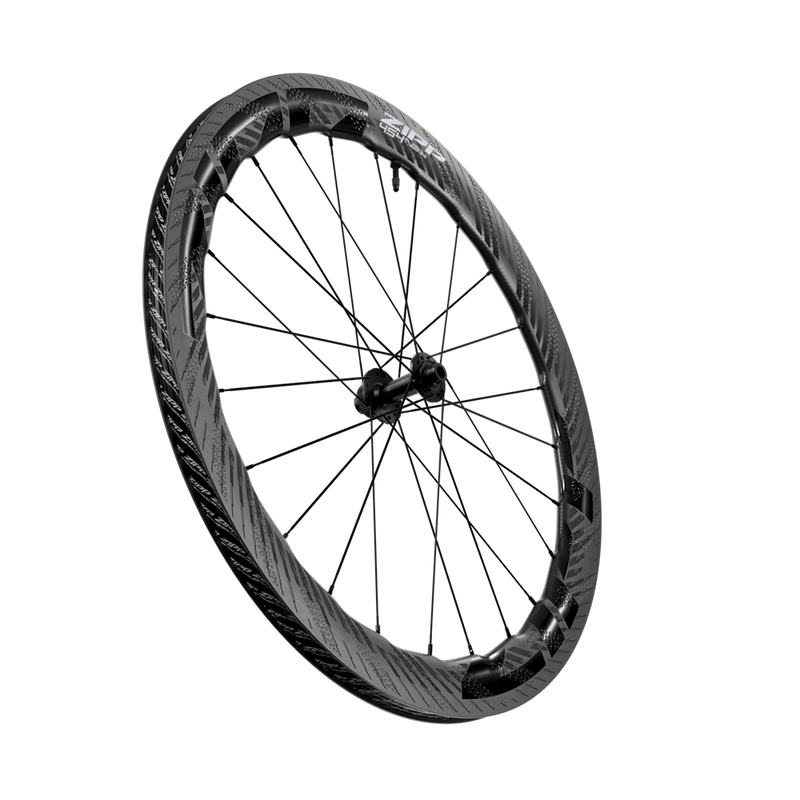

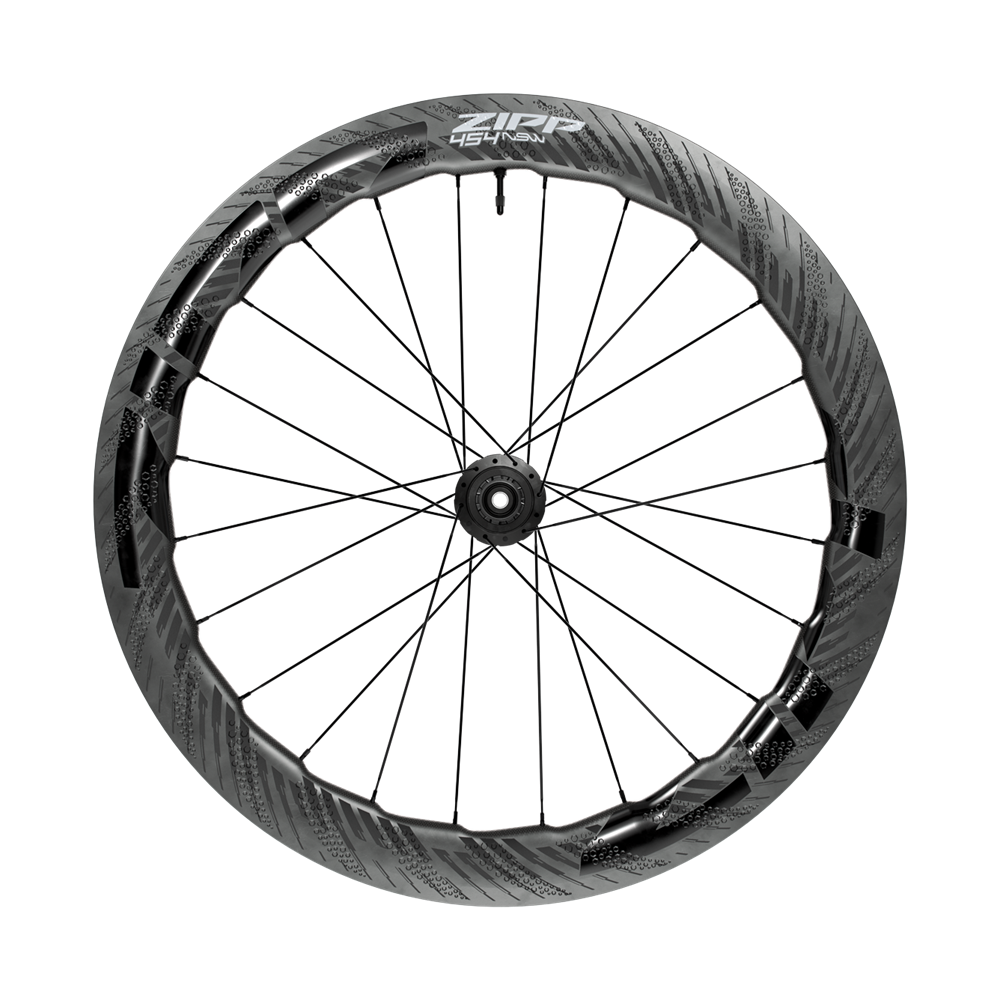

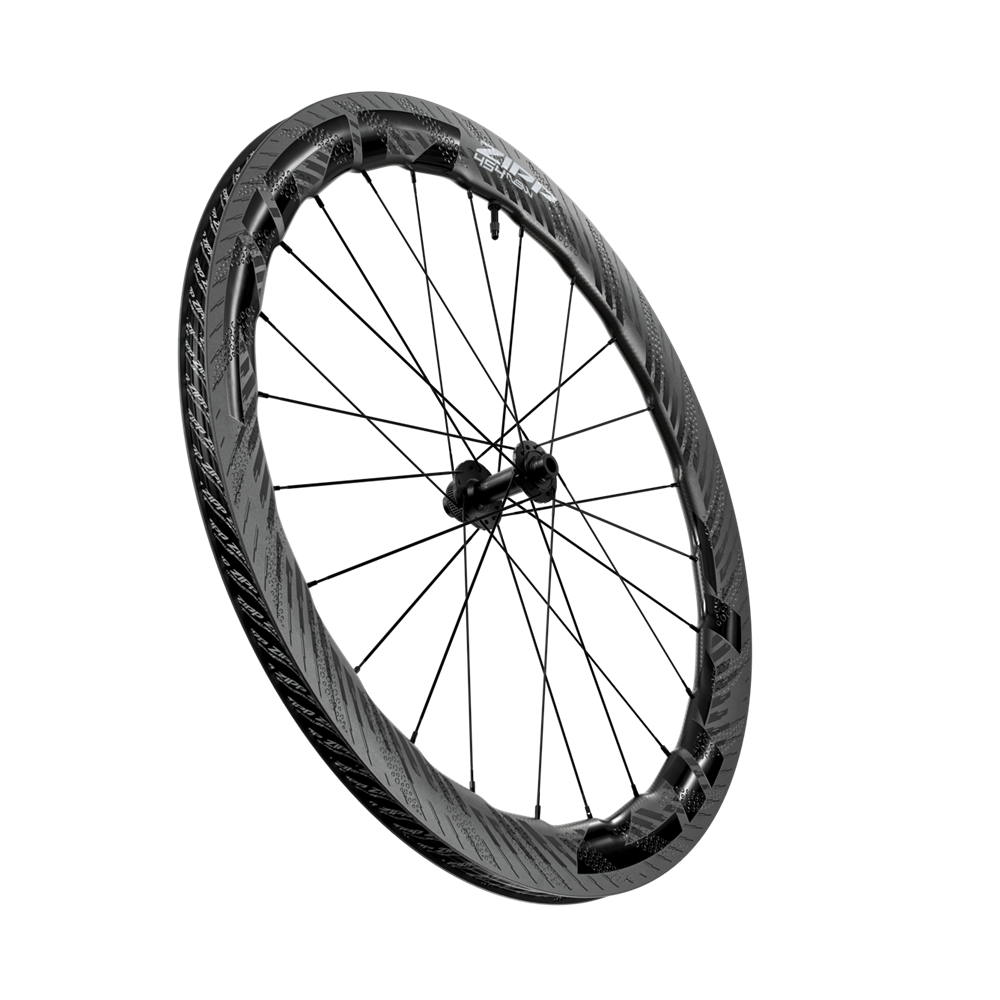

The Zipp 454 NSW Tubeless Disc-Brake Wheelset is engineered for pure speed, combining cutting-edge aerodynamics with lightweight performance. Designed for road racers, triathletes, and time trialists, this wheelset leverages Total System Efficiency (TSE) to conquer wind resistance, gravity, rolling resistance, and vibration losses. The 58mm undulating Sawtooth rim profile enhances crosswind stability, while the hookless, tubeless-ready design ensures a seamless tire interface for reduced weight and improved efficiency. Optimized for 28-35mm tires, the 454 NSW delivers unmatched speed and smoother rides with ZR1 SL hubs featuring ceramic bearings and 66-point engagement.
- Zipp’s fastest mid-depth wheelset – Optimized for road racing and time trials
- Total System Efficiency (TSE) – Reduces rolling resistance and enhances performance
- Sawtooth rim profile (58mm depth) – Superior aerodynamics and crosswind stability
- Hookless, tubeless-ready – Lighter weight and better tire compatibility (28-35mm)
- ZR1 SL hubset with ceramic bearings – 66-point engagement for quick, smooth power transfer
- ABLC HexFin dimple pattern & Hyperfoil nodes – Advanced airflow control
- Lightweight at ~1400g – Competitive weight for mid-depth wheels
- Disc-brake optimized – Center Lock rotor interface for consistent stopping power
- Lifetime Warranty – Built for durability and long-term performance
Wheel Size | 700c |
Rim Construction | Carbon – Hookless, Tubeless-Ready |
Rim Depth | 58mm |
Rim Width (Internal) | 23mm |
Rim Width (External) | 28mm |
Tire Compatibility | Tubeless (28-35mm recommended); tubes optional |
Max Tire Pressure | 73 psi (5.0 bar) |
Brake Type | Disc (Center Lock, includes lockring) |
Spokes | Sapim CX-Ray Black (24 front/rear) |
Nipples | Aluminum, Sapim Secure-Loc anti-rotation |
Hub | ZR1 SL with hybrid ceramic bearings |
Axle Material | Aluminum |
Max System Weight | 250 lbs (114 kg) |
Weight (Set) | ~1400g |
Warranty |
Lifetime |
Front Wheel Specifics:
- Axle Standard | 12x100mm thru-axle |
- Spoke Pattern | 2-cross |
- Spoke Length | Drive Side: 254mm / Non-Drive Side: 256mm |
Rear Wheel Specifics:
- Axle Standard | 12x142mm thru-axle |
- Driver Body | SRAM XDR (Shimano/SRAM compatible; Campagnolo sold separately)
- Spoke Pattern | 2-cross |
- Spoke Length | Drive Side: 252mm / Non-Drive Side: 256mm |
