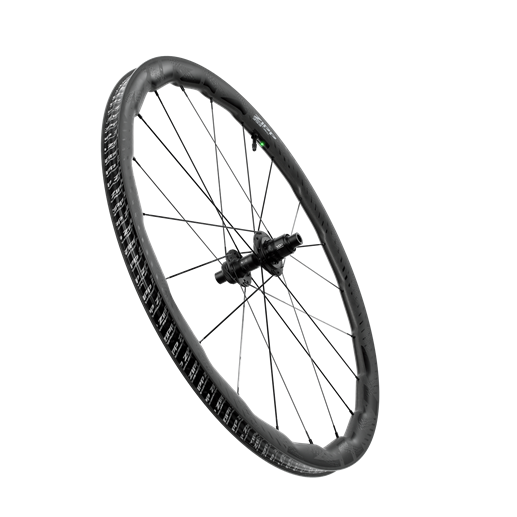

The Zipp 353 NSW Tubeless Disc-Brake Wheelset redefines endurance performance with cutting-edge technology for the modern road racer. Featuring Zipp’s first SRAM AXS-connected wheelset, it integrates a built-in tire pressure sensor for real-time monitoring via the AXS ecosystem—no external devices needed. The 35/40mm undulating Sawtooth rim profile delivers aero efficiency, crosswind stability, and climbing prowess, while the 25mm internal width optimizes 30mm tires for reduced rolling resistance. Built with a 16% stronger carbon layup, ceramic-bearing ZR1 SL hubs, and Total System Efficiency (TSE), this wheelset excels on long rides, mountain climbs, and spirited descents. Not approved for gravel use.
- AXS Smart Sensing – Integrated tire pressure monitoring (via SRAM AXS app) for real-time optimization.
- Lightweight & Aero – 35/40mm deep Sawtooth rims with ABLC HexFin dimples for all-condition speed.
- Endurance-Ready – 25mm internal width optimized for 30mm tubeless tires (29–35mm compatible).
- ZR1 SL Hubset – Ceramic bearings, 66-point engagement, and 30g lighter than previous NSW hubs.
- Total System Efficiency (TSE) – Minimizes rolling resistance, vibration, and weight (~1,350g/set).
- Durability Upgrades – 16% stronger rim impact strength vs. prior models.
- Disc-Brake Specific – Center Lock rotor interface (lockring included).
- Hookless Tubeless – Seamless tire interface for weight savings and reliability.
- Lifetime Warranty – Confidence in every ride.
- Model: WH-353-NSW-B1
Wheel Size | 700c |
Rim Construction | Carbon, hookless tubeless-ready |
Rim Depth | 35/40mm (undulating Sawtooth profile) |
Rim Width (Internal) | 25mm |
Rim Width (External) | 30mm |
Tire Compatibility | Tubeless (29–35mm recommended); tubes optional |
Max Pressure | 73 psi (5.0 bar) |
Brake Type | Disc (Center Lock, includes lockring) |
Spokes | Sapim CX-Ray Black (20 front/rear) |
Nipples | Aluminum, Sapim Secure-Loc |
Hub | ZR1 SL with ceramic bearings (66 POE) |
Axle Material | Aluminum |
System Weight Limit | 250 lbs (114 kg) |
Rim Finish | UD fiber, ImPress graphics |

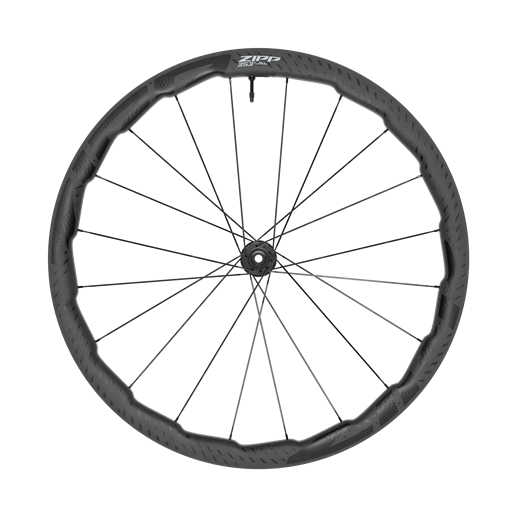

Front Wheel:
-
Axle Standard - 12x100mm thru-axle
- Spoke Pattern - 2-cross
- Spoke Length- Drive Side: 276mm / Non-Drive: 278mm

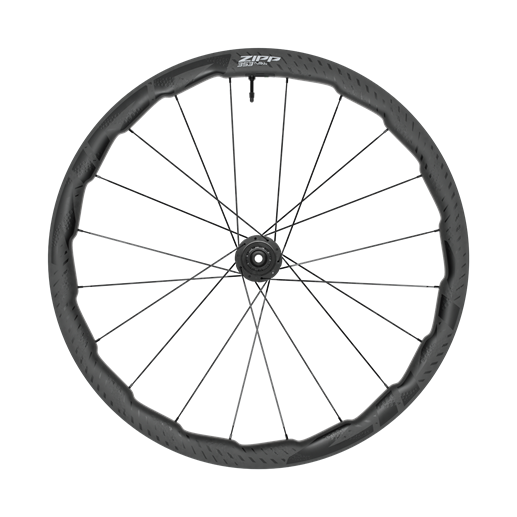

Rear Wheel:
-
Axle Standard - 12x142mm thru-axle
-
Driver Body - SRAM XDR (Shimano/SRAM compatible; Campagnolo sold separately)
-
Spoke Pattern - 2-cross
- Spoke Length - Drive Side: 274mm / Non-Drive: 276mm
