- FEATURES
- SPECIFICATIONS
- TECHNOLOGY
- GEOMETRY

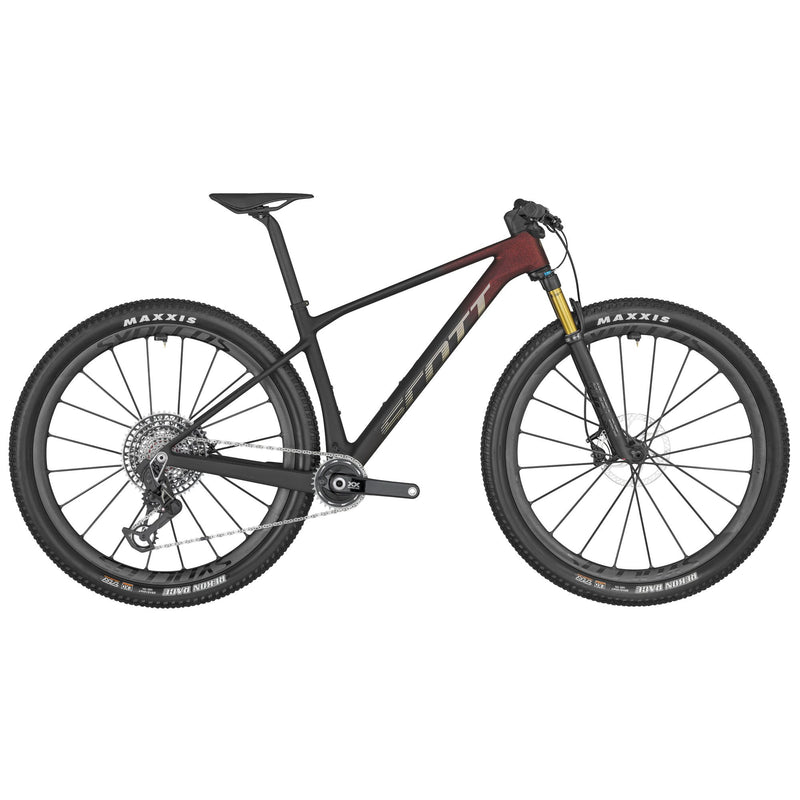

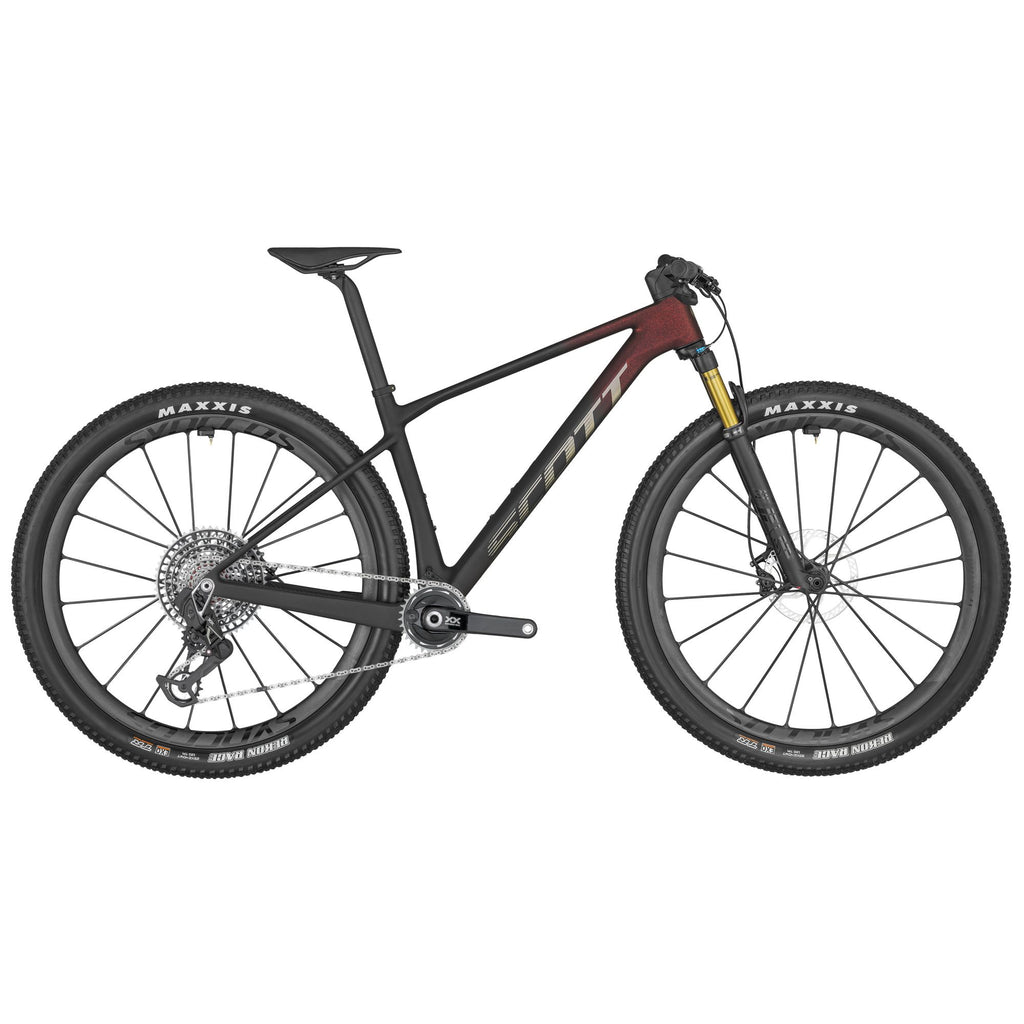

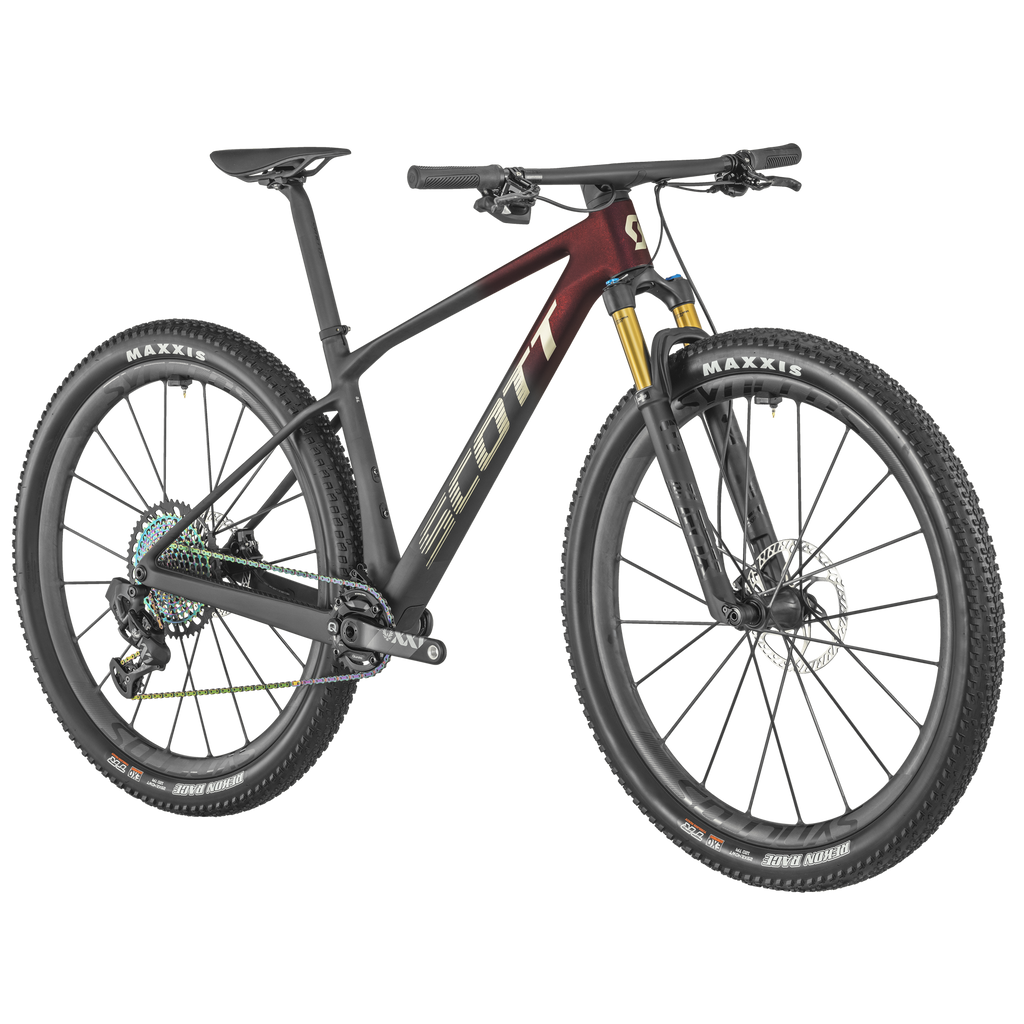

- Scale Carbon HMX SL Frame
- FOX 32SC Float Factory 100mm Fork
- RideLoc 2 / 3-Position Remote
- SRAM XX SL AXS TR, PWR Meter
- Trickstuff Piccola Disc Brakes
- Syncros Silverton SL2 CF Wheels
- Maxxis Rekon Race Foldable Tires
- Syncros Carbon Parts
FRAME
- Scale Carbon HMX SL
- Adjustable head angle / Syncros Cable Integration System
- Advanced Shock & Standing Damping System
- BB92 / UDH Interface / 12x148mm with 55mm Chainline
FORK
- FOX 32 SC Float Factory Air / Kashima FIT4
- 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset
- Tapered steerer / Lockout / Reb. Adj.
- 100mm travel
REAR SHOCK
- RockShox NUDE 5 RL3 Trunnion
- SCOTT custom w. travel / geo adj.
- 3 modes: Lockout-Traction Control-Descend
- Debon Air / Reb. Adj. / Travel 120-80-Lockout / T165X45mm
REMOTE SYSTEM
- SCOTT RideLoc 2 Technology
- 3 Suspension modes
REAR DERAILLEUR
- SRAM XX SL Eagle AXS Transmission 12 Speed
- Wireless Electronic Shift System
SHIFTERS
- SRAM AXS Rocker Controller
CRANKSET
- SRAM XX SL Eagle AXS Transmission
- Carbon crankarm / Spider Power Meter
- DUB / 55mm CL / 32T
BB-SET
- SRAM DUB PF 92 MTB / shell 41x92mm
CHAIN
- SRAM CN XX SL Eagle Transmission
CASSETTE
- SRAM XX SL Eagle XS 1299 Transmission 10-52
BRAKES
- Trickstuff Piccola Carbon Disc
ROTOR
- Trickstuff Dächle Ultra-Light / 180/F and 160/R
HANDLEBAR
- Syncros Fraser iC SL XC Carbon
- -12° rise / back sweep 8° / 740mm
- Syncros Performance XC lock-on grips
SEATPOST
- Syncros Duncan SL Carbon
- 10mm offset / 31.6x400mm
SEAT
- Syncros Belcarra SL Regular 1.0
- Carbon rails
HEADSET
- Syncros - Acros Angle adjust & Cable Routing HS System
- Stainless
- +-0.6° head angle adjustment
- ZS56/28.6 – ZS56/40 MTB
WHEELSET
- Syncros Silverton SL2-30 CL full Carbon
- F: 15x110mm
- R: 12x148mm / 30mm Tubeless ready rim
- DT Swiss 240 Ratchet EXP 36 / XD Driver
- SRAM TyreWiz / Syncros SL Axle w/Removable Lever
- With 6mm Allen
- T30 and T25 Tools
FRONT TIRE
- Maxxis Rekon Race / 29x2.4" / 120TPI
- Foldable Bead
- Tubeless Ready / EXO
REAR TIRE
- Maxxis Rekon Race / 29x2.4" / 120TPI
- Foldable Bead
- Tubeless Ready / EXO
EXTRAS
- SRAM AXS Powerpack
- SRAM TyreWiz
- Trickstuff Bleed Kit
APPROX WEIGHTS IN KG
- 8.9 (Tubeless setup)
APPROX WEIGHTS IN LBS
- 19.62 (Tubeless setup)
MAX. SYSTEM WEIGHT
- 128kg
- The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Adjustable Head Angle
With the new Scale RC, you can adjust the head angle by 0.6 degrees slacker or steeper. This can be done without cutting cables or bleeding brakes. All you must do is disassemble the bar, rotate the headset cups 180 degrees, and reassemble.

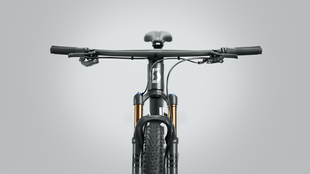

Syncros Fraser iC Combo
The New Scale features the Fraser iC combo from Syncros. Integrating the cables presents a number of unique problems and the Fraser was designed in part to address this. Syncros’s designers worked on the shape to allow the cables to flow under the bar and around the sides of the stem before disappearing into the headset with integrated plastic parts to keep it clean and efficient. This avoids bends or kinks in the cables and provides a minimalist front end. All our bars and stems feature multiple options for computer, light and camera mounts both on top or under the bar.
Design
The new Scale’s design was uncompromisingly subjected to our pursuit of perfection and drive for pure efficiency, strictly following the guiding principle of “Form follows Function”. In our search for the ultimate, yet most simple construction, we’ve centered the design around the essentials by balancing the bike’s DNA in order to create a whole new breed of XC bike. The result is a straightforward and clear design, which provides the all-new Scale with its distinctive character and aggressive look: a bike that proudly shows off its characteristics.
Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).

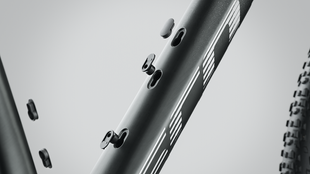

Polymer Inserts
With the all-new Scale RC we constantly reduced the amount of metal inserts wherever possible. Instead, lighter polymer versions were incorporated and can be found as the bottle cage inserts on the HMX-SL frames. These can be plugged completely, sitting flush on the frame due to a smart and flexible clipping mechanism. Being able to set up the plugs and mounts needed provides riders with maximum flexibility and further eliminates potential vulnerable points as these are easily replaceable in the event of a damaged thread. Plugs and inserts are easy to set up without the need for additional tools and further contribute to the overall clean design.
Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
