- Scale Rigid HMF Fork
- Scale Carbon HMF Frame
- SRAM S1000 AXS Transmission 12 Speed
- Shimano Deore Disc Brakes
- Syncros X-28TR Rims
- Maxxis Aspen Foldable Tires
- Syncros Parts

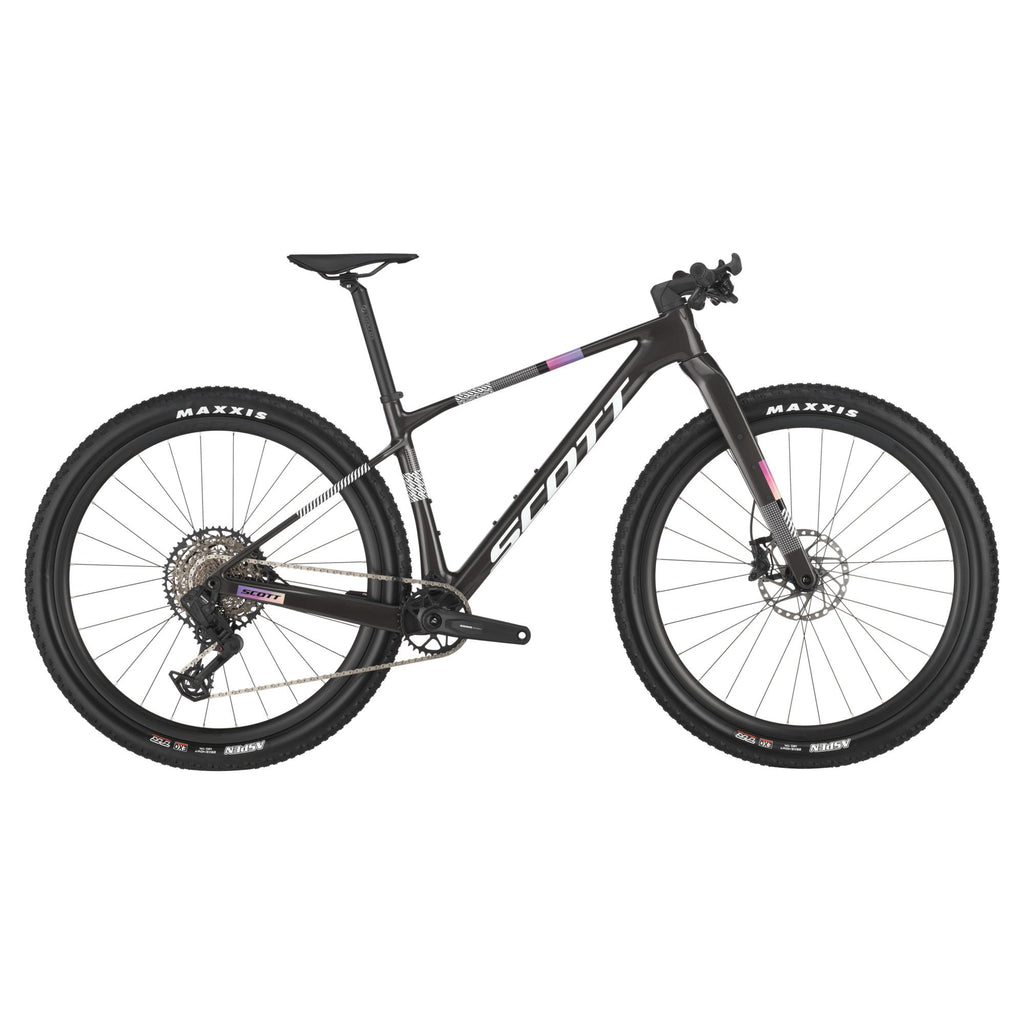

- Model: 423542
-
Frame: Scale Carbon HMF Adjustable head angle / Syncros Cable Integration System Advanced Shock & Standing Damping System BB92 / UDH Interface / 12x148mm with 55mm Chainline
-
Fork: Scale Rigid HMF Postmount Disc Standard Tapered Carbon steerer
-
Rear Derailleur: SRAM S1000 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
- Shifters: SRAM AXS Pod Controller
-
Crankset: SRAM S1000 Eagle Transmission DUB / 55mm CL / 34T
-
Chainguide: SCOTT custom
-
BB-Set: SRAM DUB PF 92 MTB Wide/shell 41x92mm
-
Chain: SRAM CN GX Eagle Transmission
-
Cassette: SRAM Eagle XS 1270 Transmission 10-52
-
Brakes: Shimano Deore M6100 Disc
-
Rotor: Shimano SM-RT64 CL / 180/F and 160/R
-
Handlebar: Syncros Fraser 2.0 XC Alloy 6061 D.B. Flat Bar / 8° / 740mm Syncros Performance XC lock-on grips
-
H'stem: Syncros XC 2.0 Syncros Cable Integration System -12° rise / 6061 Alloy / 31.8mm / 1 1/8"
-
Seatpost: Syncros Duncan 2.0 / 10mm offset 31.6x400mm
-
Seat: Syncros Belcarra Regular 2.0 CRMO rails
-
Headset: Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
-
Hub (Front): Formula CL-811 / 15x110mm
-
Hub (Rear): Formula CL-3248 / 12x148mm
-
Spokes: Stainless Black 15G / 1.8mm
-
Rims: Syncros X-28 / 28H / Tubeless ready
-
Front Tire: Maxxis Aspen / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
-
Rear Tire: Maxxis Aspen / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
-
Extras: SRAM AXS Powerpack
-
Accessories: Spirgrips+ Inner Bar ends
-
Approx weight in KG: 10.7 (Tubeless setup)
-
Approx weight in LBS: 23.59 (Tubeless setup)
- Max. System Weight: 120kg- The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Monocoque Construction - The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required, therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
Service Door - A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regard to cable routing.

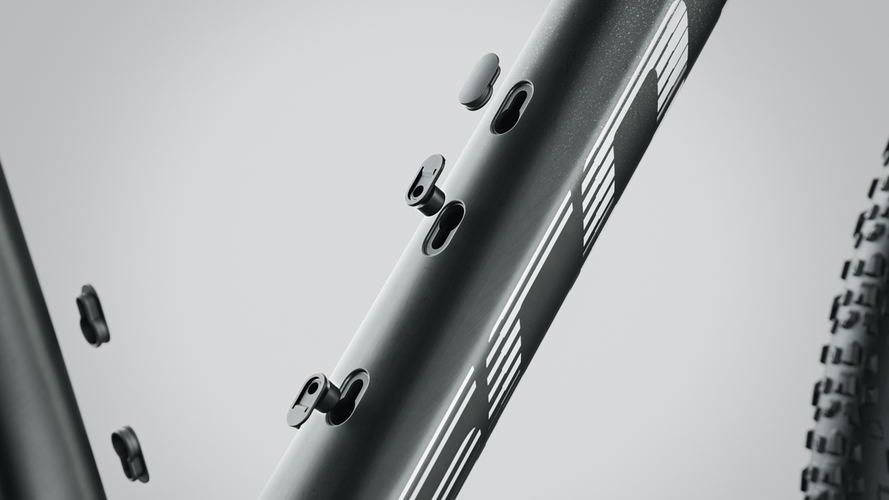

Polymer Inserts - With the all-new Scale RC, we constantly reduced the amount of metal inserts wherever possible. Instead, lighter polymer versions were incorporated and can be found as the bottle cage inserts on the HMX-SL frames. These can be plugged completely, sitting flush on the frame, due to a smart and flexible clipping mechanism. Being able to set up the plugs and mounts needed provides riders with maximum flexibility and further eliminates potential vulnerable points, as these are easily replaceable in the event of a damaged thread. Plugs and inserts are easy to set up without the need for additional tools and further contribute to the overall clean design.
Design - The new Scale’s design was uncompromisingly subjected to our pursuit of perfection and drive for pure efficiency, strictly following the guiding principle of “Form follows Function”. In our search for the ultimate, yet most simple construction, we’ve centered the design around the essentials by balancing the bike’s DNA in order to create a whole new breed of XC bike. The result is a straightforward and clear design, which provides the all-new Scale with its distinctive character and aggressive look: a bike that proudly shows off its characteristics.
Hollow Dropout Construction - The dropout feature has an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the head flush with the surface. This enables the lightest possible construction approach and a clean-looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
Adjustable Head Angle - With the new Scale RC, you can adjust the head angle by 0.6 degrees slacker or steeper. This can be done without cutting cables or bleeding brakes. All you must do is disassemble the bar, rotate the headset cups 180 degrees, and reassemble.
